5.3 Threading the needle thread

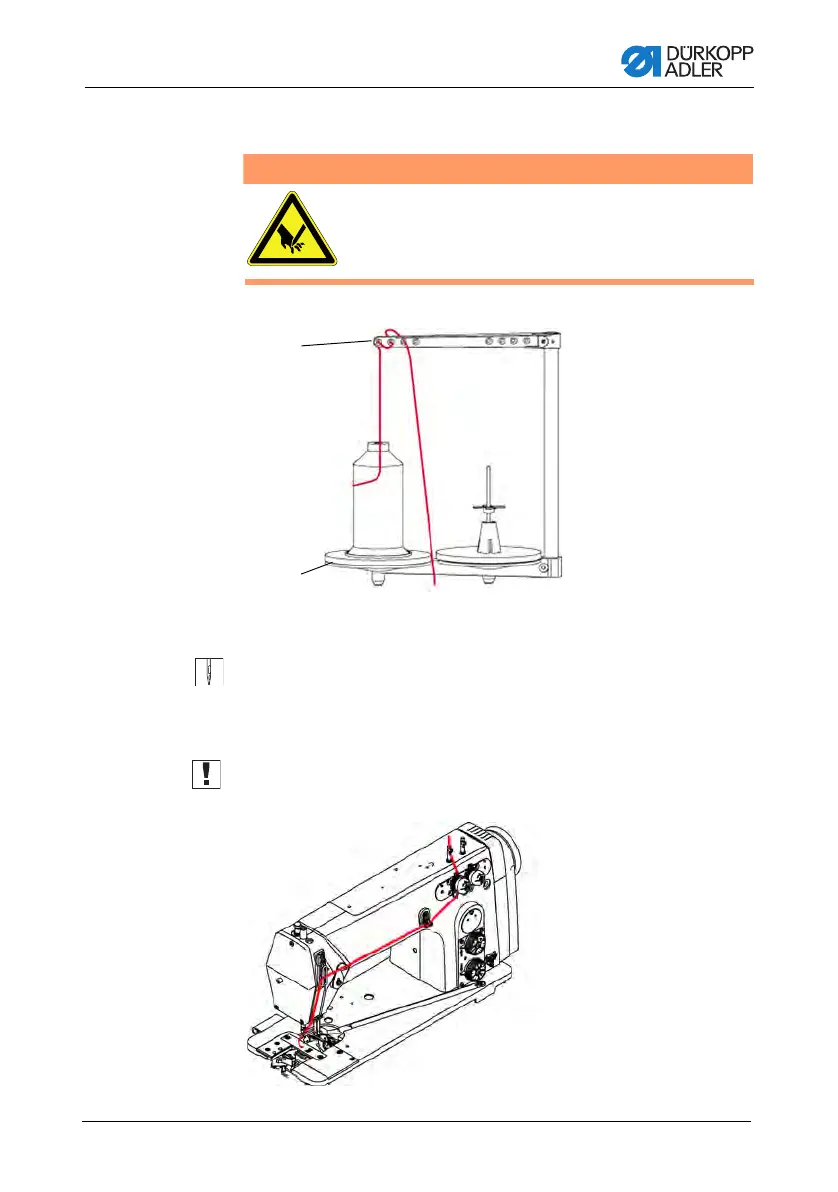

Fig. 4: Fit the needle thread reel.
1. Fit the thread reel on the left plate of the reel stand (2).
2. Insert the thread from the back to the front through the
first hole and then in a wavelike manner through the next
two holes of the guide on the unwinding bracket (1).
Important: Th
e unwinding bracket (1) must be parallel
to the reel stand (2).
Fig. 5: Threading procedure for needle thread - General overview
Risk of injury from the needle point
and moving parts.
Switch off the sewing machine before
inserting the thread.
WARNING
(1) - Guide on unwinding bracket (2) - Reel stand
