6.8 Fitting the controller

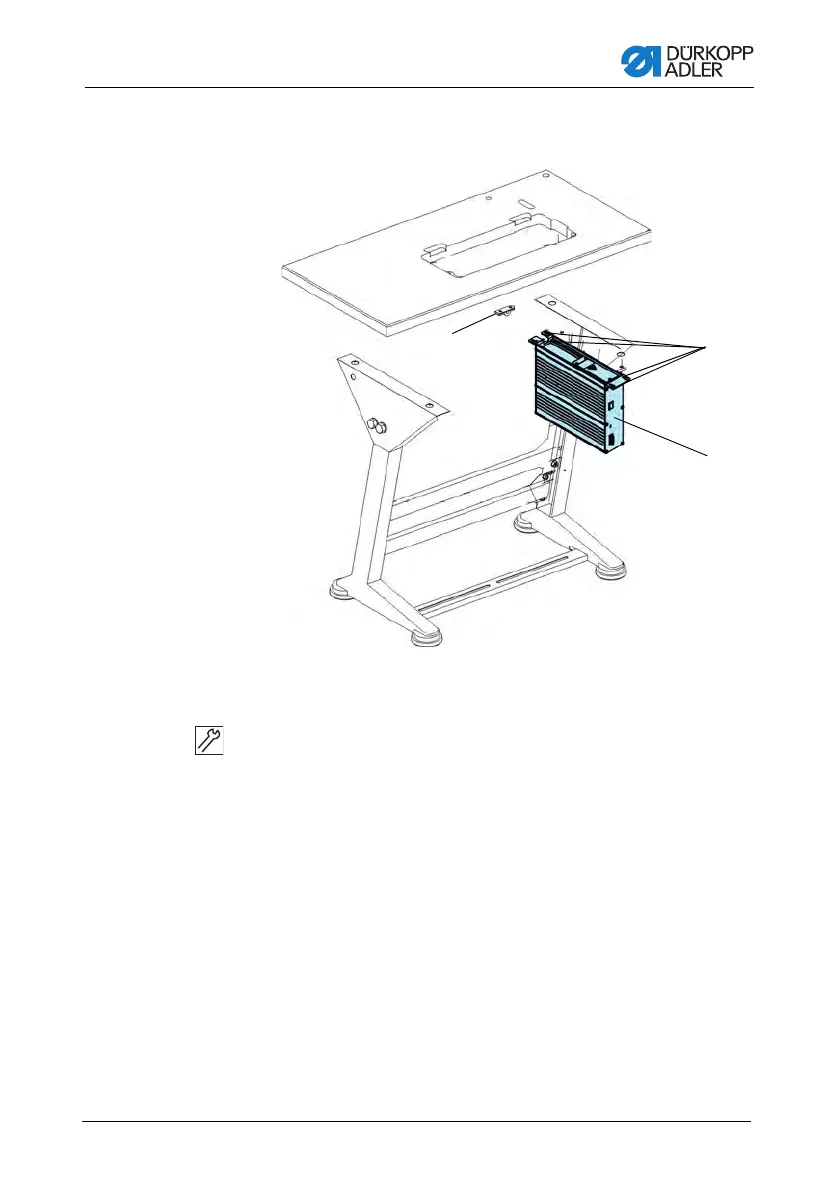

Fig. 39: Fitting the controller
1. Screw the control (3) onto the 4 screw holders (2) under
the table plate.
2. Clamp the power cable of the control into the strain relief
me
chanism (1).
3. Screw the strain relief mechanism (1) under the table plate.
(1) - Strain relief (2) - Screw holder
(3) - Control
