DURKOPP ADLER 580 - Transversal Motion of Fabric Support Plate

Correction
–

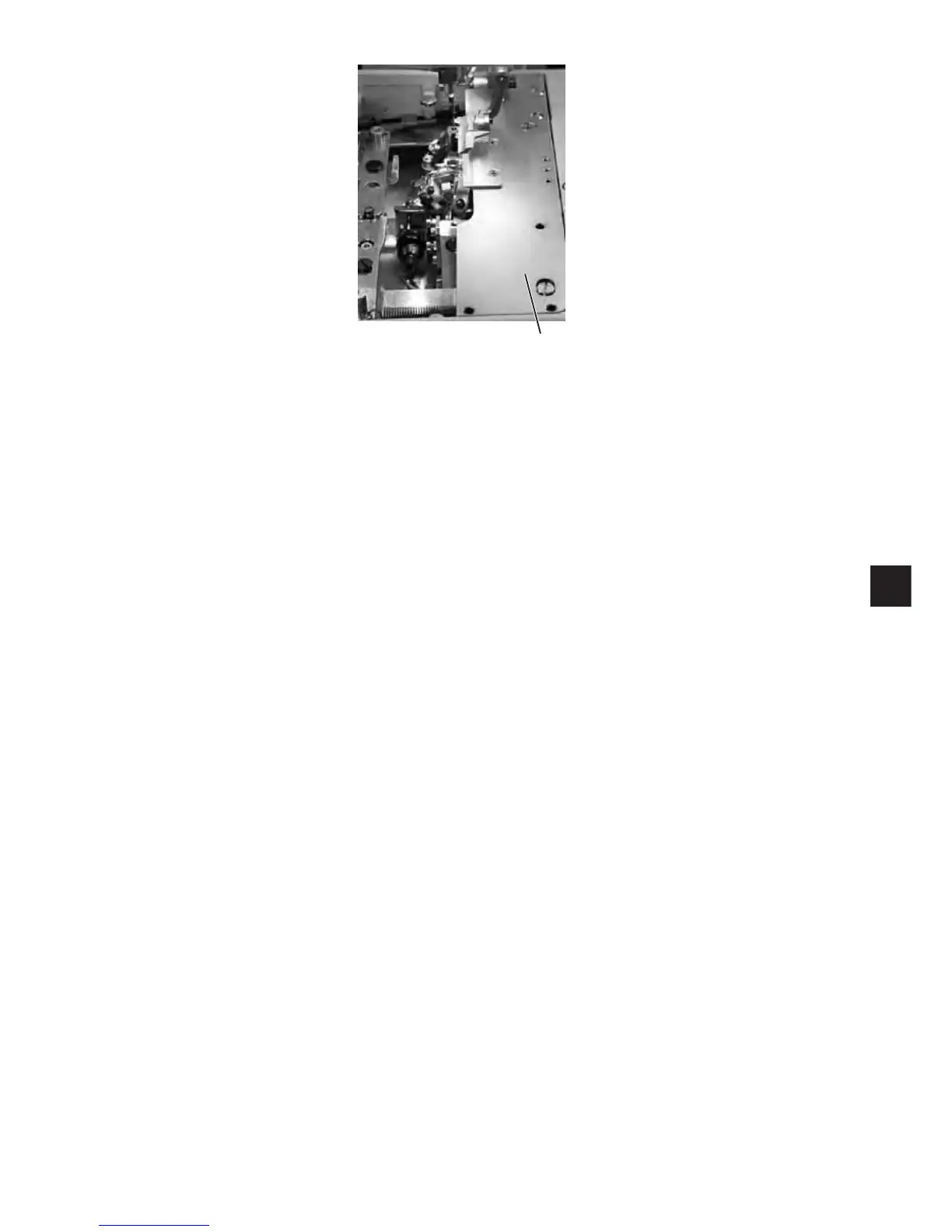

Remove the clamping plates 4.
–
Switch the machine on
The machine runs to its initial position.
–
Switch the machine off.
–
Loosen the clamping screw in the (timing) gear with
the Allen key 3.
–
Turn the looper turret in such a way that it can be locked with pin 1.
–
Tighten the clamping screw with the Allen key 3.
