21. Thread thread take-up spring
Caution: Danger of injury!
Turnthemainswitchoff.
Adjust the thread take-up spring only with the machine switched off.
Standard checking

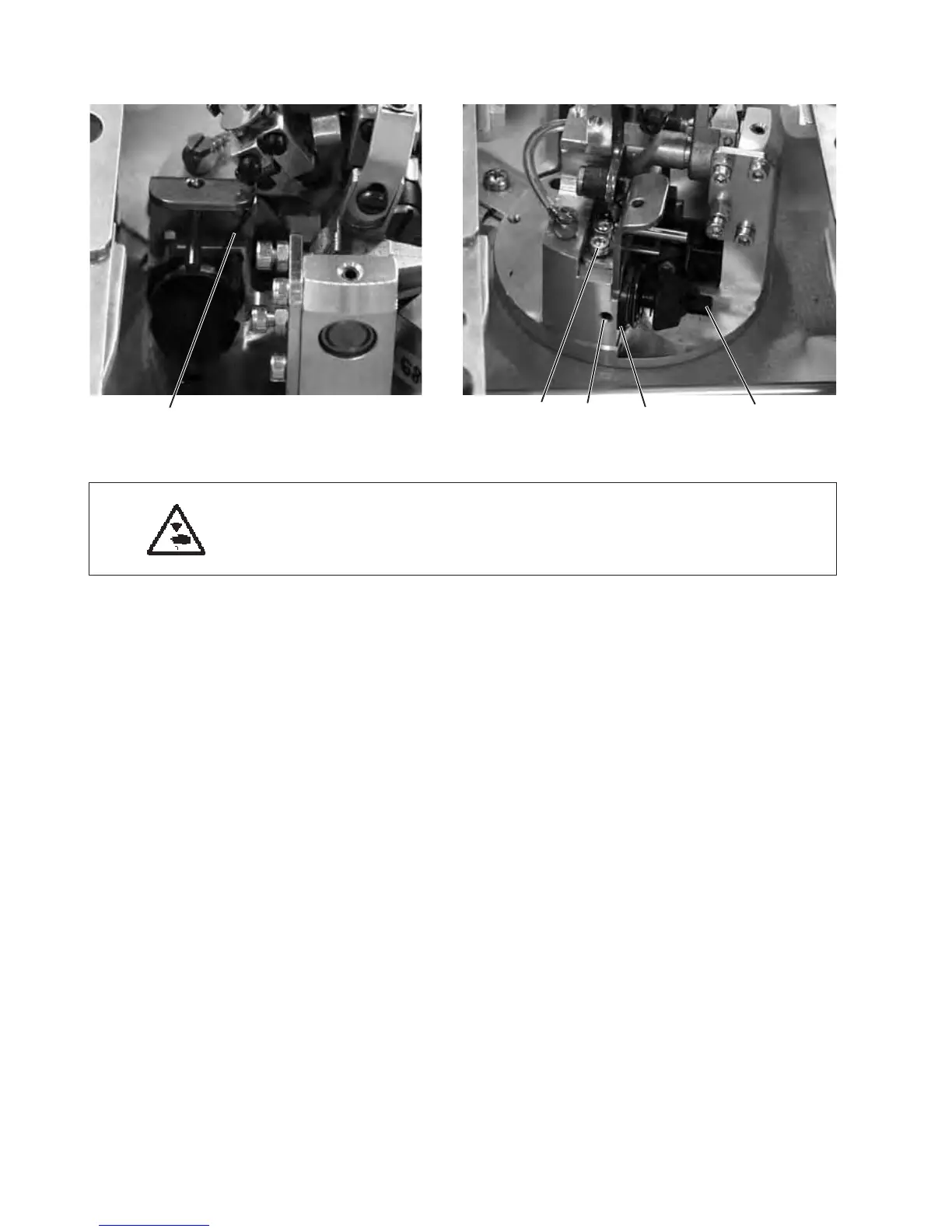

The thread take-up spring 1 must hold the looper thread tensioned until
the needle with the needle thread has accurately penetrated the
triangle formed by the spreader.
–
Insert and clamp the material.
–
Turn the machine manually and check whether the thread take-up
spring tightens the looper thread firmly and long enough.
Correction of the spring travel
–
Loosen screw 4.
–
Adjust the stop disc 3.
Disc to the right = longer spring travel
Disc to the left = shorter spring travel
–
Tighten screw 4.
Correction of the spring tension
–
Loosen screw 5.
–
Adjust the tension bolt 2.
Bolt to the right = higher tension
Bolt to the left = lower tension
–
Tighten screw 5.
58
1 54 3 2
