4. Aligning the looper turret
Caution: Danger of injury!
Turnthemainswitchoff.
Align the looper turret only with the machine switched off.
Note
Please observe the necessary program setting as described in
chapter 1.1.

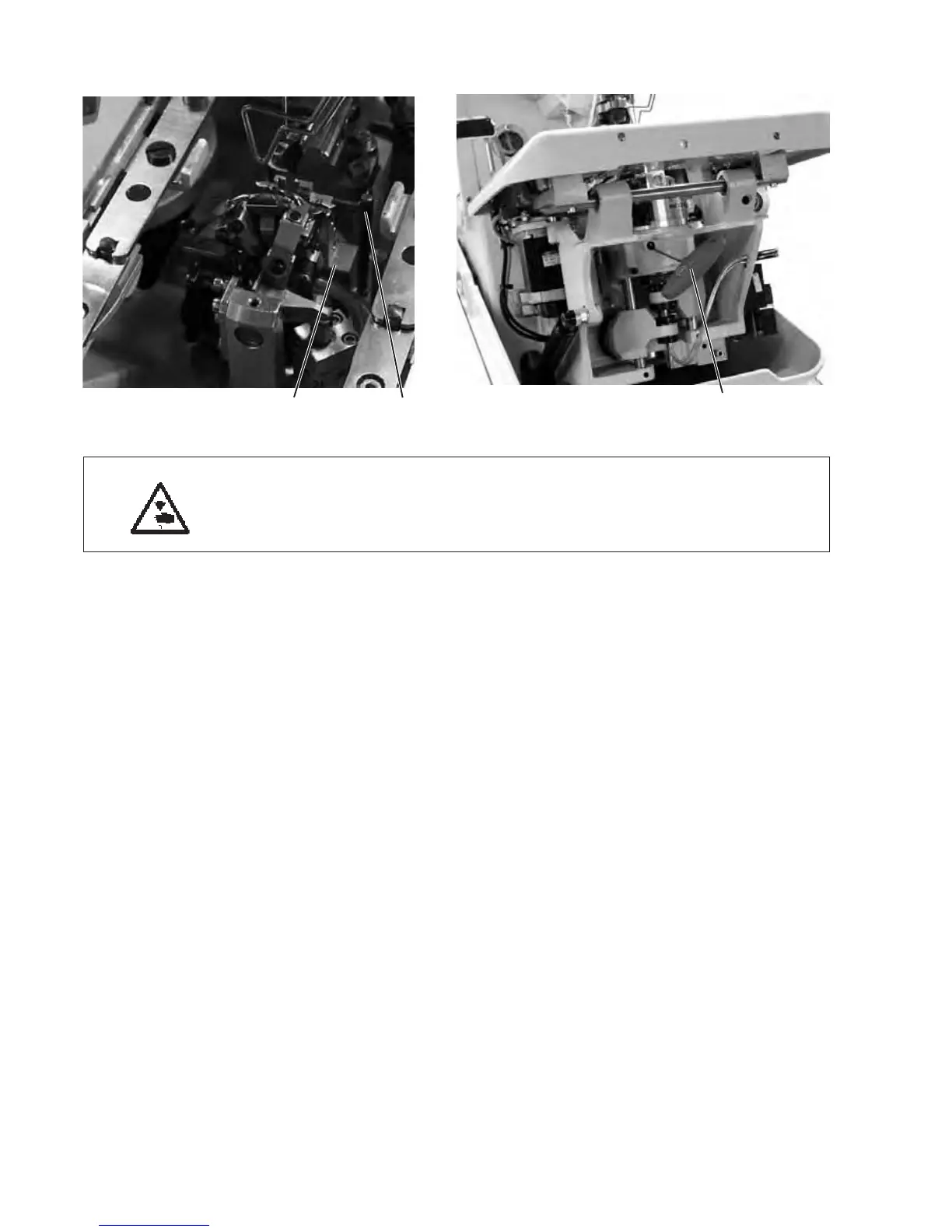

Standard checking
When the machine has reached its initial position after switching on
the main switch, it must be possible to lock the looper turret 2 with the
locking pin 1.
–
Switch the machine on
The machine and the fabric support plate run to their initial
position.
–
Switch the machine off.
–
Check whether the looper turret 2 can be locked with locking pin 1.
12
21
3
