Correction
–
Press key “F” at the control panel and switch the machine on.
–
Enter code “2548”.
–
Press key “OK”.
The control switches to the technicial level.
In this mode the step motors are dead.
–
Select menu “Test functions”.
–
Press key “OK”.
–
Select menu “Sewing proc.”.
–
Press key “OK”.
–
Select menu “Start ref.”.
–
Press key “OK”
The machine runs to its initial position.
Caution: Danger of injury!
Exercise utmost caution when making adjustments with the machine
running.
–

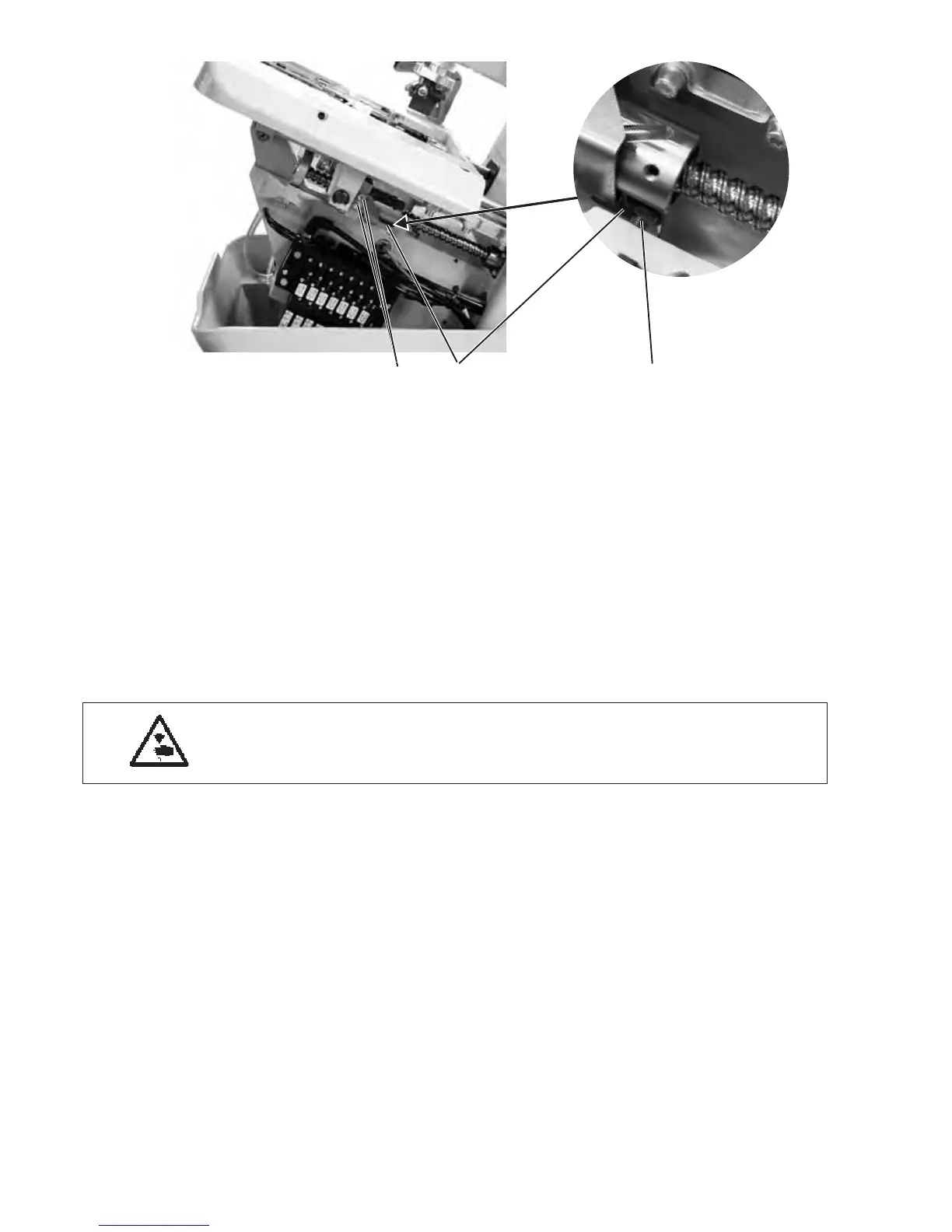

Shift the fabric support plate manually to the desired dimension.
–
Loosen the screws 5.
–
Set the switch sheet 4 to the switch actuation point.
When shifting the switch sheet 4 the switching signals are
indicated on the control panel (input r2).
–
Tighten the screws 5.
–
Switch the machine off and on again.
–
Let the machine move to its initial position and check the
dimension.
Correction of the distance betw een reference sw itch and sw itch
sheet.
–
Loosen the nut.
–
Screw the reference switch 6 out or in so that the distance between
reference switch 6 and switch sheet 4 does not exceed 0.5 mm.
–
Tighten the nut.
20
54 6
