Programming

398 Service Instructions 755 A/756 A - 00.0 - 02/2019

Test transport clamp

 The display switches to Test transport clamp.

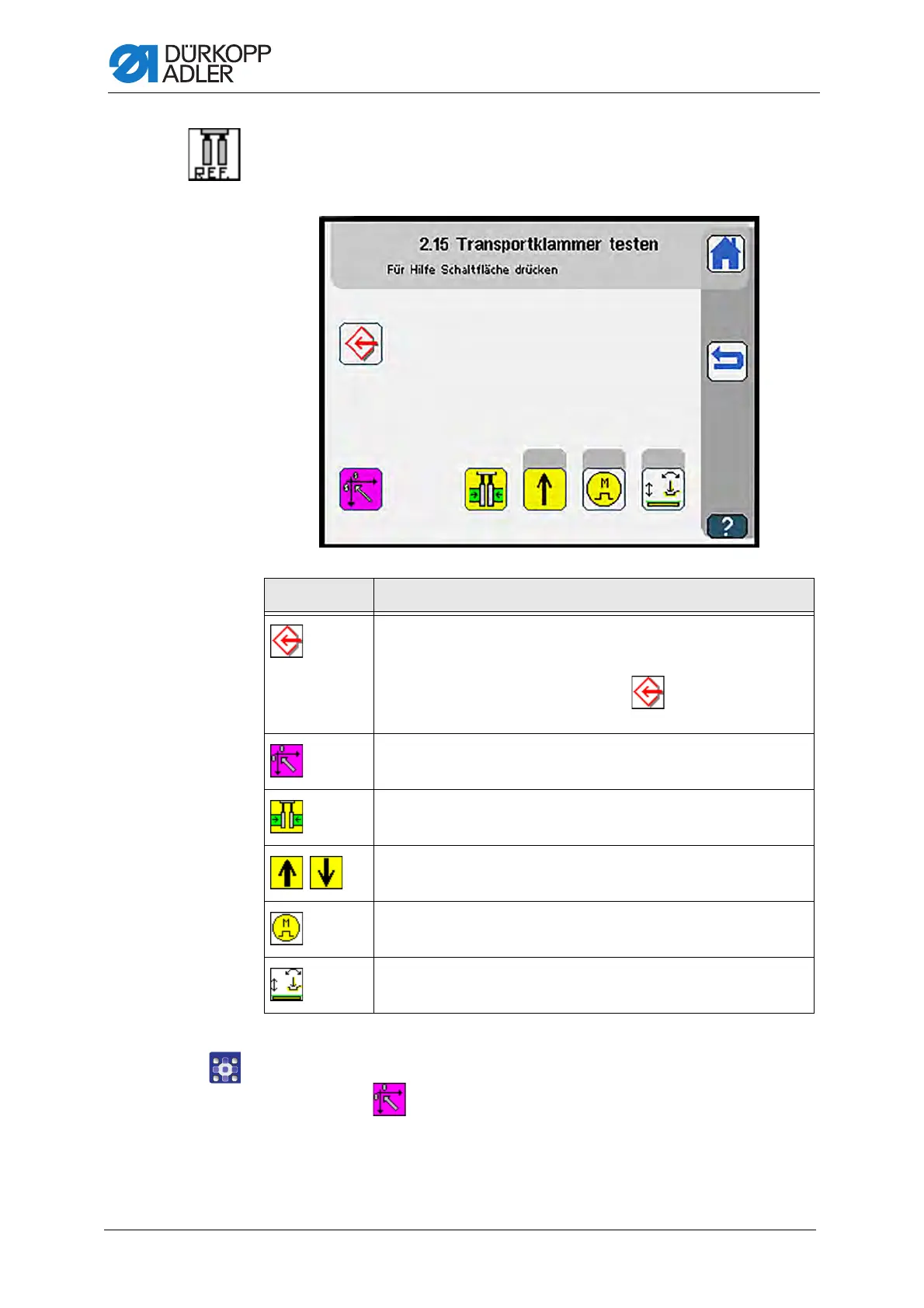

Fig. 364: Test transport clamp

To test the transport clamp:

1. Press the button.

 Reference run is carried out.

2. Press the desired button.

Symbol Meaning

Adjust transport clamp  p. 399

• also used for direct troubleshooting in case of error codes

2501, 2505, 2601 and 2605

If error codes are displayed, press the button immediately to

correct the values

Reference

Transport clamp quick adjustment  p. 335

Lift/lower transport clamp

Switch step motor current-free

Switch pick-up folder pressureless

Default Chapter3
