Programming
Service Instructions 755 A/756 A - 00.0 - 02/2019 399
Adjust transport clamp
 The display switches to Adjust transport clamp.

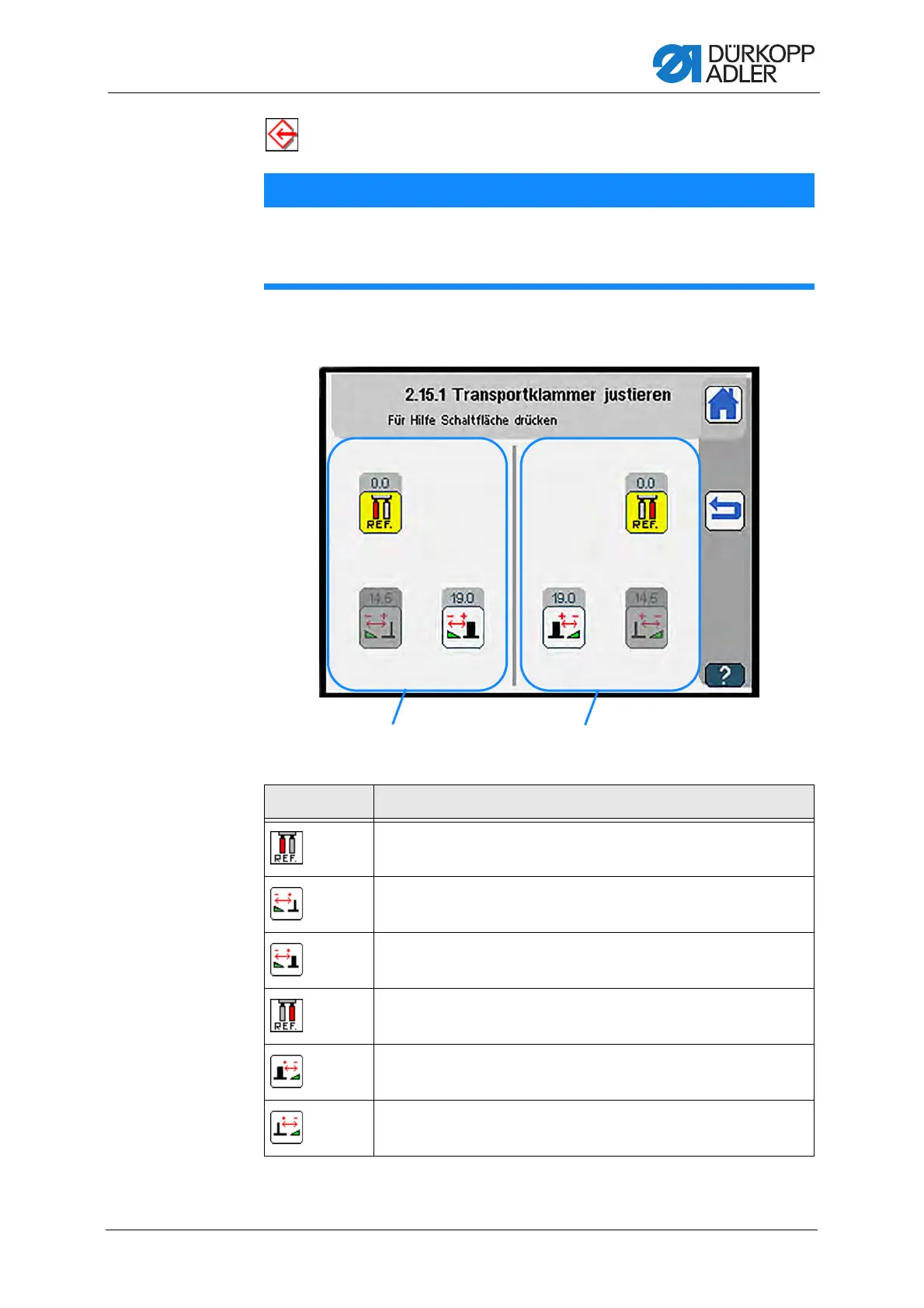

Fig. 365: Adjust transport clamp
NOTICE
Property damage may occur!
Damage to the transport clamp from incorrect setting.
Jamming of the step motor.
Symbol Meaning
Set correction value left clamp
• -10.0 mm - 10.0 mm
Set distance outer position left clamp, single pipe left
• 0.0 mm - 40.0 mm
Set distance inner position left clamp, double pipe
0.0 mm - 40.0 mm
Set correction value right clamp
• -10.0 mm - 10.0 mm
Set distance inner position right clamp, double pipe
• -0.0 mm - 40.0 mm
Set distance outer position right clamp, single pipe right
• 0.0 mm - 40.0 mm
left transport clamp
page
right transport clamp
page
