Preset Edit Menu
PatchCords

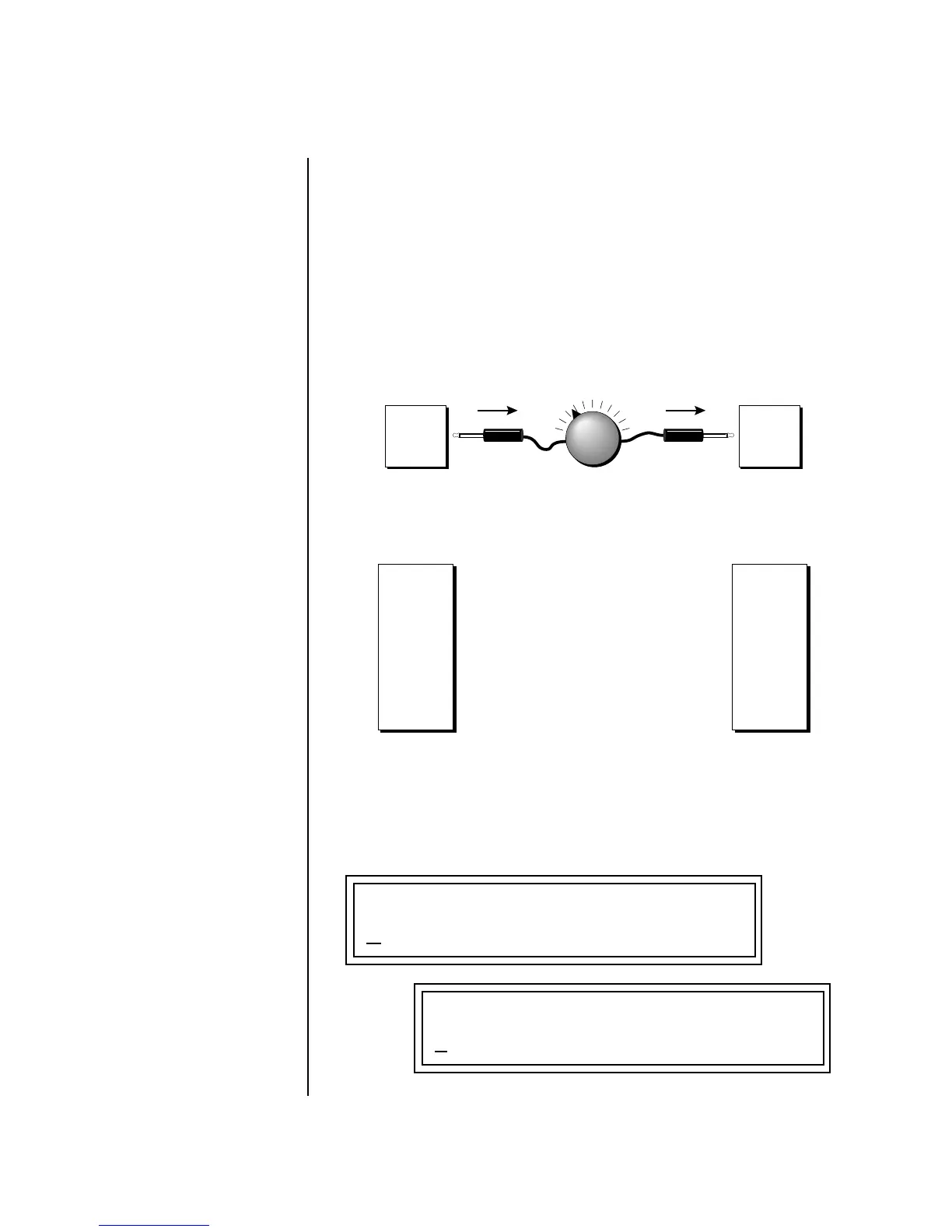

PatchCords PatchCords tie everything together by connecting modulation sources to
destinations. Each PatchCord has its own Amount control which can be
positive or negative (negative amounts invert the signal). In addition, the
PatchCord amounts themselves can be controlled by any modulation
source. MK-6 provides 24 patches for each layer.
There are three permanently connected control routings: volume envelope
to amplifier, pitch wheel to pitch and key to pitch. All other connections
must be made using the PatchCords.
Each patch has an amount field which determines how much modulation
is applied to the destination. The modulation amount can be positive or
negative. Negative values invert the input. The amount value range is from
-100 to +100.
Modulation
Source
LFO 1
Destination
Amount +/-
Amp
Volume
Modulation
Source
LFO 1
LFO 2
Amp Env
Filt Env
Aux Env
Wheel
Pressure
etc.
Amp Vol
Pitch
Pan
LFO Rate
Aux Env
Env Atk
Glide
etc.
Destination
-
+
L1
PATCHCORD #01
R
lsVel -> AmpVol +100
L1
PATCHCORD #24
K
ey+ -> FiltRes -27
To Next Page
