MK-6 Operation Manual 15
Setup
Performance Setup
Performance Setup
MIDI In/MIDI Out
MK-6 can be connected to a computer/sequencer via the MIDI In and MIDI
Out ports. MK-6 to playback complex multitimbral sequences.
Audio Outputs
Two pairs of programmable stereo outputs (Main and Sub 1) are provided.
The internal effects are available only on the Main outputs. Specific presets
(or MIDI channels) can be routed to one of these stereo pairs in order to be
processed further or mixed separately.
Footswitch & Footpedal
The footswitch input accepts either a normally-open or normally-closed
momentary footswitch. The footpedal input can sense either 0-5 volts on
the ring of a stereo jack or a pedal with the potentiometer wired as shown
at left. The footswitch and Pedal inputs are programmable in the
Controllers, Footswitch menu and the Preset Edit, PatchCord menu.

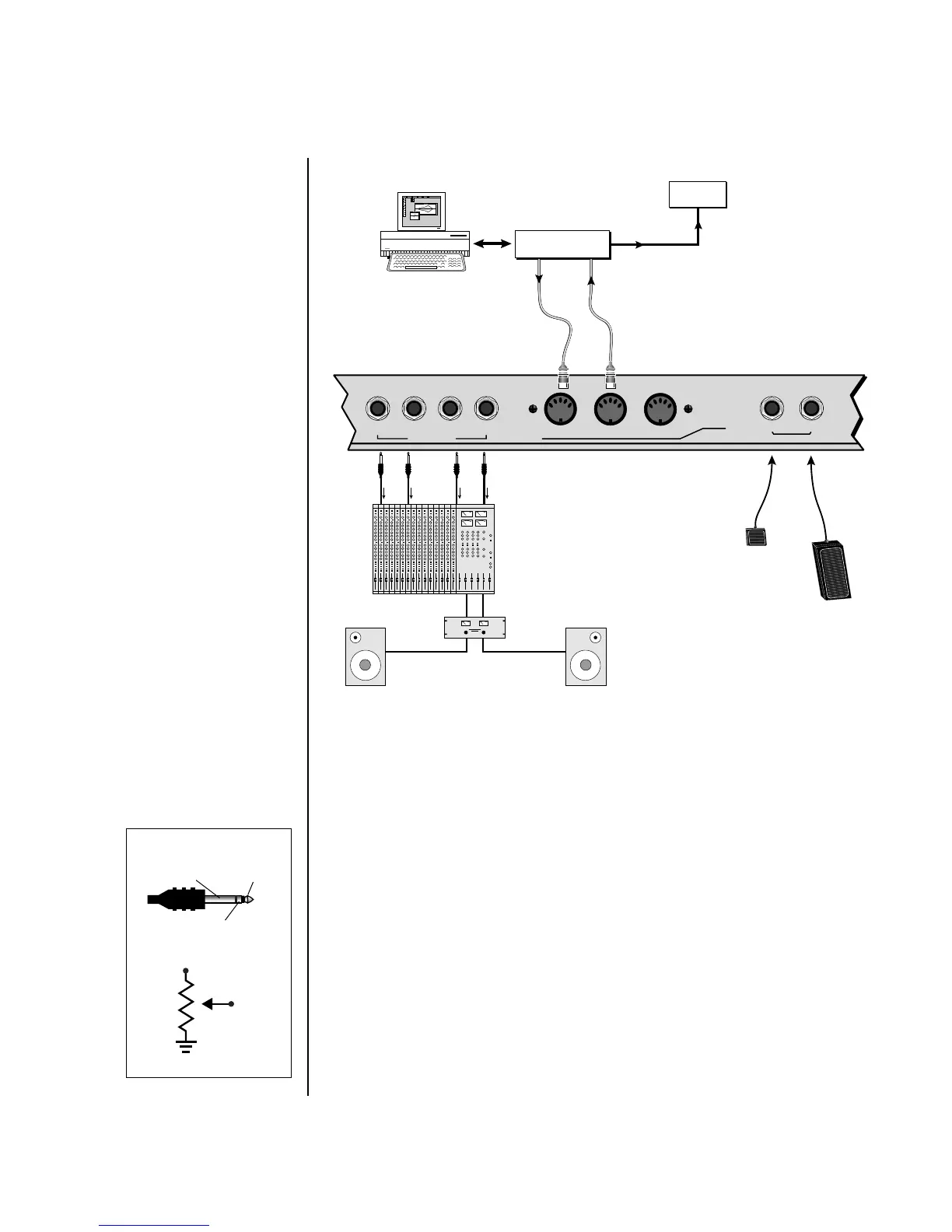

Rear Panel
R
L
R
L
IN
OUT
THRU
OUTPUTS
MIDI
SWITCH PEDAL
SUB 1 MAIN
FOOT
Amp
Mixer
MIDI In
Additional
MIDI
Devices
MIDI
Interface
Out In
Out
Computer
Footswitch
Foot Pedal
Ground Tip
Ring
Ground
Tip
Ring
FootPedal Wiring
