6.2.4
Using the Menu
The UPS menu bar allows you to display data in the information area to help you monitor and control UPS
operation. Table 6-2 shows the basic menu str ucture.
T able 6-2. Display Function Menu Map
Menu Option Description
METERS Displays performance meters for the system or critical load. EVENTS
Displays the list of Active System
Events.
HISTORY Displays a historical log of system events. CONTROLS
Displays the System Control
screen.
SETUP Allows you to set the date and time for the time stamp, set the display language, the unit name, and meter subscripts,
change the password, and view the firmware version
numbers.
ESC Returns to Main Menu and Mimic screen from the Meters, Events, History, Controls, or Setup screens. Returns
to the main System Setup
Level screen from a setup submenu.
Return arrow acknowledges or executes a command, or saves a setting. Up and down
arrows scroll through screens and lists or highlight
settings.
Left and right arrows select or adjust settings displayed on the screen.
6.2.5
Mimic Screen
Figure 6-5 shows the Main Menu and Mimic screen. To select the Mimic screen from the Meters, Ev ents, History,
Controls, or
Setup screens, press the ESC pushbutton on the current menu bar .

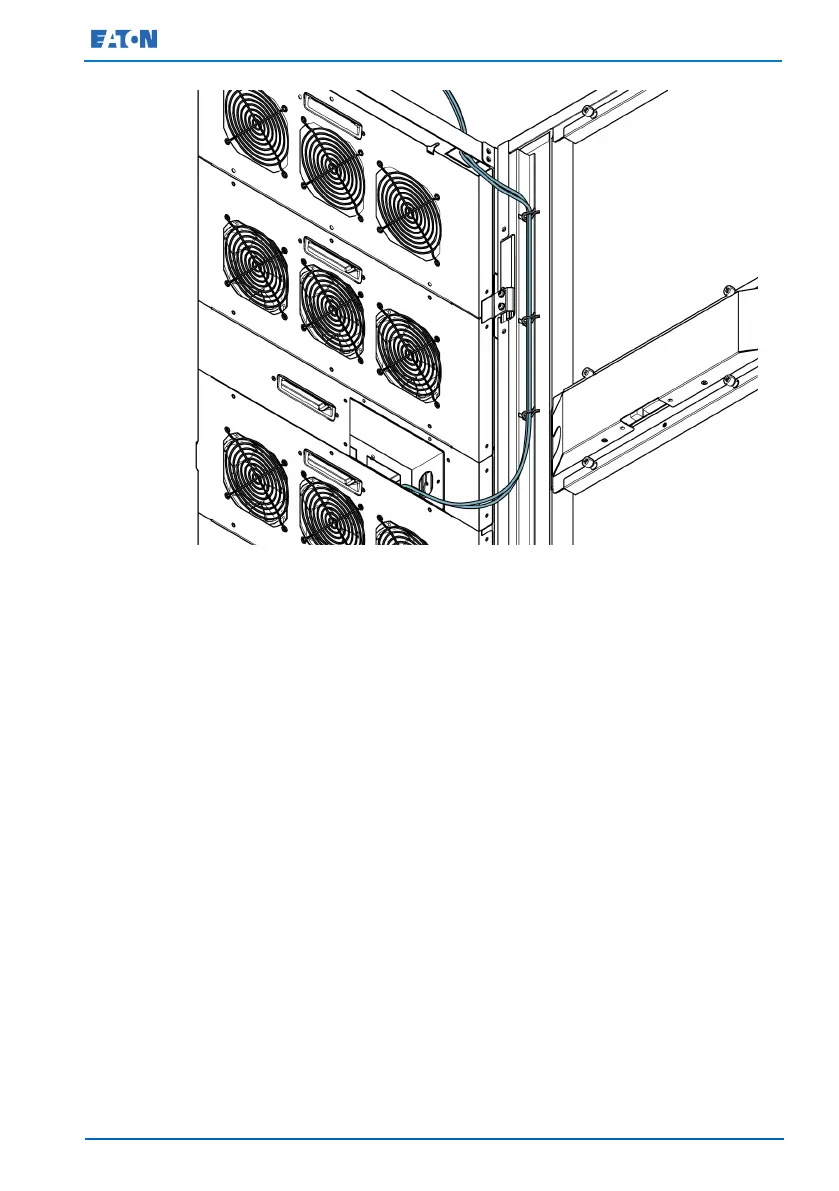

The Mimic
screen shows the internal components of the UPS cabinet and a real-time graphical represent ation of the
operating status of the sy stem.
Figure 6-5. Main Menu and Mimic Screen
53
