Chapter 4 UPS System Installation
4.1 Preliminary Installation Information
W ARNING
Installation should be performed only by qualified personnel. See installation instructions before
connecting to the supply .
Refer to the following while installing the UPS
sy stem:

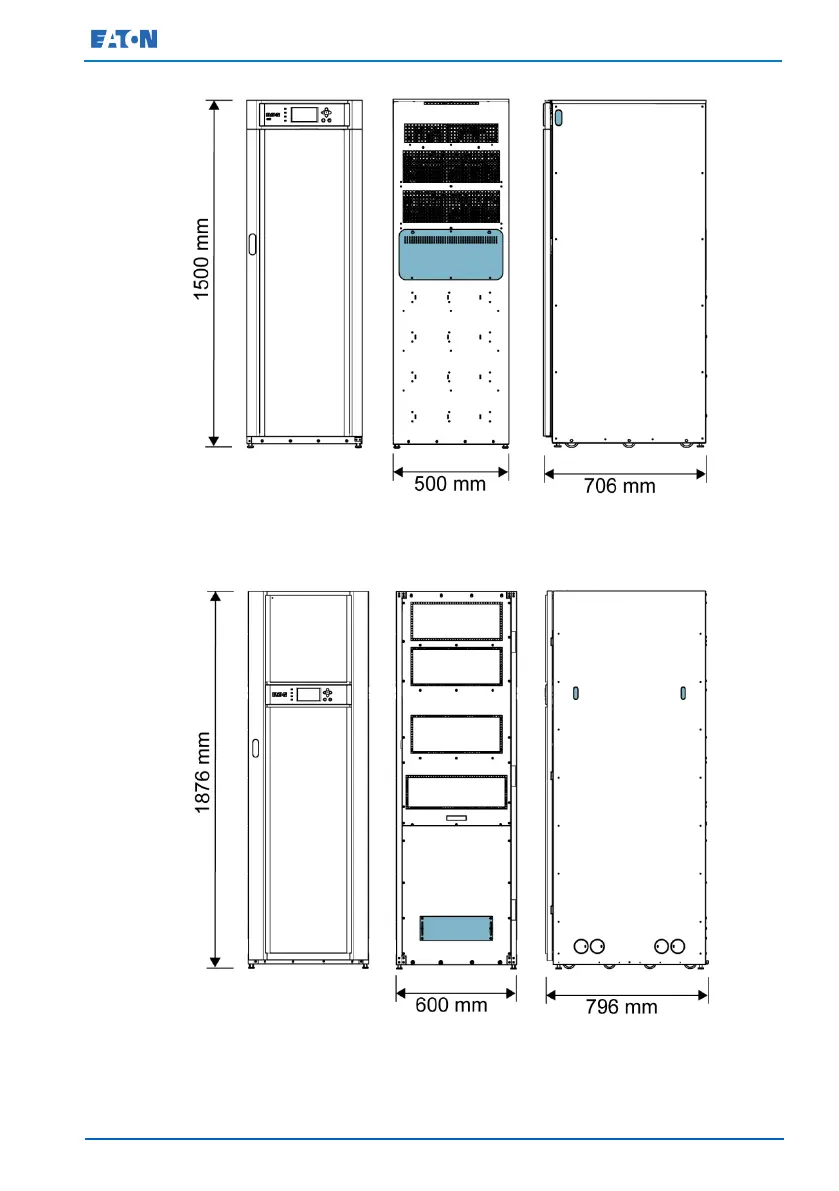

• Chapter 3 for cabinet dimensions, equipment weight, wiring and terminal data, and installation notes.
• Do not tilt the cabinets more than ±10° during inst allation.
• If perforated floor tiles are required for ventilation, place them in front of the UPS .
• The UPS unit is not suitable for IT or corner-earthed power distribution sy stems.
• Suitable for mounting on concrete or other non-combustible surfaces only
W ARNING
This UPS is not suitable for IT type source.
4.2
Unloading the UPS Cabinet from the Pallet
The UPS Cabinet is bolted to a wooden pallet supported by wood skids. To remove the pallet:
W ARNING
The UPS cabinet is heavy (see Table 3-1). If unpacking and unloading instructions are not closely followed,
the cabinet may tip and cause serious injury .
CAUTION
• Do not tilt cabinet more than 10° from v ertical.
• Lift the cabinets only with a forklift or damage may occur.
NOTE
For the following
steps, verify that the forklift or pallet jack is rated to handle the weight of
the cabinet (see Table 3-1 for cabinet w eight).
4-1
Eaton 93E MK2 UPS (10-40kVA, 380/400/415V) Installation and Operation
