1. If not already accomplished, use a forklift or pallet jack to move the UPS cabinet to the
installation area,
or as close as possible, before unloading from the pallet. Insert the forklift or
pallet jack forks

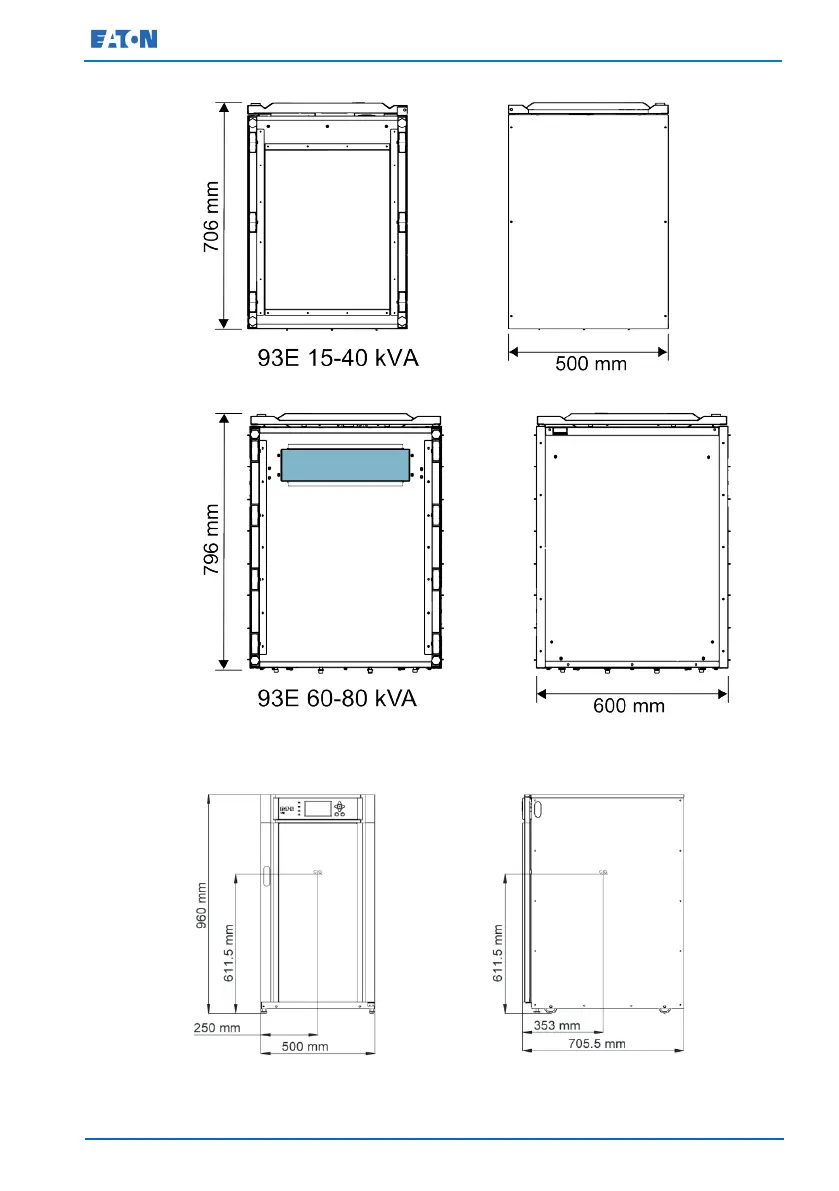

between the supports on the bottom of the pallet (see Figure 3-4 for the UPS
cabinet center of gravity measurements).
2. Attach the ramp to the front of the pallet
3.
Remove four bolts securing the front shipping bracket to the cabinet and four bolts securing
the bracket to the pallet (see Figure 4-1). If installing the cabinet permanently, retain the
shipping
bracket and securing hardware for later use.
4. If the leveling feet are not fully retracted, turn the leveling feet until they are retracted.
5. Remove four bolts securing the rear shipping bracket to the cabinet and four bolts securing
the bracket to the pallet (see Figure 4-1). If installing the cabinet permanently, retain the
shipping
bracket and securing hardware for later use.
W ARNING
Do not stand directly in front of the pallet while unloading the cabinet. If unloading instructions are
not closely followed, the cabinet may cause serious injury .
6. Slowly roll the
cabinet toward the front of the pallet. Continue rolling the cabinet down the
ramp until
the cabinet is clear of the ramp (see Figure 4-3).
7. Roll the cabinet to the final installation location.
8. If installing the cabinet permanently, retain the shipping brackets and hardware; otherwise,
recycle the pallet, ramp, and shipping brackets in a responsible manner .
9. Secure the UPS cabinet in position by lowering the leveling feet until the cabinet is not
resting on the casters and the cabinet is le v el.
10. If permanently mounting the system, proceed to Step 1 1;
11. Using the retained hardware, reinstall the shipping brackets removed in Step 2 and Step 5 to
the front
and rear of the UPS cabinet with the angle facing outward (see Figure 4-1).
12. Secure the cabinet to the floor with customer-supplied hardw are.
