04/10 MN04020001Z-EN
Brake resistors
167

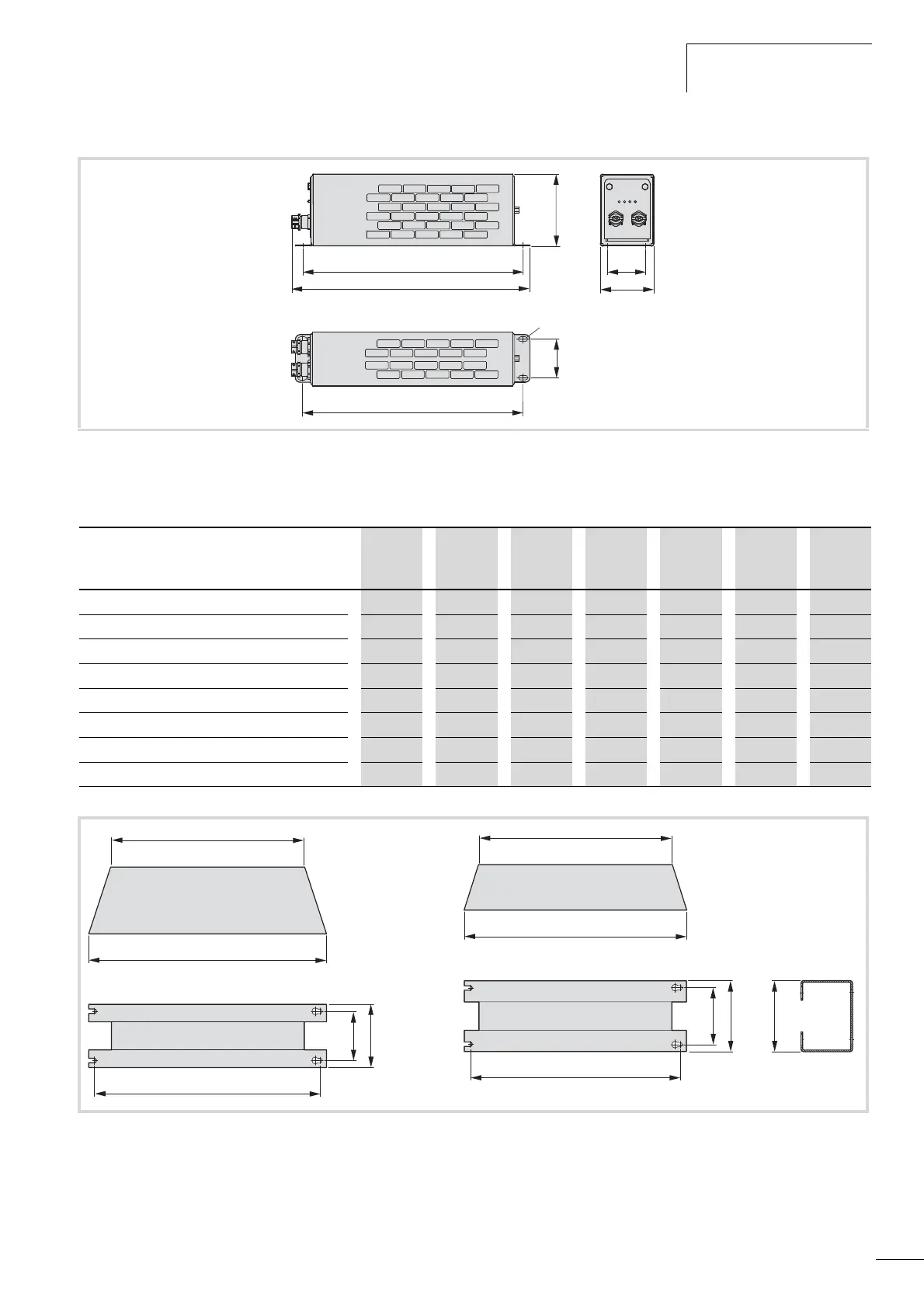

Table 16: Dimensions and weights of BR…-T-PF brake resistor (a figure 127)
Figure 127: Dimensions BR...-T-PF
BR1, BR3 a
a1
b b1 c d m
[mm] [mm] [mm] [mm] [mm] [mm] [kg]
BR10361K0-T-PF 445 428 140 120 120 6 x 12 3.4
BR1036500-T-PF 445 428 95 70 95 6 x 12 2.2
BR10561K0-T-PF
445 428 140 120 120 6 x 12 3.4
BR1056300-T-PF 345 328 95 70 95 6 x 12 1.6
BR1056800-T-PF 395 378 140 120 120 6 x 12 2.9
BR30362K4-T-PF 485 380 326 300 301 9 9.6
BR30362K8-T-PF 485 380 326 300 301 9 10.2
BR30363K6-T-PF 485 380 326 300 301 9 11.5
Figure 128: Brake resistor BR2… in base frame
315
273
320
80
100
100
