04/10 MN04020001Z-EN
Installation instructions
33

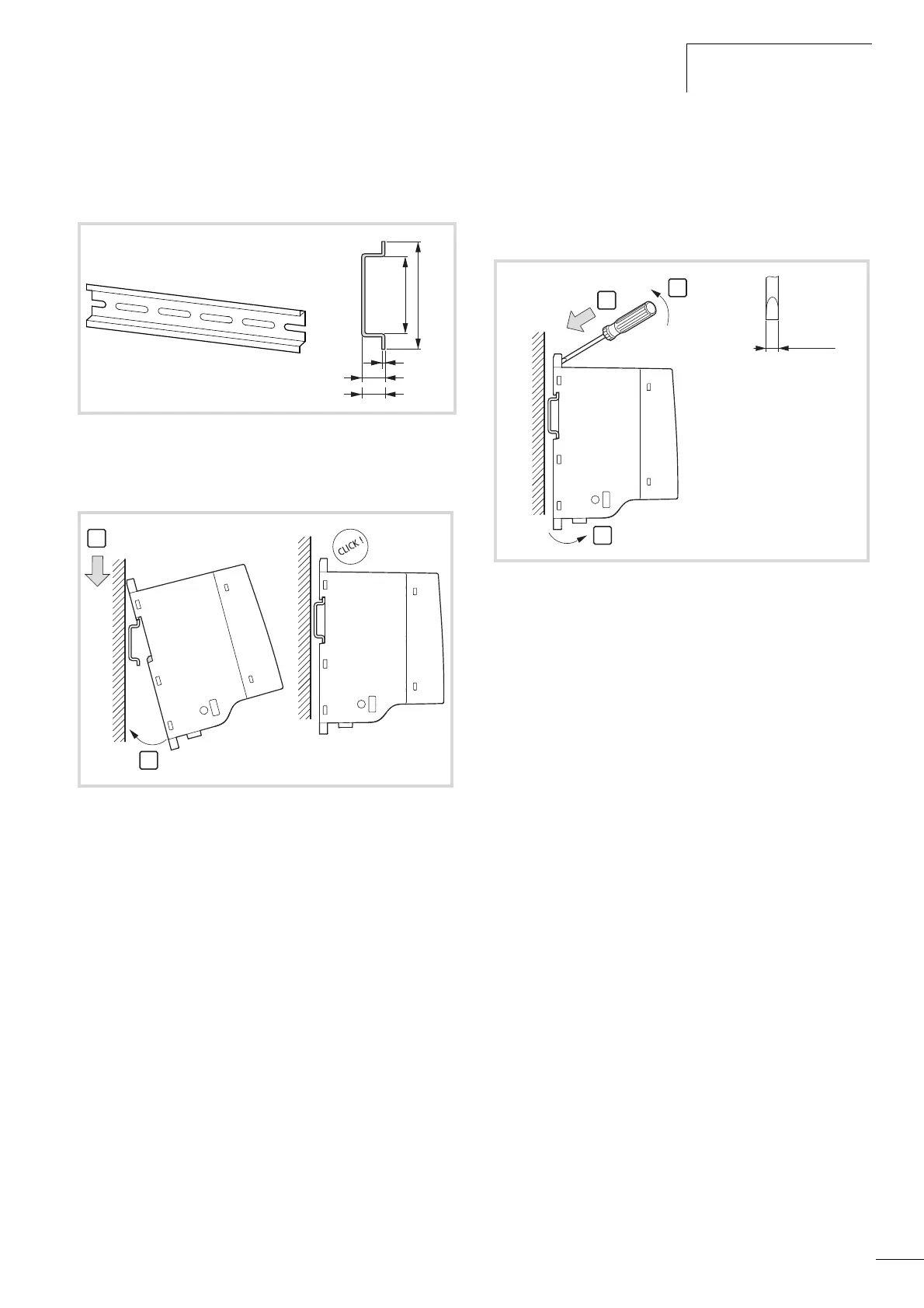

Fastening on mounting rails
As an alternative, you can also fasten to a mounting rail
conforming with IEC/EN 60715.
Set the frequency inverter onto the mounting rail [1] from above
and press until is rests in place [2].
Dismantling from mounting rails
To remove the device push down the spring-loaded clip. A marked
cutout is provided on the upper edge of the M-Max
TM
device.
A flat-bladed screwdriver (blade width 5 mm) is recommended for
pushing down the clip.
Figure 22: Mounting rail conforming with IEC/EN 60715
Figure 23: Fastening to the mounting rail
25
35
1
7.5
15
2
1
Figure 24: Demounting
2
1
3
f 5
f 0.197“
