Eaton MMX34AA9D0 Series User Manual

Error and Warning Messages
04/10 MN04020001Z-EN
66
Acknowledge fault (Reset)
By switching the supply voltage off, the error message (F, FAULT)
is acknowledged and reset. The error code with the respective
operating times (d = days, H = hours, M = minutes) remains stored
(FLT).
In the factory setting, you can also acknowledge the error with a
24-V-DC signal on terminal 15 (DI5 = Reset). The error code is not
deleted in this case.

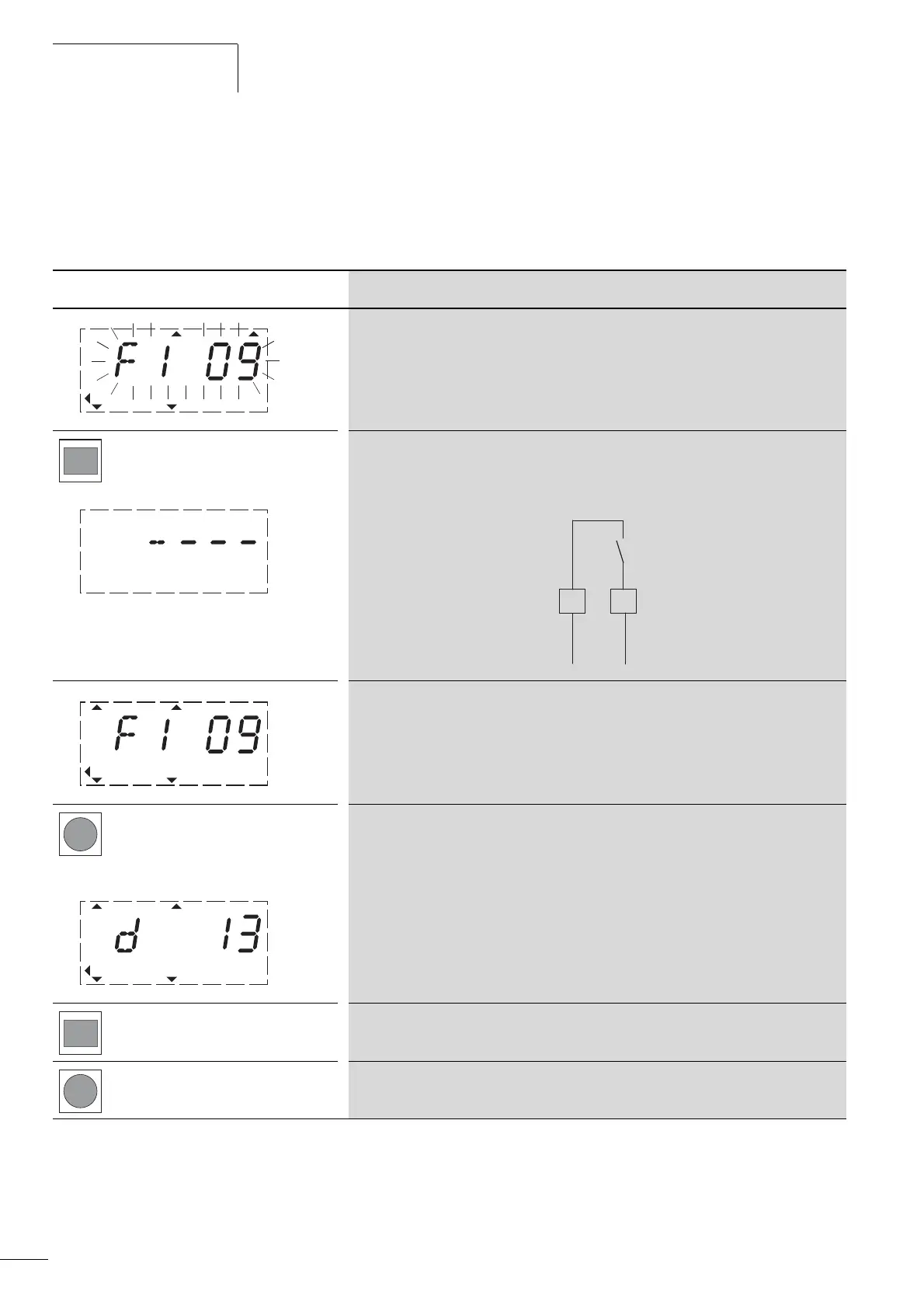

The following table shows the required operations for acknowl-
edging an error message via the operating unit.
Operating unit element Explanation
F1 = Current fault message (flashing display)
09 = undervoltage (example)
Actuate the BACK/RESET button or terminal DI5 (Reset) to acknowledge the error message.
The acknowledged fault message is displayed with READY and the failure code.
By actuating the OK button, the number of operating days (e.g.. d = 13 days) until this fault
message is displayed.
You can also show the respective hours (H) and minutes (M) of operation with the arrow
button
Ú.
You exit the fault log (FLT) with the BACK/RESET button.
The Y arrow moves to MON in the menu level.
Use the OK button to activate the operating data display now or select another menu level with
the arrow keys Íor Ú .
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
6
DI5
< 50 mA
24 V Out
15
Reset
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
OK
RUN STOP ALARM FAULTREADY
REF
FWD REV I/O KEYPAD BUS
MON
PAR
FLT
BACK
RESET
OK
