Operating peripheral devices
4.4 EST2 System Operations Manual
RSAN-PRT Printer
The RSAN-PRT printer provides permanent records of all
system activities, including sensitivity and history reports. The
RSAN-PRT remains continuously active unless someone uses
the printer connection for maintenance purposes. The printer
operates in combination with the 2-LCD. See Generating reports
in Operating panel devices. The printer will generate a trouble
condition at the control panel if it has an internal problem or runs
out of paper.
STDOP039.CDR
TROUBLE
PAPER
TAKE UP
PAPER
ADVANCE
PAPER OUT
Message
printed
here
Reset switch
(
behind
the faceplate )
on the circuit
board

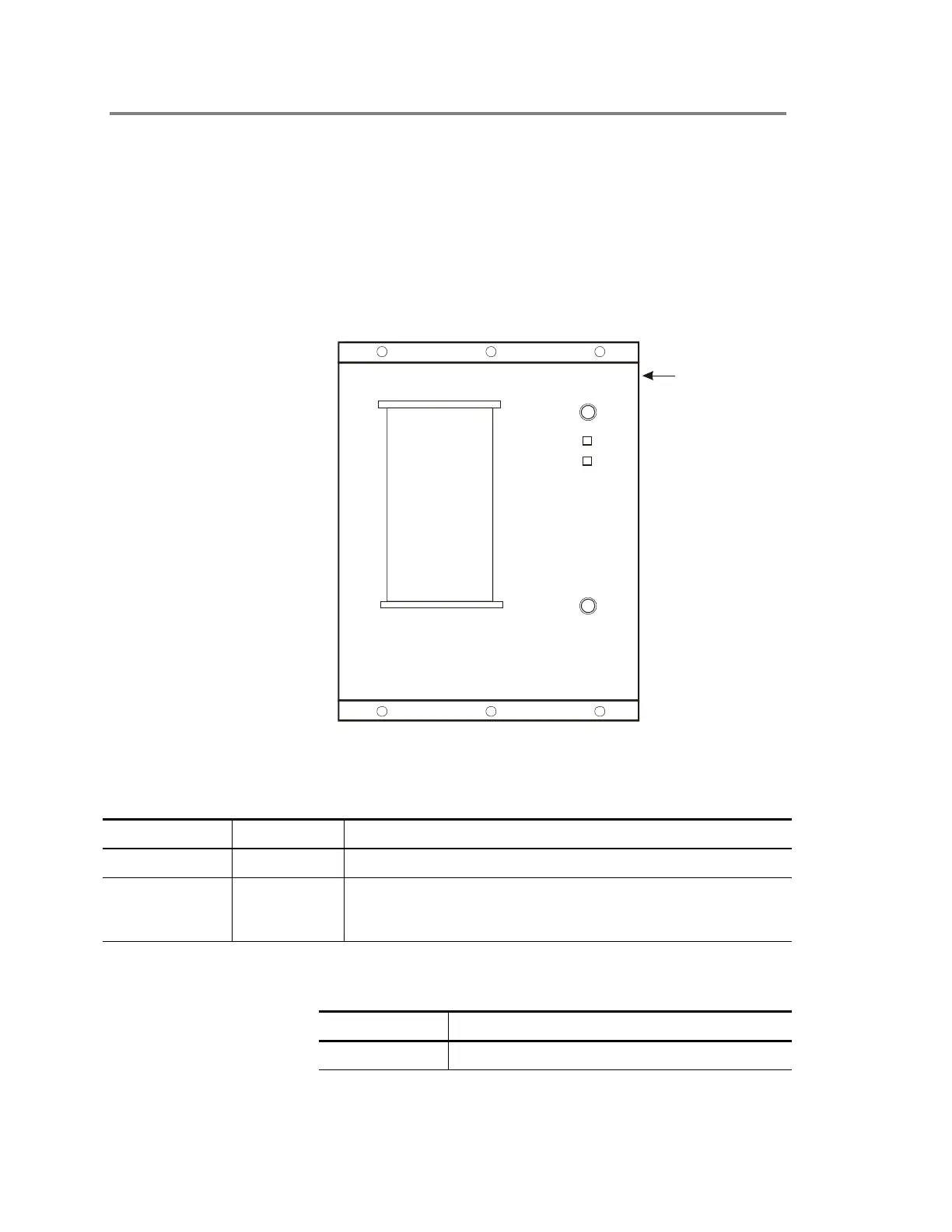

Figure 4-2: RSAN-PRT strip printer
Table 4-3: Indicators
LED Color Description
Trouble Yellow The Paper out LED turns on when the printer requires paper.
Paper out Yellow The Trouble LED turns on when the printer has an internal
trouble or a printer down line is not responding to supervision
requests.
Table 4-4: Controls
Control Description
Reset Restarts and reinitializes the printer.
