Edwards nEXT400 User Manual

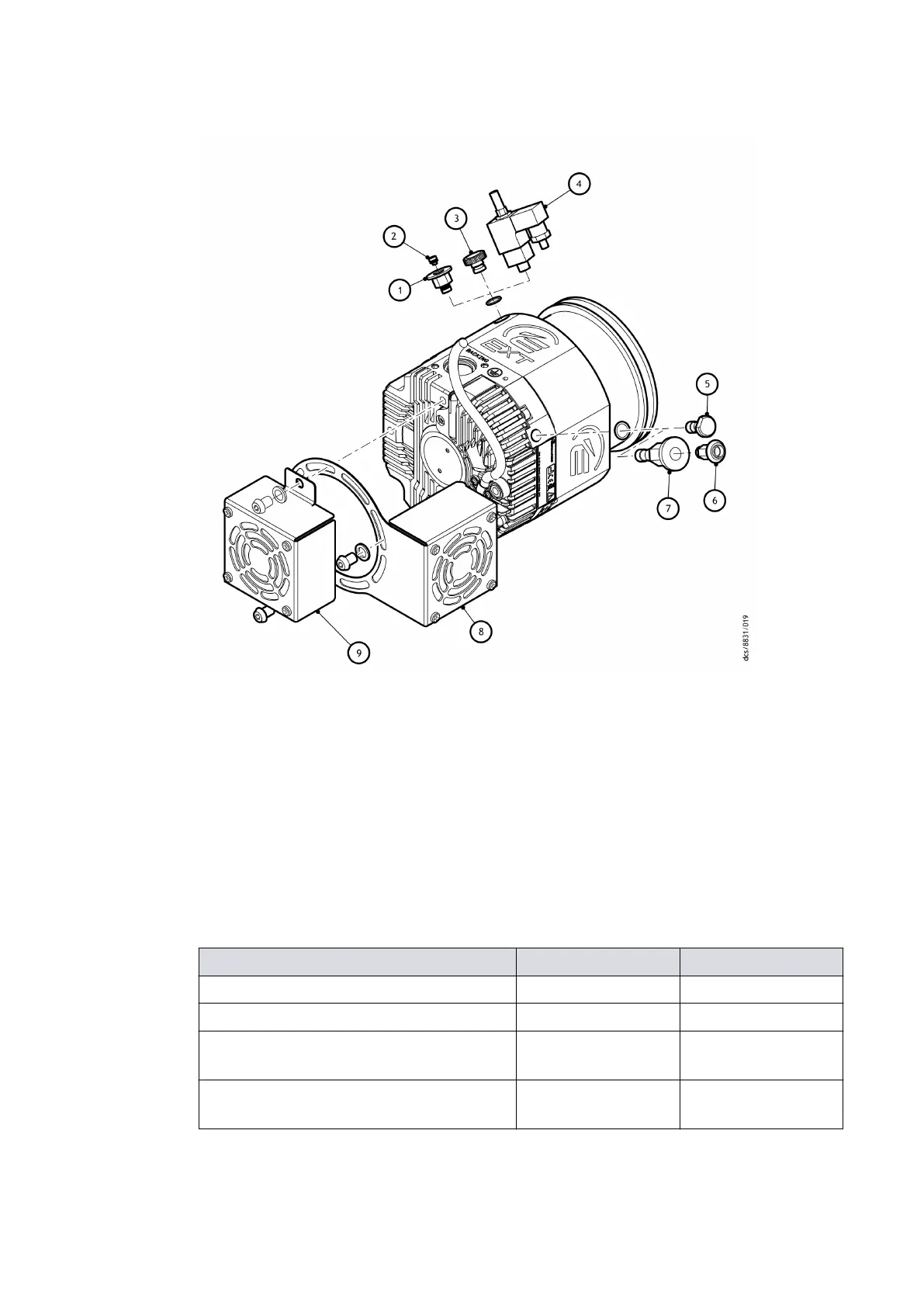

Figure 23 nEXT exploded accessories view
1. DN10NW adaptor 2. VRX vent restrictor
3. Manual vent valve (ed) 4. TAV solenoid vent valve
5. Purge plug (ed) 6. PRX purge restrictor
7. DN10NW adaptor 8. ACX nEXT air cooler (radial)
9. ACX nEXT air cooler (axial)
1. DN10NW adaptor 2. VRX vent restrictor
3. Manual vent valve (ed) 4. TAV solenoid vent valve
5. Purge plug (ed) 6. PRX purge restrictor
7. DN10NW adaptor 8. ACX nEXT air cooler (radial)
9. ACX nEXT air cooler (axial)
13.2 ACX air cooler
An ACX air c
ooler can be installed to the pump. Refer to Cooling on page 60 to check the
correct air cooling in a parcular applicaon.
Table 37 ACX air cooler
Air Cooler
Current draw Item number
ACX nEXT radial fan 135 mA B58053175
ACX nEXT axial fan 135 mA B58053185
ACX nEXT radial fan (with Phoenix connec-
tor)
135 mA B58053170
ACX nEXT axial fan (with Phoenix connec-
tor)
135 mA B58053180
04/2022 - ©Edwards Limited
Page 100B80000880_G
B80000880_G - Accessories
