Edwards nEXT400 User Manual

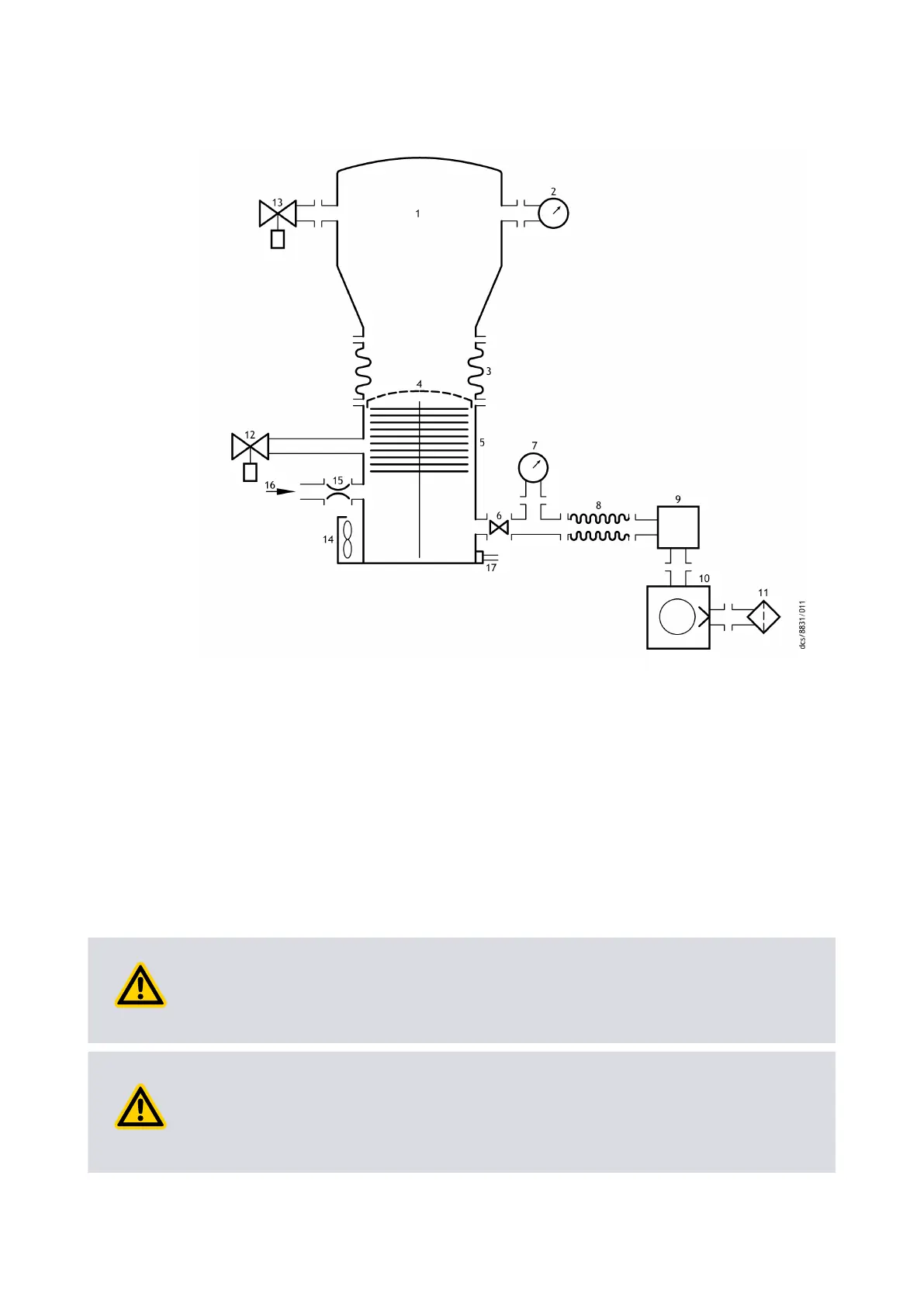

Figure 11 Typical pumping system with a nEXT pump
1. Vacuum system 2. High-vacuum gauge
3. Vibraon damper 4. Inlet screen
5. nEXT pump 6. Backing valve
7. Vacuum gauge 8. Flexible bellows
9. Foreline trap 10. Rotary backing pump
11. Mist lter 12. V
ent valve
13. Alternave posion for vent valve 14. Air cooler
15. PRX purge restrictor 16. Regulated purge gas supply
17. WCX water cooler and connecons
1. Vacuum system 2. High-vacuum gauge
3. Vibraon damper 4. Inlet screen
5. nEXT pump 6. Backing valve
7. Vacuum gauge 8. Flexible bellows
9. Foreline trap 10. Rotary backing pump
11. Mist lter 12. Vent valve
13. Alternave posion for vent valve 14. Air cooler
15. PRX purge restrictor 16. Regulated purge gas supply
17. WCX water cooler and connecons
4.3.1 Inlet screen (installed on CF only)
WARNING: SHARP EDGES
Risk of injury
. Removal of the inlet screen will expose the risk of injury from sharp
edges.
CAUTION: INLET SCREEN
Risk of damage t
o equipment. The inlet screen prevents the contaminaon of the
pump. Do not remove the inlet screen unl the pump is prepared to be mounted
onto the system.
