Edwards nEXT400 User Manual

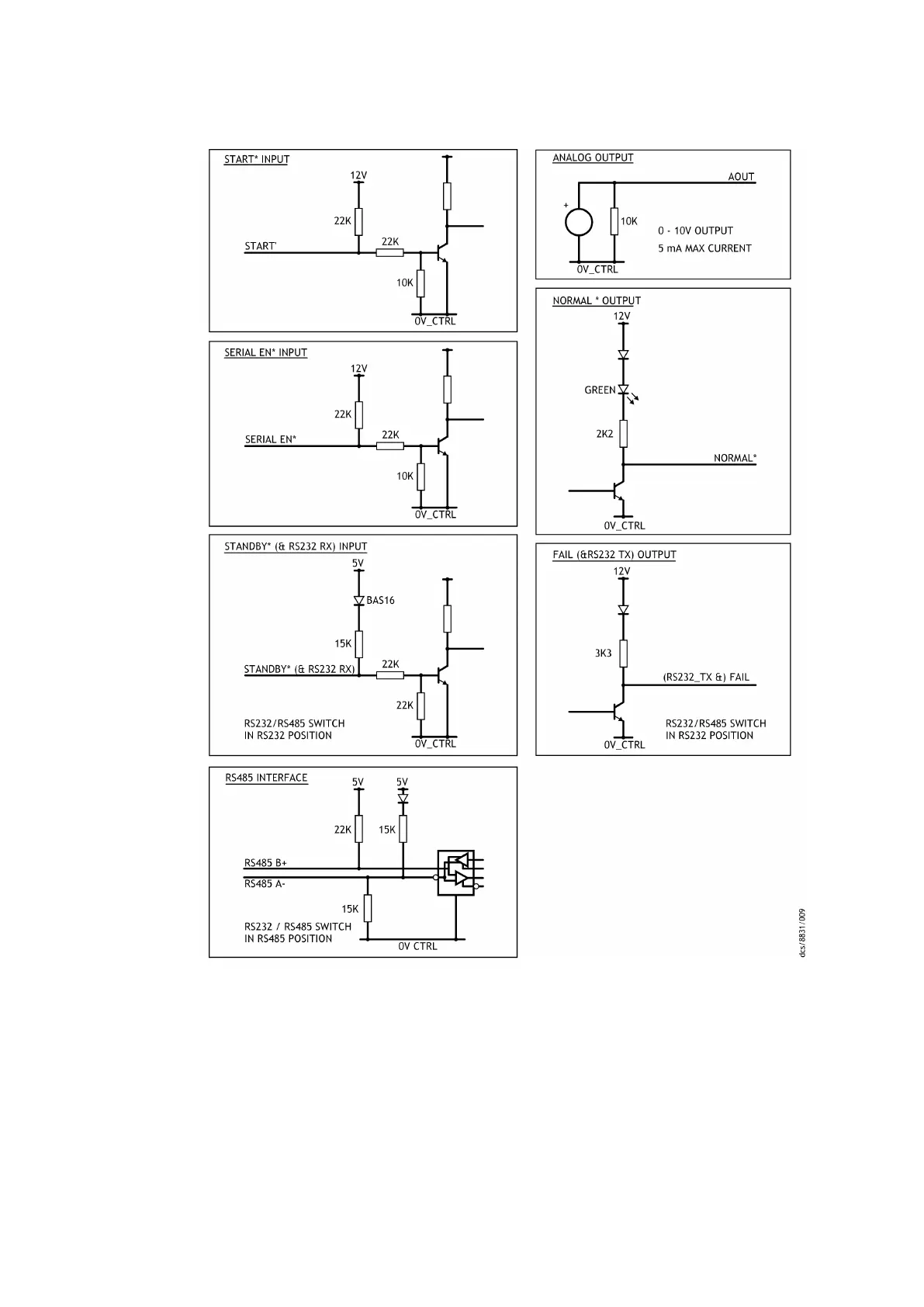

Figure 9 Interface circuits for nEXT turbo pump controllers
3.10 Controller connector socket
The pump has a 3‑w
a
y controller connector socket at the side of the controller. When
the pump is shipped, the 3‑way controller connector is concealed with a black protecve
cover. Before you use the 3‑way controller connector, remove the black protecve cover
with the help of a screwdriver. The mang plug for the 3‑way controller connector is
supplied with the pump.
04/2022 - ©Edwards Limited
Page 34B80000880_G
B80000880_G - Technical data

Edwards nEXT400 Specifications
