13. Accessories
13.
1 Installaon
The accessories available for use with the pumps are described in the secons that
follows. Figure: nEXT exploded accessories view and Figure: nEXT exploded accessories
view shows how the accessories are installed to the pump.

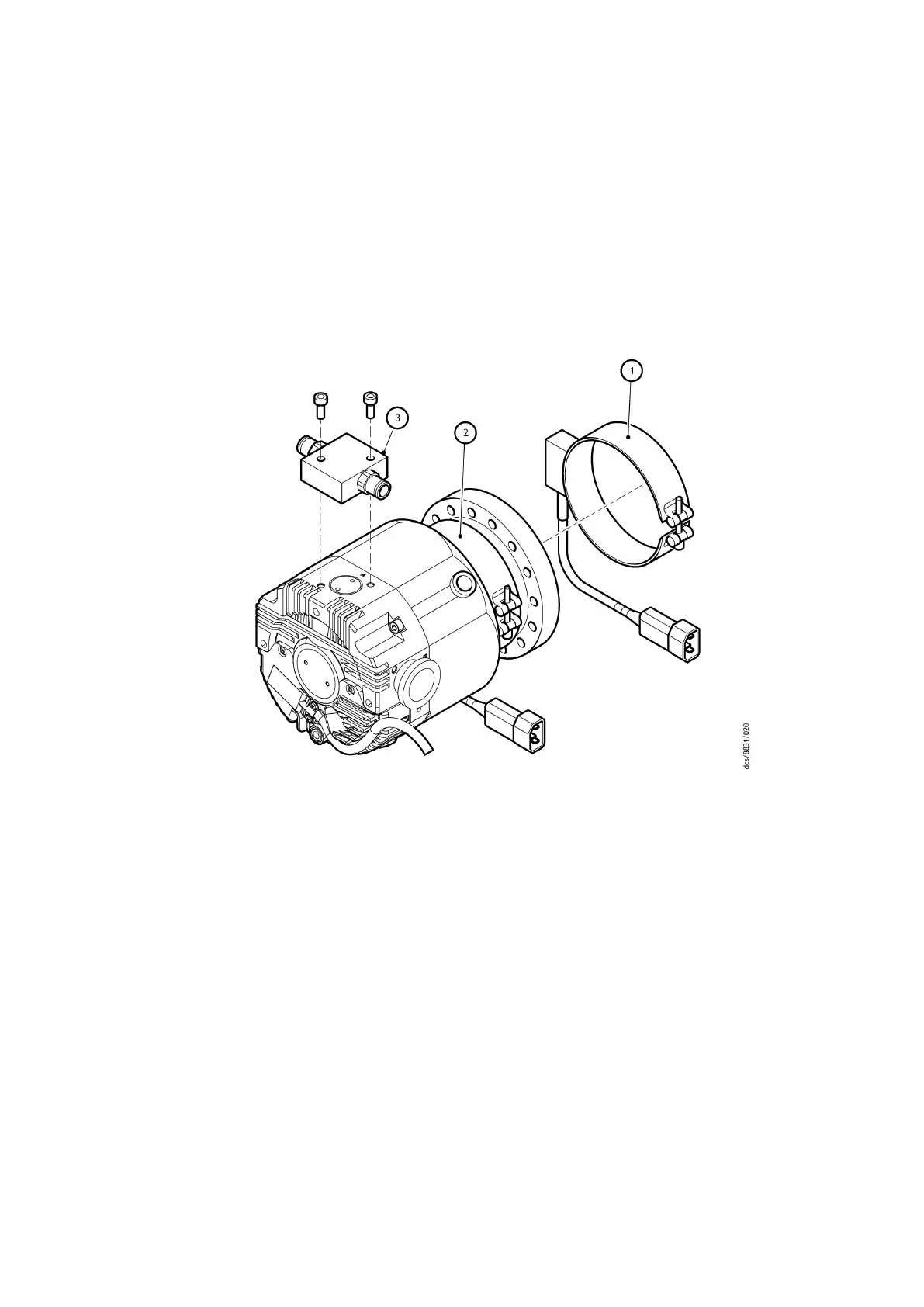

Figure 22 nEXT exploded accessories view
1. BX 250 bake out band (DN100CF
envelope sho
wn)
2. BX 250 bake out band posion
3. WCX water cooling accessory
1. BX 250 bake out band (DN100CF
envelope shown)
2. BX 250 bake out band posion
3. WCX water cooling accessory
