5. INSTALLATION

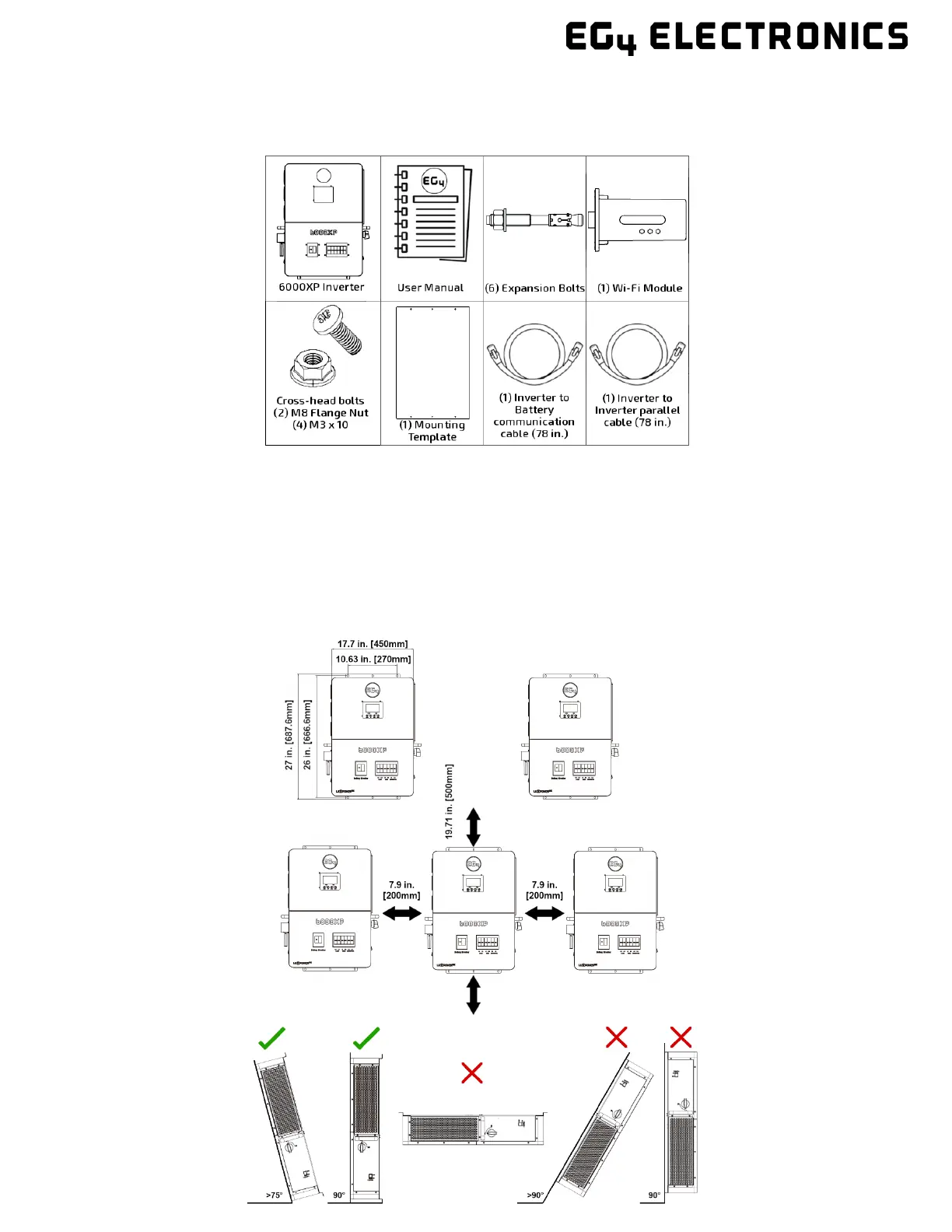

5.1 PACKING LIST

When the product is unpacked, the contents should match those listed below:

Pictures are for reference only, subject to our available products.

5.2 LOCATION SELECTION AND INSTALLATION

1. The mounting wall should be strong enough to bear the weight of the inverter.

2. Please maintain the minimum clearances presented below for adequate heat dissipation.

3. The inverter should be installed upright on a vertical surface.

Inverter Spacing Diagram

Inverter Angle Placement

Questions and Answers:

Need help?

Do you have a question about the EG4 6000XP and is the answer not in the manual?

EG4 6000XP Specifications

General

Nominal DC Voltage	48V
Maximum DC Voltage	500V
Maximum Continuous Output Power	6000W
Frequency	60Hz
Model	EG4-6000XP
Peak Power	12000W
Protection Features	Over Voltage, Over Load, Over Temperature, Short Circuit
Cooling	Fan
