7.2 APPLICATION SETTING

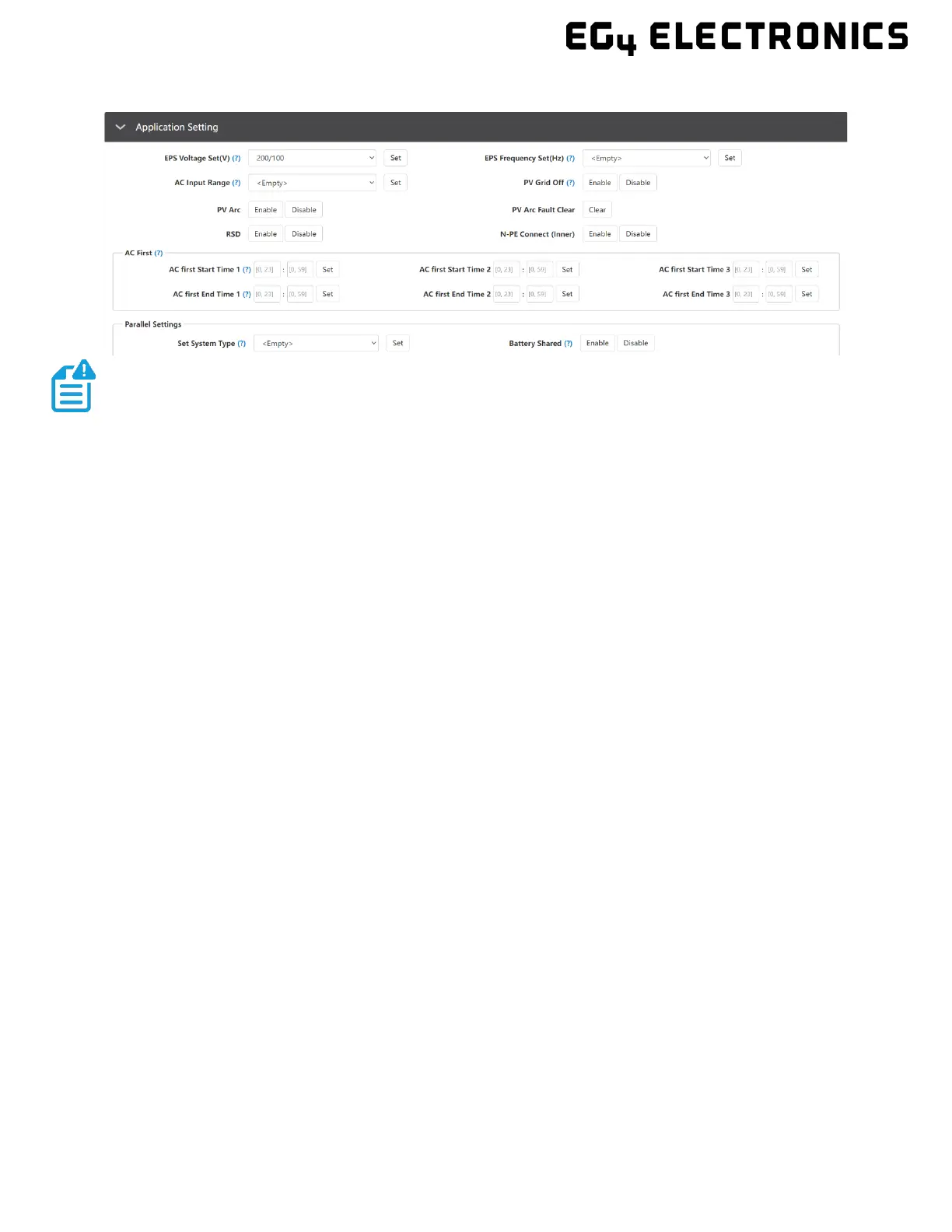

• EPS Voltage Set(V): Set the inverter’s output voltage.
• EPS Frequency Set(Hz): Set the inverter’s output frequency.
• AC Input Range: Set the voltage range for AC Input.
• PV Grid O: If the customer wants the system to have O-Grid functionality without
having battery backup, please enable PV Grid O. Note that in this situation the AC Output
power is supplied by solar and is not stable due to fluctuating voltages from the solar
modules. We suggest the customer install battery/batteries to keep the inverter output
voltage stable if they want to have O-Grid function. (Allows system to access the O-
Grid mode when only solar input is available without battery storage).
• PV Arc: Enables detection of arcs on the PV input circuits to the inverter and provides
protection from PV circuit arcs.
• PV Arc Fault Clear: Clears any fault detected due to arcs on the PV input circuit to the
inverter.
• RSD: Enables the Rapid Shut Down feature.
• N-PE Connect (Inner): Enable for the AC Neutral (N) and AC Ground (PE) to be bonded.
AC First
• AC first Start Time 1-3: The time at which the Inverter will use only AC to power loads. The
range is 00:00 to 23:59.
• AC first Stop Time 1-3: The time at which the Inverter will use only AC to power loads. The
range is 00:00 to 23:59.
Parallel Settings
• Set System Type: The EG4 6000XP supports paralleling of multiple inverters.
• Battery Shared: For paralleled systems, if all inverters connect to same battery bank,
Battery Shared must be enabled. The inverter with battery to inverter communication
cable connected will broadcast the battery info to all other inverters.
The user must also establish the paralleling scheme using Setting 21 in
the user interface. ‘NoPL’ (Not Parallel) or ‘1PH‘ (Single Phase). See Section 12,
LCD Settings, for more details.
To Next Page
