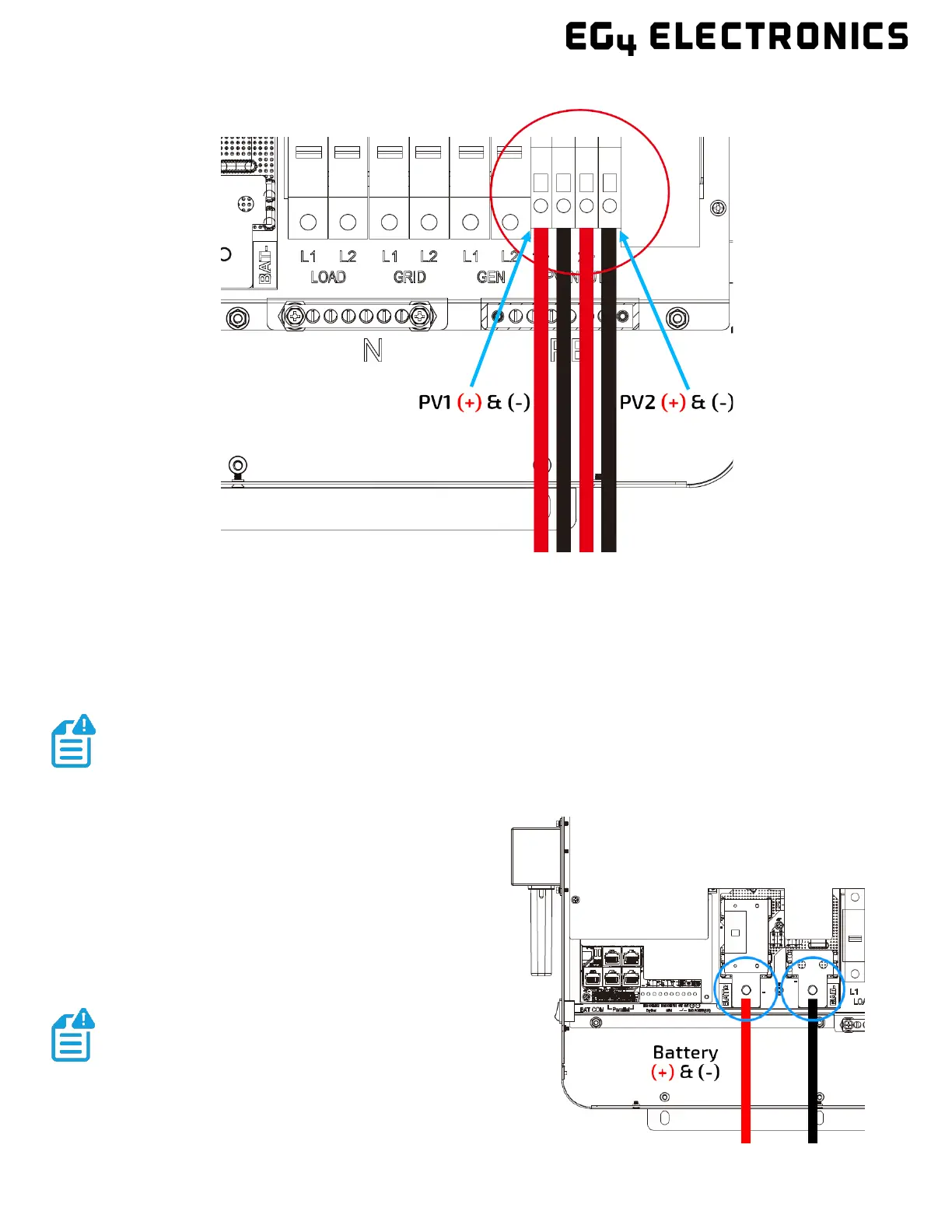

Please see diagram below for PV terminal labeling:

5.6 BATTERY CONNECTION

The EG4 6000XP can utilize either Lithium or Lead-Acid batteries. There is a combination of settings

that need to be conﬁgured depending on the battery type.

5.6.1 BATTERY CABLE CONNECTION

Follow the steps below to properly connect the battery wires.

Step 1: Place all breakers in the open (o) position

before connecting or disconnecting wires. Ensure that

there is no DC voltage present with a voltmeter.

Step 2: Assemble battery ring terminal based on

recommended battery cable and terminal size (see

table below).

Step 3: Connect all batteries as the unit requires.

NOTE:

For Lead-Acid batteries, the recommended charge current is 0.2C

NOTE:

If using a battery rack, ensure that

all battery connections are installed

properly before proceeding. Please refer to

battery manual for more information.

Questions and Answers:

Need help?

Do you have a question about the EG4 6000XP and is the answer not in the manual?

EG4 6000XP Specifications

General

Nominal DC Voltage	48V
Maximum DC Voltage	500V
Maximum Continuous Output Power	6000W
Frequency	60Hz
Model	EG4-6000XP
Peak Power	12000W
Protection Features	Over Voltage, Over Load, Over Temperature, Short Circuit
Cooling	Fan
