EG4 6000XP User Manual

22
• AC Charge Battery Current(A): Set AC Charge Current limit for grid to batteries.
• AC Charge Start Battery Voltage(V): Begin charging from grid when batteries reach this
voltage. (If set to charge by Voltage)
• AC Charge End Battery Voltage(V): Stop charging from grid when batteries reach this
voltage. (If set to charge by Voltage)
• AC Charge Start Battery SOC(%): Begin charging from grid when batteries reach this
SOC%. (If set to charge by SOC)
• AC Charge End Battery SOC(%): Stop charging from grid when batteries reach this SOC%.
(If set to charge by SOC)
6.2.1 GENERATOR CHARGE
• Generator Charge Type: Set generator charge type by either Voltage or SOC%.
• Generator Charge Battery Current(A): Set maximum amperage charge from generator.
• Generator Charge Start Battery Voltage(V): Set Voltage which generator will start
charging batteries.
• Generator Charge End Battery Voltage(V): Set Voltage which generator will stop charging
batteries.
• Generator Charge Start Battery SOC(%): Set SOC% which generator will start charging
batteries.
• Generator Charge End Battery SOC(%): Set SOC% which generator will stop charging
batteries.
• Max. Generator Input Power(W): Set the maximum power(W) the inverter will pull from
generator for charging.

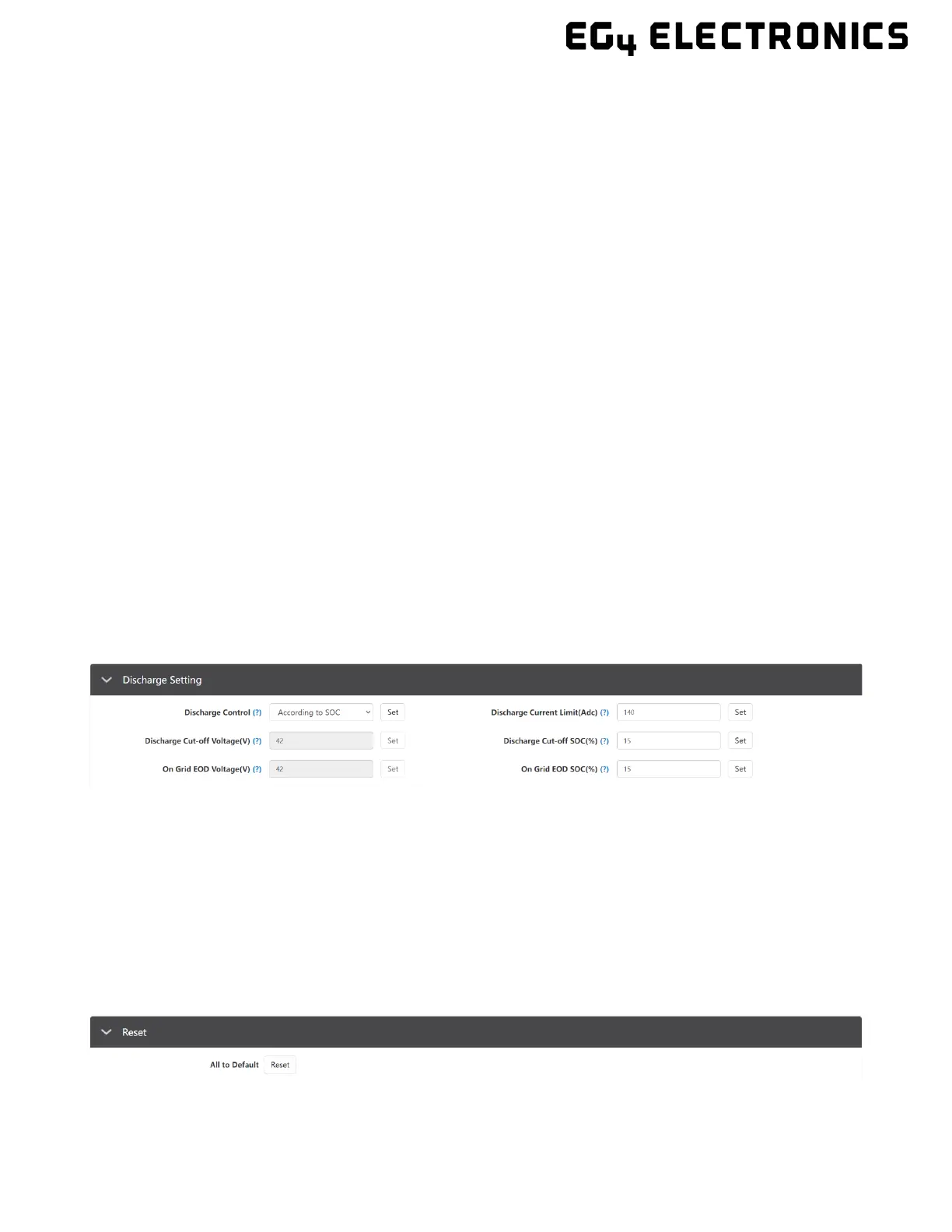

6.3 DISCHARGE SETTING
• Discharge Control: Set Voltage/SOC to configure stop time for battery discharge.
• Discharge Current Limit(Adc): Set the limit of battery discharge current.
• Discharge Cut-o Voltage(V)/SOC(%): Set when batteries stop discharging to power
loads via Voltage/SOC.
• On Grid EOD Voltage(V)/SOC(%): Set when batteries stop discharging to power loads via
Voltage/SOC and switch to have AC power loads/charge batteries. When battery voltage
is > (EOD Voltage +3V), the inverter will switch back to battery discharge mode. When
battery SOC is > (EOD SOC+10%), the inverter will switch back to battery discharge mode.
6.4 RESET
• Reset: Reset all settings to factory default. Be sure to keep track of what changes need to
be made before powering the system back on!

EG4 6000XP Specifications

General

Nominal DC Voltage	48V
Maximum DC Voltage	500V
Maximum Continuous Output Power	6000W
Frequency	60Hz
Model	EG4-6000XP
Peak Power	12000W
Protection Features	Over Voltage, Over Load, Over Temperature, Short Circuit
Cooling	Fan
