Description Operating manual - Fan CF-C
22 of 84 www.elektror.com 2004930 10.19/0.2
EN

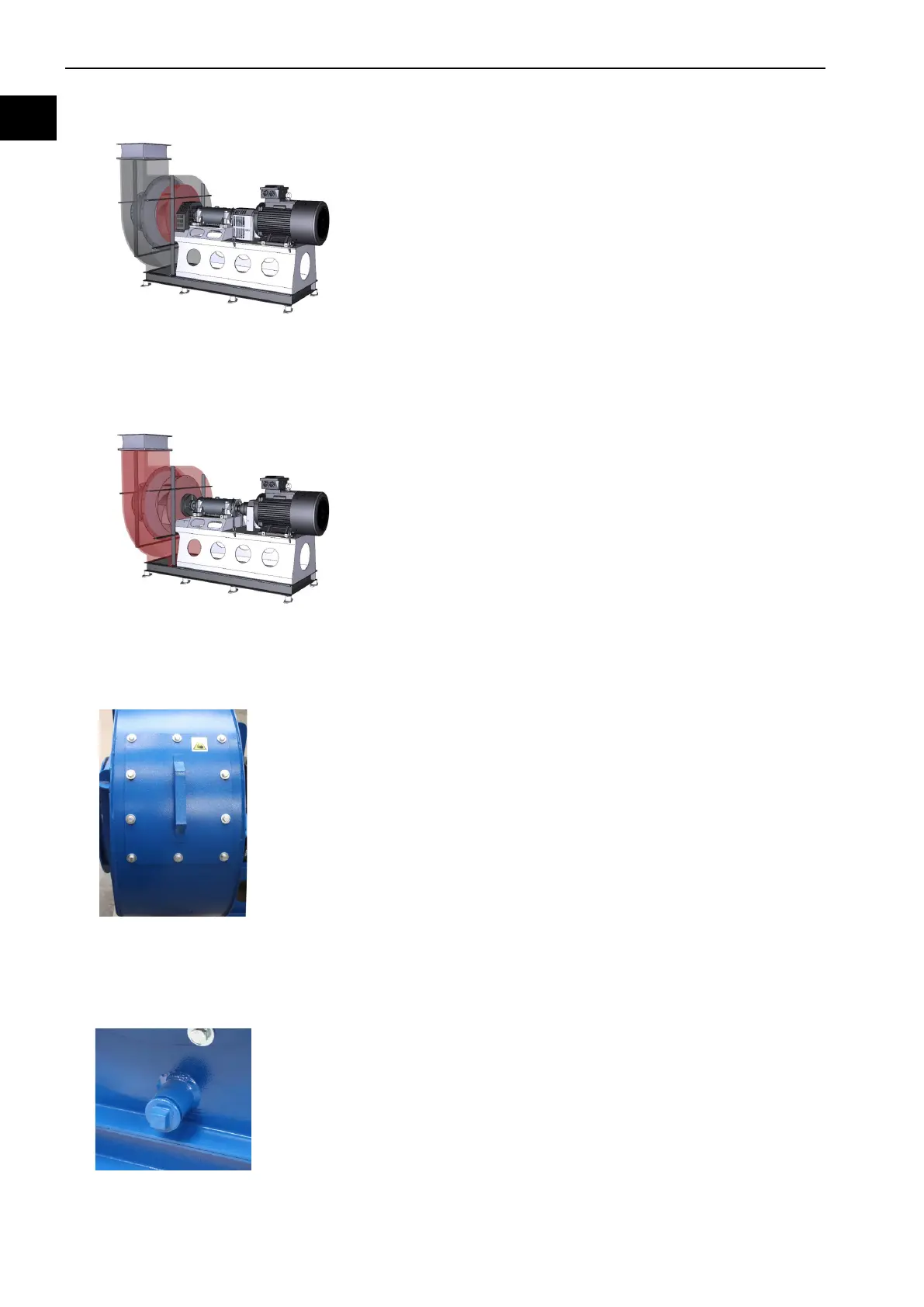

3.1 Impeller
Impeller
The impeller has been constructed in accordance with the
latest achievements of air flow technology, it is
electrodynamically balanced in two planes.
The impeller together with the impeller hub is mounted on
the journal of the bearing shaft.
3.2 Housing
The housing is a welded design, equipped with flanges on
the suction and pressure sides.
On the suction side there is a housing cover with a
suction connection. On the pressure side there is a
housing cover with a seal.
is possible to make a housing with an
inspection opening and a conduit for draining condensate.
3.2.1 Inspection opening
Inspection opening
The inspection opening is located on the perimeter of the housing and
is used to inspect the inside of the fan.
3.2.2 Condensate drain pipe
Condensate drain pipe with
plug
The condensate drain pipe with a plug is located at the lowest point of
the housing and is used to drain condensate.
