8.8.5.4 Lubrication schedule (Fan with bearing block)

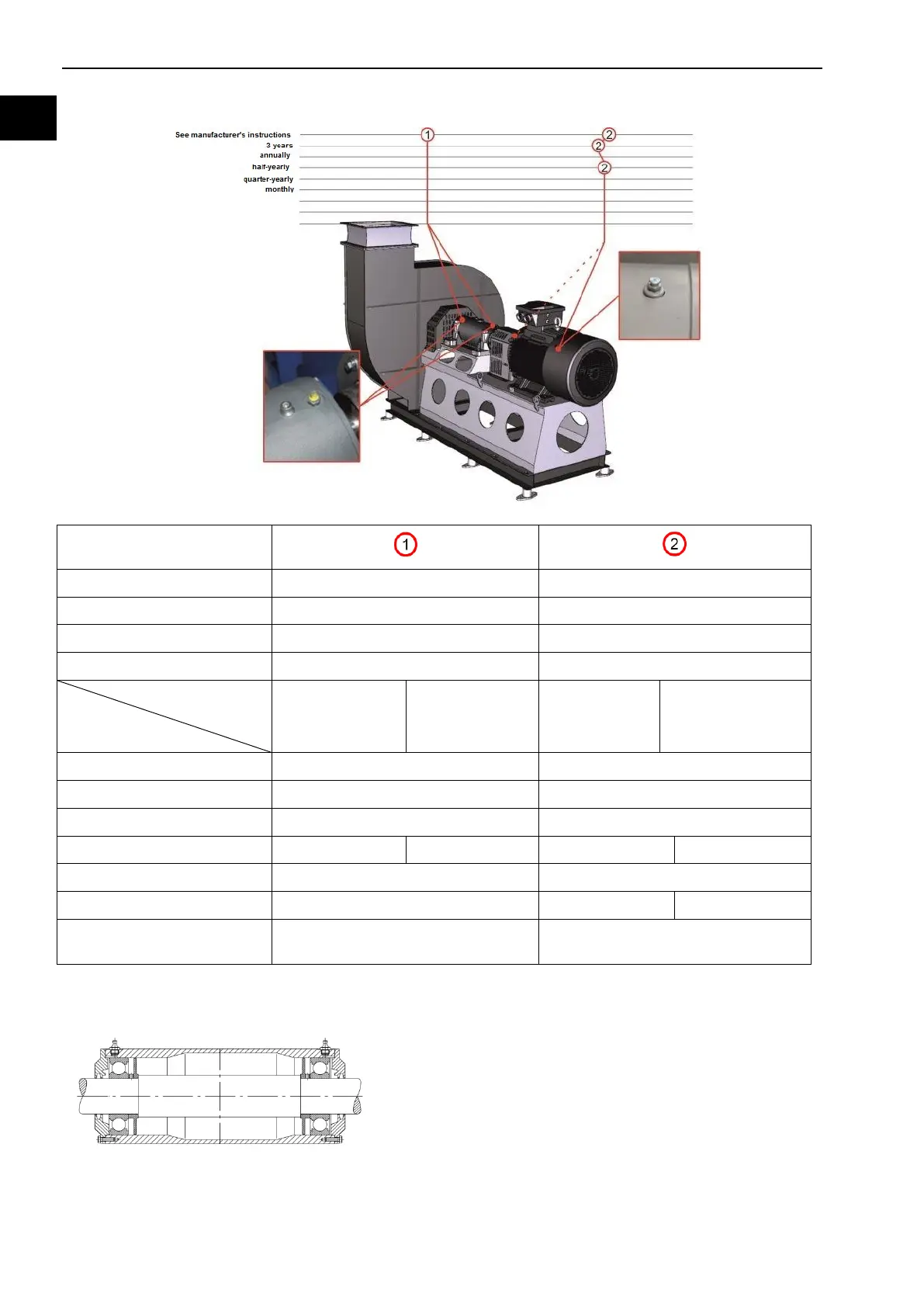

Lubrication schedule

Lubrication point number:

Manufacturer:

HFB

Objects:

Bearing block Electric motor

Type:

see nameplate for lubrication see nameplate for lubrication

Lubrication point:

2 x G 1/4" grease nipple 2 x M 10x1 grease nipple

Graphic designation

Type of interference

Check and possibly top up see nameplate for lubrication see nameplate for lubrication

Lubricate

– –

Clean or replace

– –

Replace

–

Grease (DIN 51825) LGHP (SKF)

Container capacity

– –

Individual lubrication

instructions

Lubrication according to the

manufacturer's (HFB) data

Lubrication according to the

manufacturer's (electric motor) data

Principles of bearing block lubrication

Bearing block

with grooved ball bearings

The grooved ball bearing of the bearing block requires

lubrication during operation via 2 G 1/4" grease nipples on

the impeller and drive side while maintaining the specified

quantity and quality of the lubricant.

The bearing

temperature rises after each lubrication and

falls to the normal value after the grease has reached the

operating consistency.

Grooved ball bearings are equipped with grease control
