Operating manual - Fan CF-C Description
2004930 10.19/0.2 www.elektror.com 23 of 84
EN

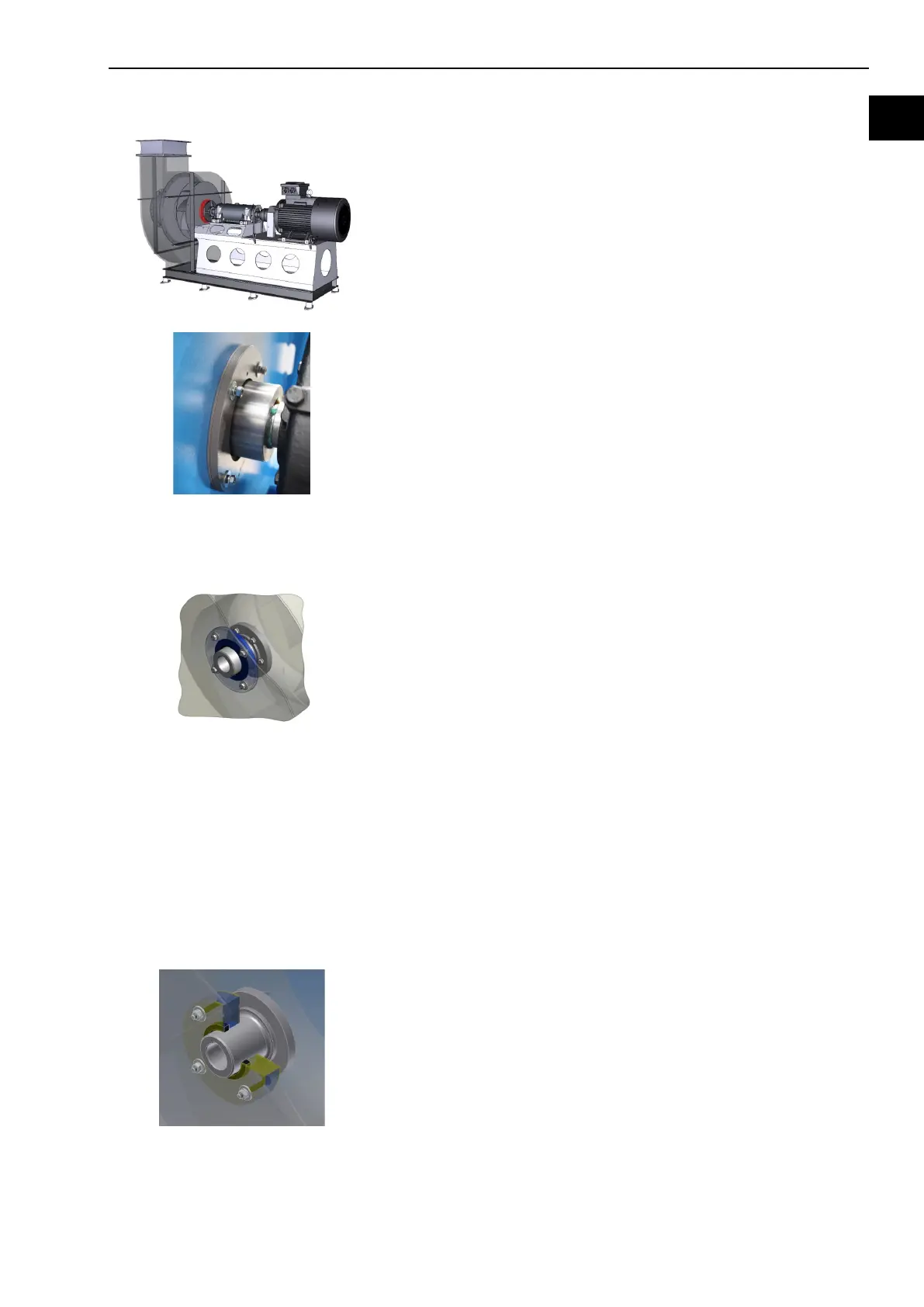

3.3 Hub seal
Hub seal
It is possible to optionally equip the fan with various types of
hub seals, as required.
3.3.1 Standard seal (temperature range up to +120 °C)
Standard seal
The hub seal is normally made in the form of a sealing ring. The
hub seal in the form of a sealing ring (cellulose, aramid or fibre)
is intended for the tempe
rature range up to +120 °C.
3.3.2 Standard seal (temperature range up to +300 °C)
The hub seal is made in the form of a sealing ring. The hub seal in the form of a sealing ring
(cellulose, aramid or fibre) is intended for the temperature range up to +300
°C.
3.3.3 Hub seal with graphite ring
Hub seal with graphite ring
The hub seal is made in the form of a sealing ring. The hub seal
in the form of a sealing ring (graphite) is intended for the
temperature range up to +550
°C.
