Mounting, installation and connection Operating manual - Fan CF-C
40 of 84 www.elektror.com 2004930 10.19/0.2
EN

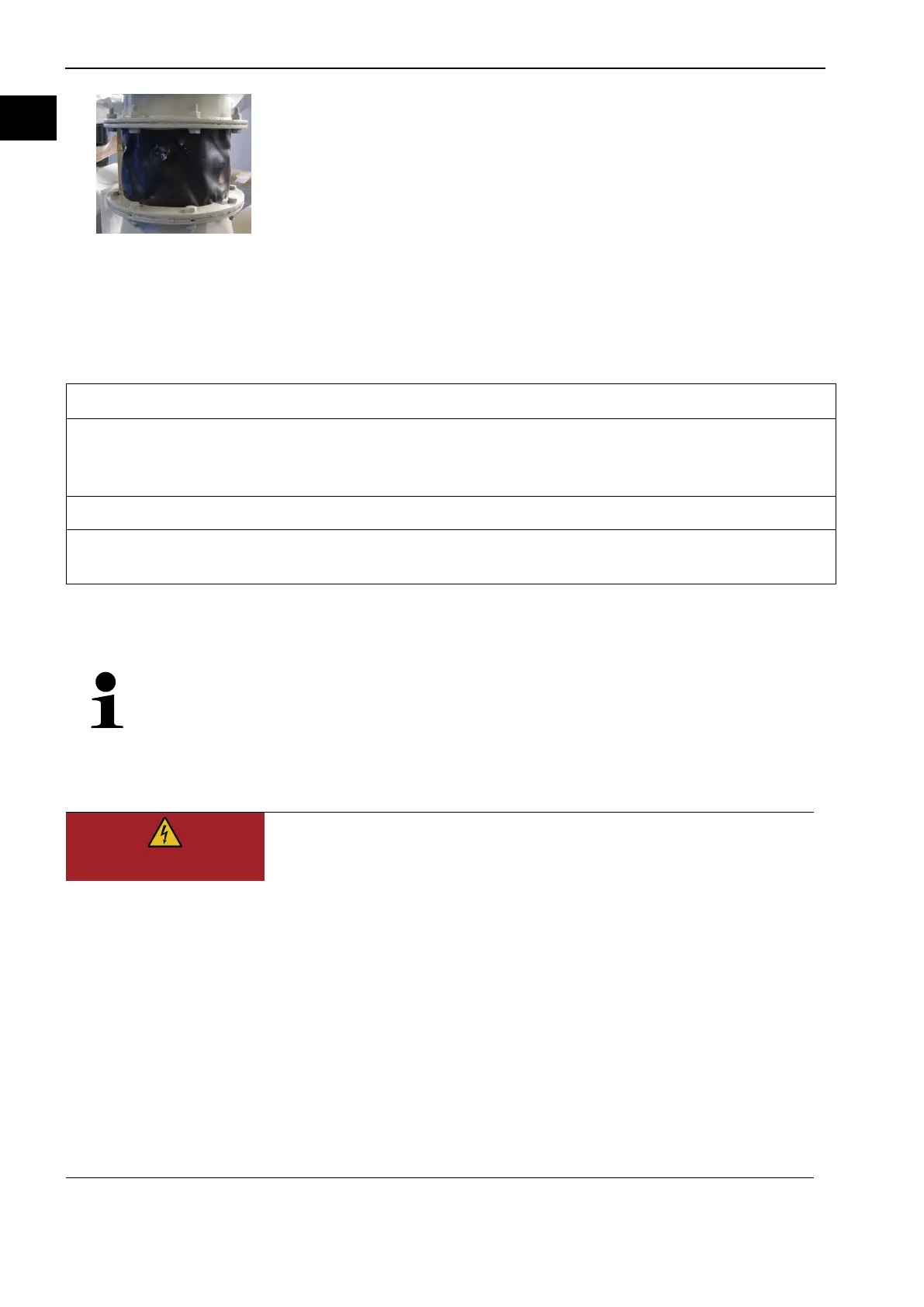

Bolted joint of the compensator
For compensators, the ends of the bolts should be directed outside the
compensator.
6.5.2.3 Connection of pipes
Connecting the fan to service lines, in the event of stress in the pipeline can lead to changes,
e.g. changing the gap of the impeller nozzle.
1. Remove transport covers from the connectors.
2. Bring the piping to the suction and pressure ports of the fan.
Note:
A displacement should not occur between the pipeline and the connector pipe.
3. Pipelines or ducts should be connected to the fan without loads.
Result:
Pipelines or ducts are connected to the fan.
6.6 Connection of power media
The connection of power media to the fan must be carried out in accordance with current
standards.
6.6.1 Connection to the electricity mains
Risk of electric shock
It is possible to touch live components and cause fatal injuries.
−
Follow the documentation of the electric motor.
Disconnect the electrical components from the mains supply. The
electrical components include, among others, the main switch, the
power switch and the automatic fuse.
On the duration of the activity the circuits disconnected from the
mains supply should be earthed.
On the duration of the activity the circuits disconnected from the
mains supply should be shorted.
Adjacent live parts must be shielded or isolated.
Place appropriate warning signs.
Ensure that there is no voltage at all in the area of operation.
After performing the activities, proper functioning of the areas
should be ensured so that there are no defects.
After performing the activities, remove any protections (bridges,
