3.10.2 Vibration isolators
Metal vibration isolators are used to set the fan in such a way so as not to expose it to
excessive vibration.
The place of installation of vibration isolators results from the overview drawing.
4 Technical specifications

Dimensions are shown in the figure, and technical specifications in the content of the data
sheet. These documents are a part of delivery.

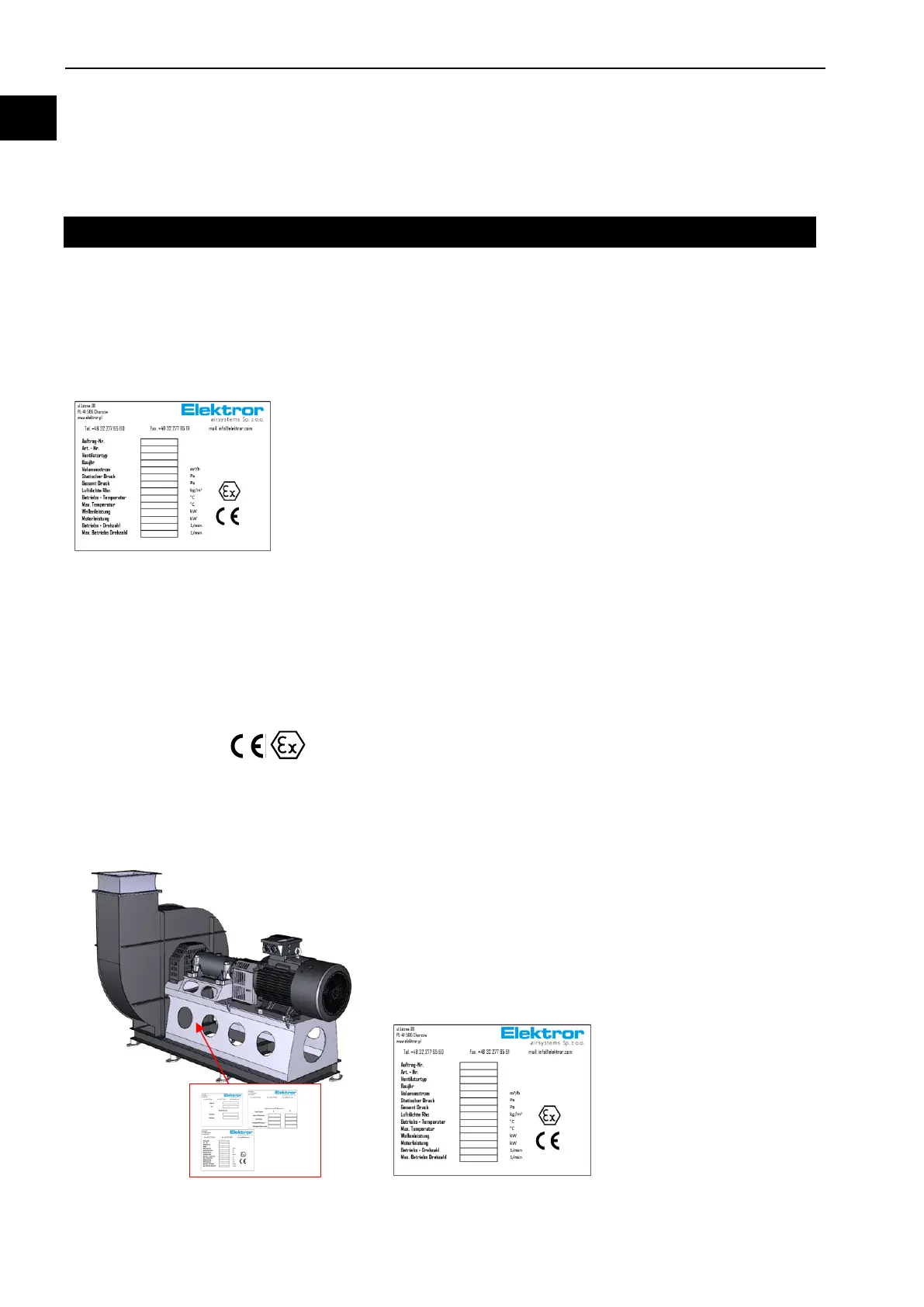

4.1 Nameplate – Identification
(template)
The nameplate is used to identify the fan. The nameplate contains the
following data:
−
Name of manufacturer
−
Manufacturer's address
−
Serial number
−
Year of manufacture
−
Technical specifications
− CE marking
4.1.1 Marking according to Directive 2014/34/EU
The fan was manufactured according to the provisions of Directive 2014/34/EU. There is a
second nameplate containing the following d
ata under the identification plate:
−
Name of manufacturer
−
Manufacturer's address
−
Marking (e.g. II 2G IIA T3) according to Directive 2014/34/EU.
−
Fan number
4.1.2 Markings on the fan
Location of the nameplates
1 – Nameplate
2
– Marking according to ATEX
3
– Lubrication information plates (lubrication intervals)
Location of the nameplate on the left side (as seen from
the engine).
Nameplate
