Mounting the fan on a steel structure using spring vibration silencers
5. Spring vibration silencers should be connected with the steel structure with hexagon bolts.
The correct tightening torques in chapter 11.1 "Tightening torques for fastening bolts" must be
observed.
6. The fan should be carefully placed on the spring damping elements.
When fitting the fan, place the threaded pins in the fan openings.
7. The fan should be levelled.
8. Fasten the fan with hexagon bolts.
The correct tightening torques in chapter 11.1 "Tightening torques for fastening bolts" must be
observed.
Result:
The fan is mounted and installed at the destination using spring damping elements.
Mounting the fan on a concrete foundation using vibration silencer (with mounting plates)
9. Vibration damping elements should be connected with the
mounting plates using bolts.
The correct tightening torques in chapter 11.1 "Tightening torques for
fastening bolts" must be observed.
10. The fan should be carefully placed on the spring damping
elements on a concrete foundation.
11. The fan should be levelled. If necessary, use sheet metal spacers.
12. Drill holes in the foundations corresponding to the holes in the
mounting plates.

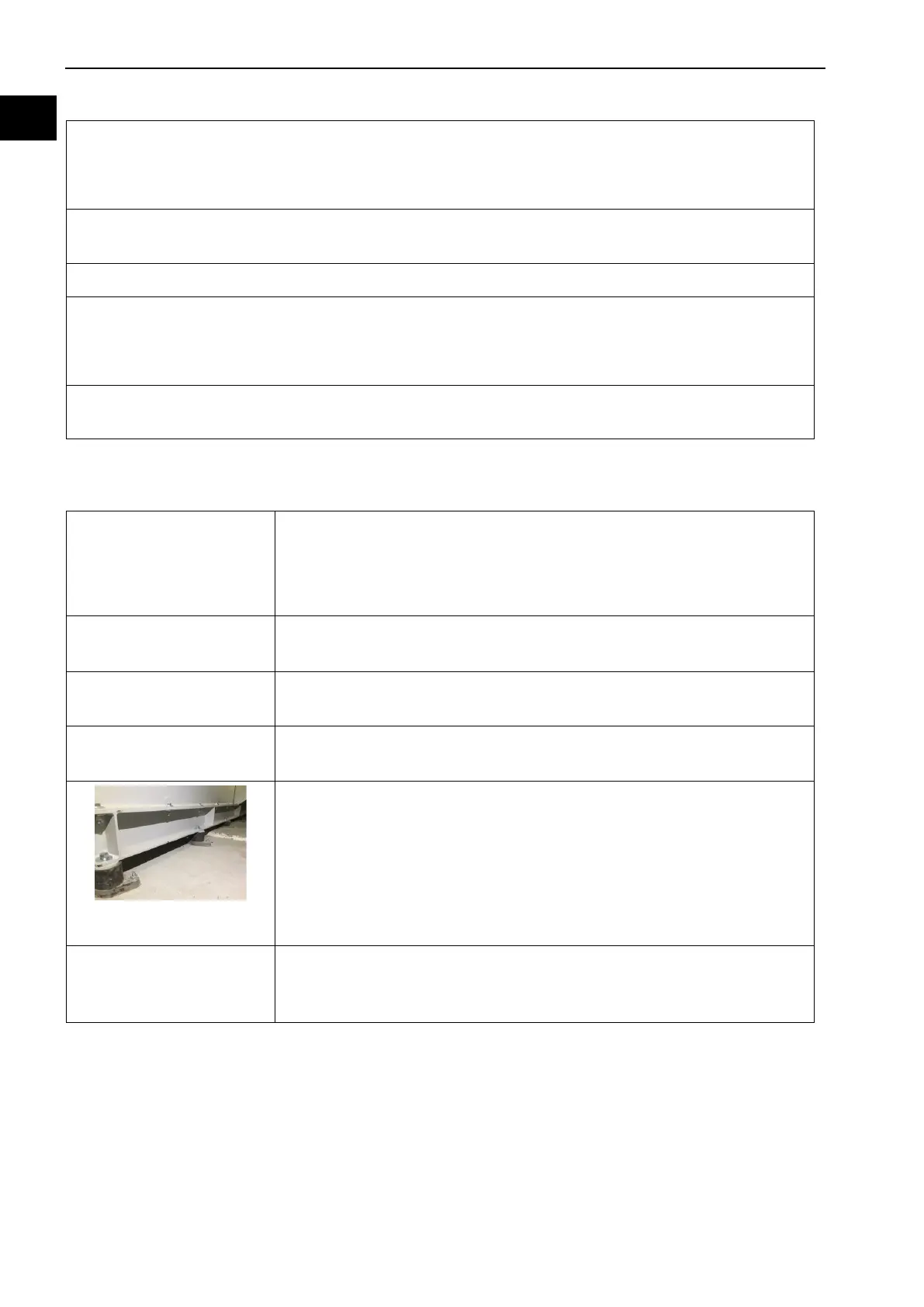

Mounting the fan on a
concrete foundation
13. Fasten the fan using appropriate fixing material (e.g. anchors,
screws) on a concrete foundation.
The correct tightening torques in chapter 11.1 "Tightening torques for
fastening bolts" must be observed.
Result:
The fan is mounted and installed at the destination using damping
elements.
