3.7 Cleaning machine front side description

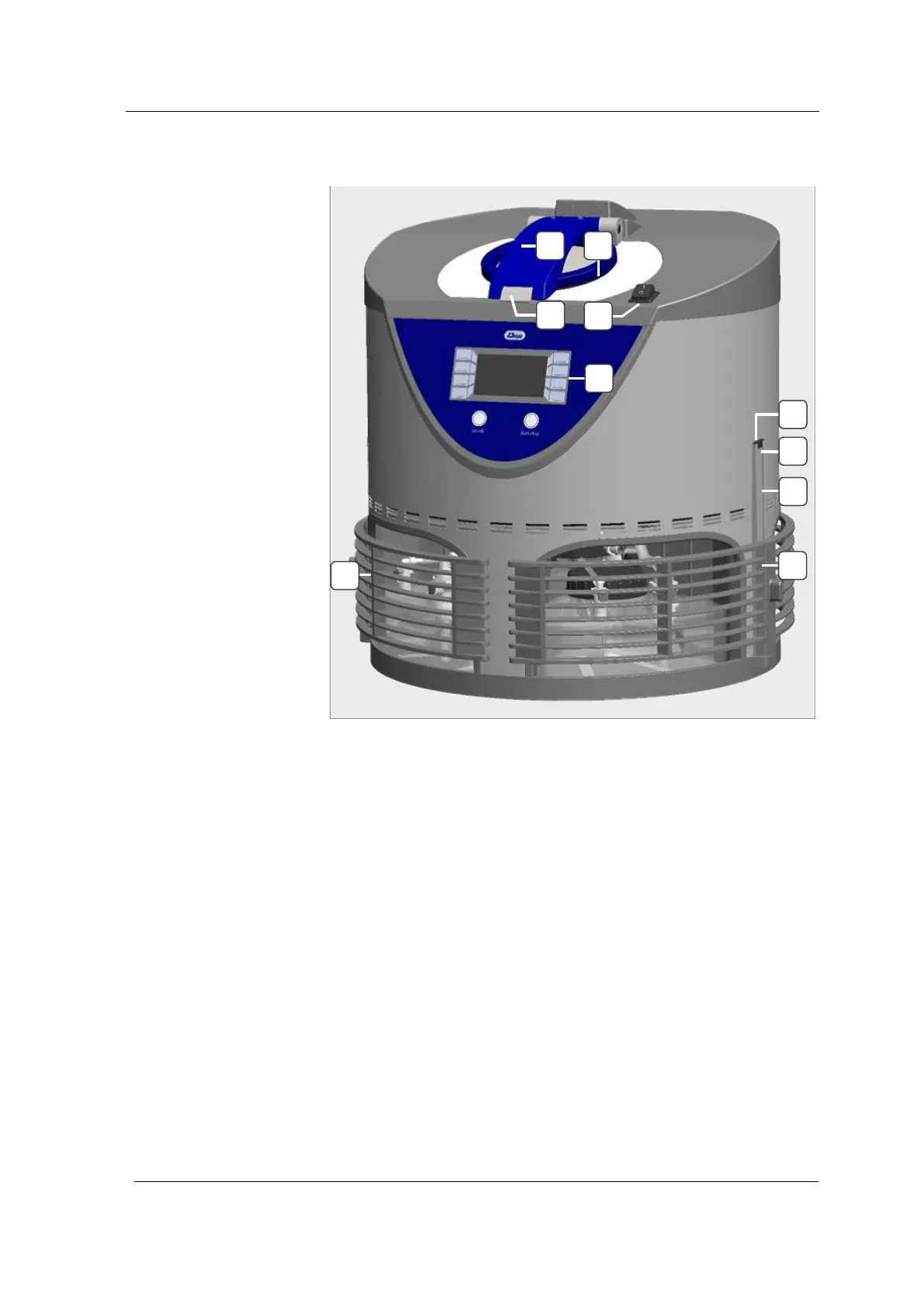

Fig. 3.7.1 View of front side
Cleaning chamber cover with snap lock (A1) for engaging the
cover
Main switch for switching on the cleaning machine
Control panel with display Detail description Chapter 3.9
Protective grille above media tanks with cleaning and
rinsing liquid - can be moved up for removal of the media
tanks
Guide rail for media tanks protective grille The protective
grille is inserted here by the user before the first start-up
Screw as stop for the top end position when moving the
protective grille upwards. The screw must be unscrewed
by approx. 2 turns after attaching the protective grilles.
Plastic cap must be plugged to the end of the guiding rail
Screw for venting the cleaning chamber in the event of a
fault (see Chapter 11.3.2)
A
B
C
D
E
F
G
H
A
A1
B
C
D
E
F
G
D
H
