3.8 Cleaning machine rear side description

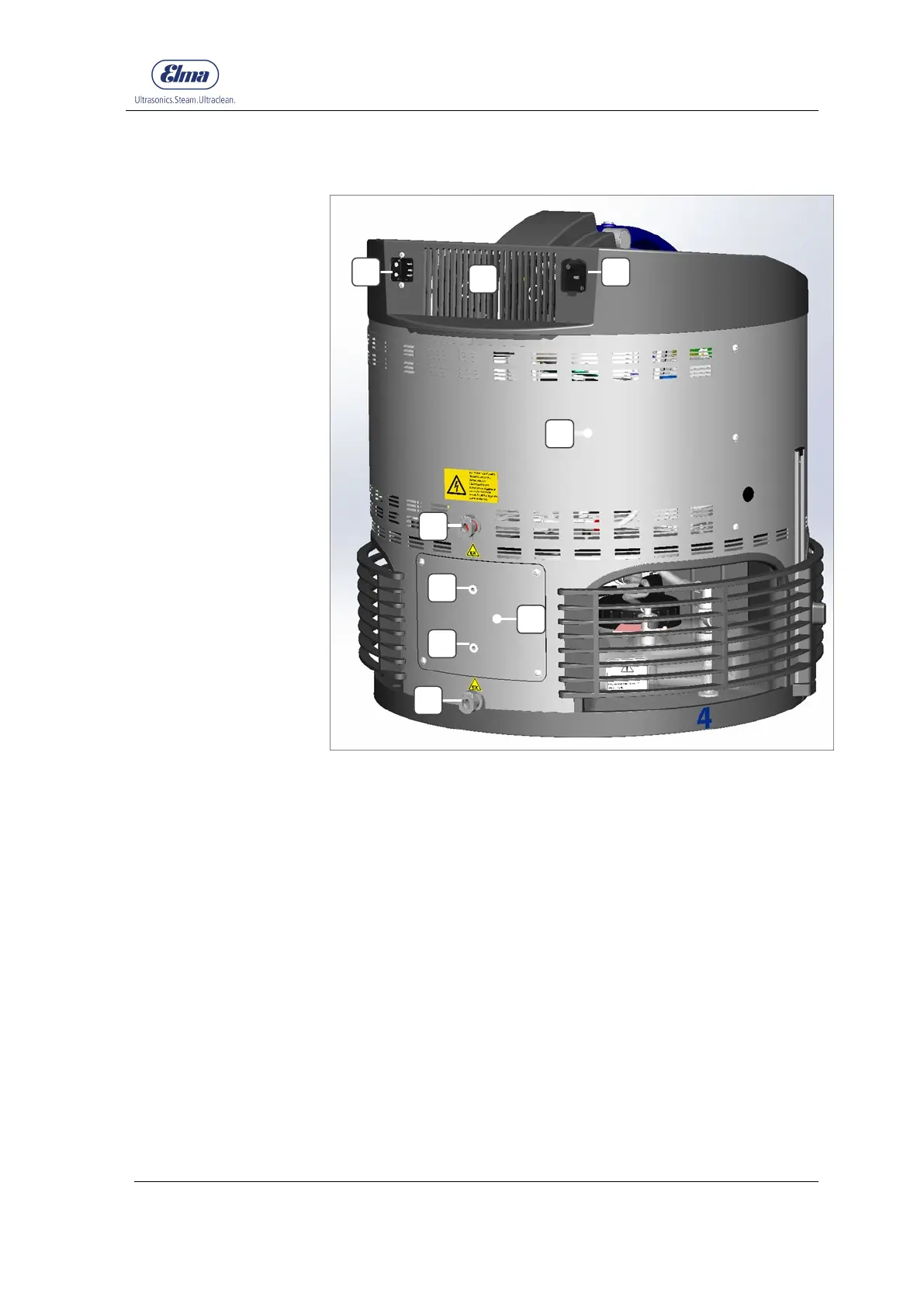

Fig. 3.8.1 View of rear side
Connection for mains cable and slot for fuse
USB connection
Fan openings must be freely accessible for the necessary
ventilation and cooling of the cleaning machine
Service opening "cleaning machine"
Connection for venting the cleaning chamber Instructions for
use of the Elma exhaust air tube (included in the scope of
delivery) or with the Elma activated carbon unit (optional
accessory) (Chapter 4.3 Connecting activated carbon unit or
exhaust air tubes)
Connection for venting the media tanks
Connection instructions for use of the Elma exhaust air tube or
connection with Elma activated carbon unit (Chapter 4.3
Connecting activated carbon unit or exhaust air tubes)
Service opening "deflagration protection"
Fastening possibility for the exhaust air tubes
A
B
C
D
E
F
G
H
C
D
E
F
B A
H
H
G
