3.12 Cleaning chamber description

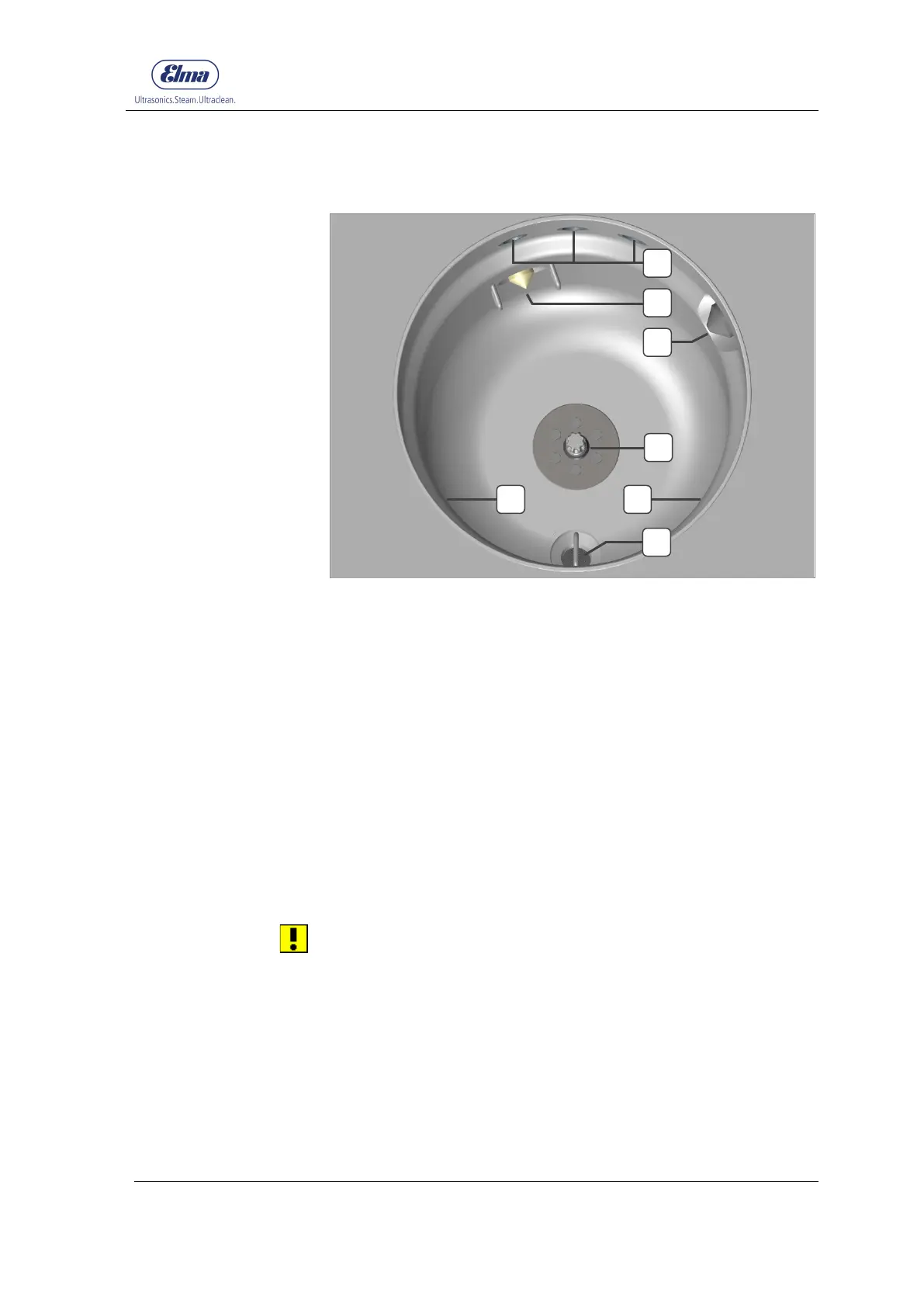

Fig. 3.12.1 View of cleaning chamber
Ventilation openings
Filling level sensor optical Work level with 2 guard rails
Filling level sensor Overfilling level
Cleaning basket holder
Sieve insert (mesh size 0.36 mm) for collecting lost precision
parts and coarse particles when draining the cleaning / rinsing
liquid from the cleaning chamber. The sieve can be removed for
cleaning.
When reinstalling the sieve, it must be screwed in carefully as
far as the stop. Check freedom of movement of the cleaning
basket afterwards (collision hazard if the sieve insert has not
been screwed in correctly).
Never operate cleaning machine without sieve insert. Danger of
damage in the cleaning machine!
Heating areas / radiating surfaces of the 2 heaters with radiant
heat for the drying process.
