3.13 Media tanks description

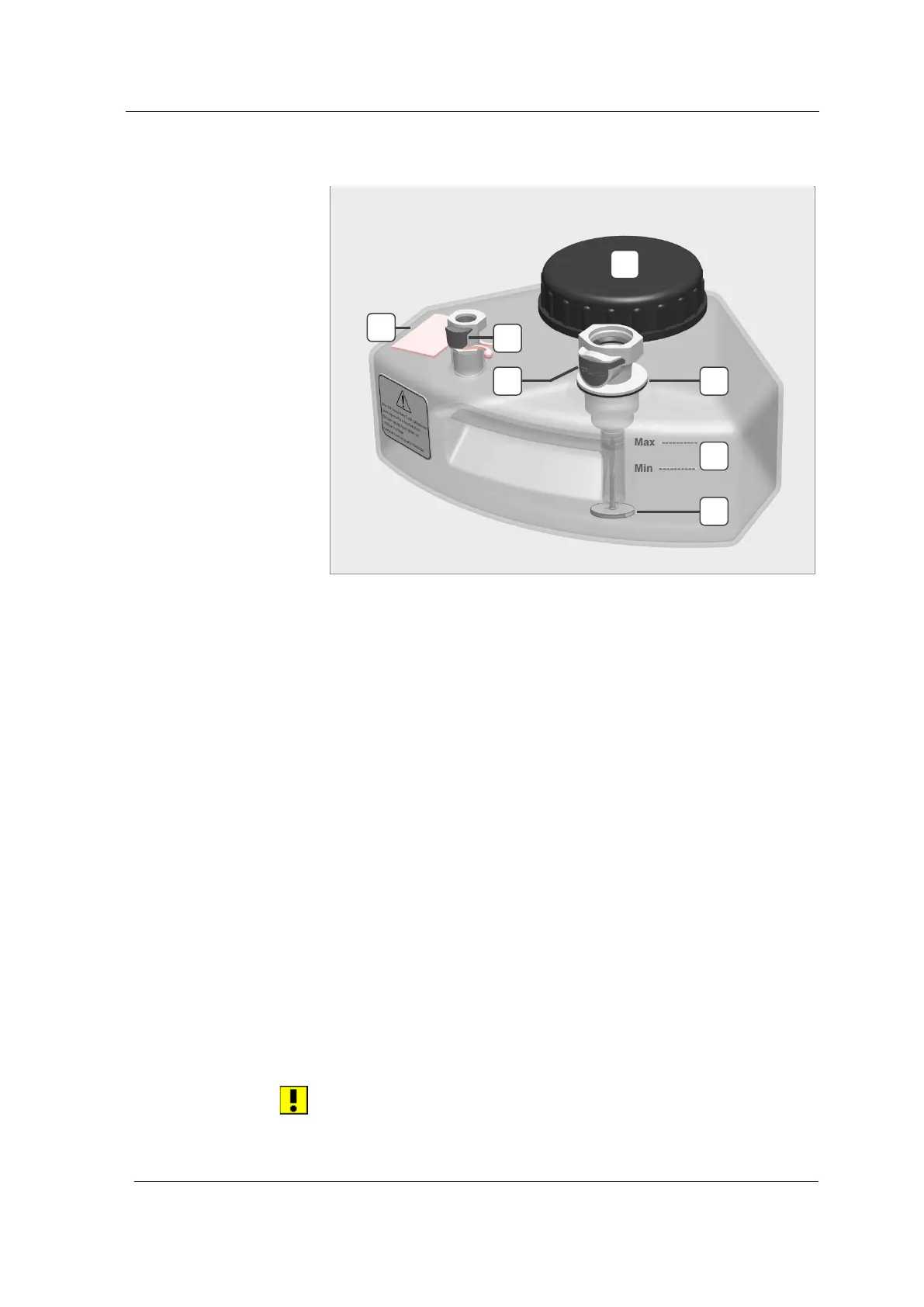

Fig. 3.13.2 Media tanks
Screw cap
Media tank (small) venting quick-action coupling with shut-
off valve
Media tank (large) quick-action coupling media inlet and
outlet with shut-off valve
Filling level marking
Label for marking the media tank
Seal
Suction filter (see Chapter 3.13.1)
3.13.1 Suction filter functionality
During suction of the medium, the medium must flow through
the suction filter (Fig. 3.13.1.G) (in this way, only filtered
medium reaches the cleaning chamber).
When draining the medium, the suction filter automatically sinks
to the bottom of the tank so that unfiltered medium flows into
the media tank.
The cleaned soiling thus gets into the canister unhindered and
is kept in the media tank during the next filling of the cleaning
chamber.
Observe the cleaning and replacement intervals
(see Chapter 9.2.2).
A
B
C
D
E
F
G
ATTENTION
A
D
F
G
B
C
E
