Before the initial commissioning
24
BA_Elmasolvex_VA_EN_Vers.05.2018 © Elma Schmidbauer GmbH
Danger of damage to the cleaning machine. The ends of the
exhaust air tubes (max. length 5 m) must be freely accessible to
a ventilated area and must not be immersed in water!
The Elma activated carbon unit can also be connected to the
exhaust air tubes if there is no on site access to the outside or if
a permitted extraction unit was not installed.
When using the activated carbon unit, explosion protection is
guaranteed provided the specified replacement intervals (see
Chapter 14.3.2) are complied with. However, unpleasant odours
cannot be completely ruled out.
Only use the activated carbon unit from the Elma accessories.
1. Connect the 2 exhaust air tubes (included in the scope of
delivery) to the respective connections Fig. 4.3.1.A and
Fig. 4.3.1.B. In doing so, the connection coupling must
audibly engage in each case!
In order to prevent mix-ups for the connections, this
coupling has a red marking ring and also the associated
connection at the activated carbon unit.
2. Fix the exhaust air tubes using the fixing clamps provided
for them. Fig. 4.3.1.C.
3. It is possible to fix the exhaust air tubes using the fastening
material (included in the scope of delivery, Fig. 4.3.1.D,F,G).

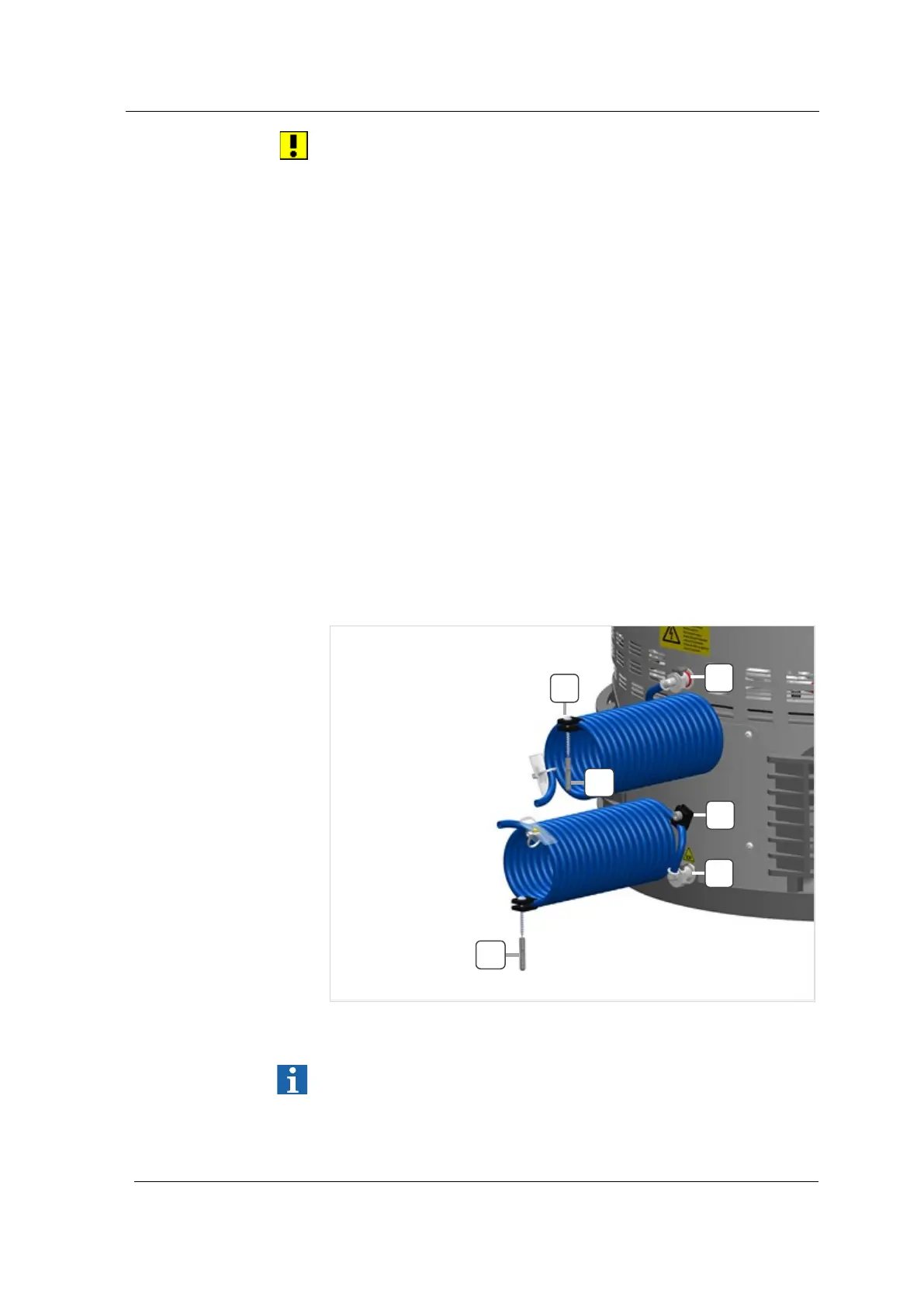

Fig. 4.3.1 Ventilation connections
For further information about connection, handling and servicing
of the activated carbon unit see Chapter 14.
ATTENTION
Connecting activated
carbon unit variant
A
B
C
D
E
F
