Elma Elmasolvex VA - Page 29

Before the initial commissioning
© Elma Schmidbauer GmbH BA_Elmasolvex_VA_EN_Vers.05.2018
29

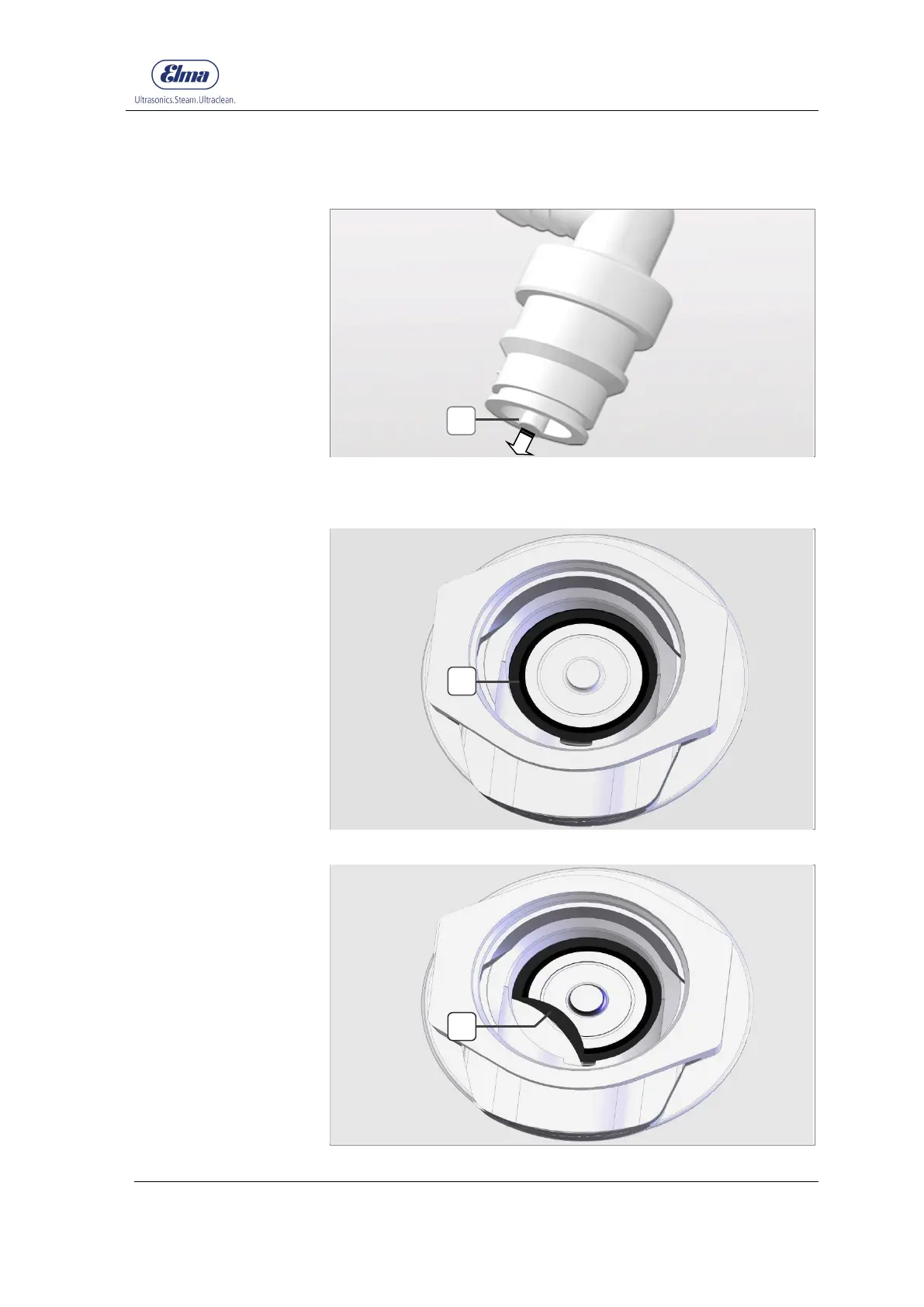

The shut-off valve is moveable. The nipple of the shut-off valve
(Fig. 4.4.1.2.J) in the not connected state must protrude over
the edge of the quick coupling.
Fig. 4.4.1.2 Media tube quick coupling "closed"
Check the seal is seated correctly: Fig. 4.4.1.3.H correct
seating. Fig. 4.4.1.4.H incorrect seating!
Fig. 4.4.1.3 Seal OK
Fig. 4.4.1.4 Seal not OK!
Media tube quick
coupling
Checking seal in the
quick coupling of the
media tube
J
H
H
