2.5 Digital Outputs and Inputs.
ElNet GR/PQ
Energy Powermeter & Power Quality
Analyzer has as default 3 Digital Output and 5 Digital Input
connections at its back side (additional IO can be implemented by using
additional external modules).
Digital Output:
The Digital Output of the GR/PQ can be used to transmit pulses of
energy to external BMS controller (chapter 4.6) or to close contact upon
alarm (chapter 5.4.3) which can be defined in the GR/PQ (same output
cannot be used for both simultaneously). The Digital Out closes contact
of Relay between pins 1/2/3 to 4c, the maximum load is 1 Amp.
Digital Inputs:
In order to change the status of the Digital Inputs of the GR/PQ a 220
VAC contact must be provided. The indication voltage should be
supplied from one of the measured phases. The digital inputs status can
be monitored by communication.

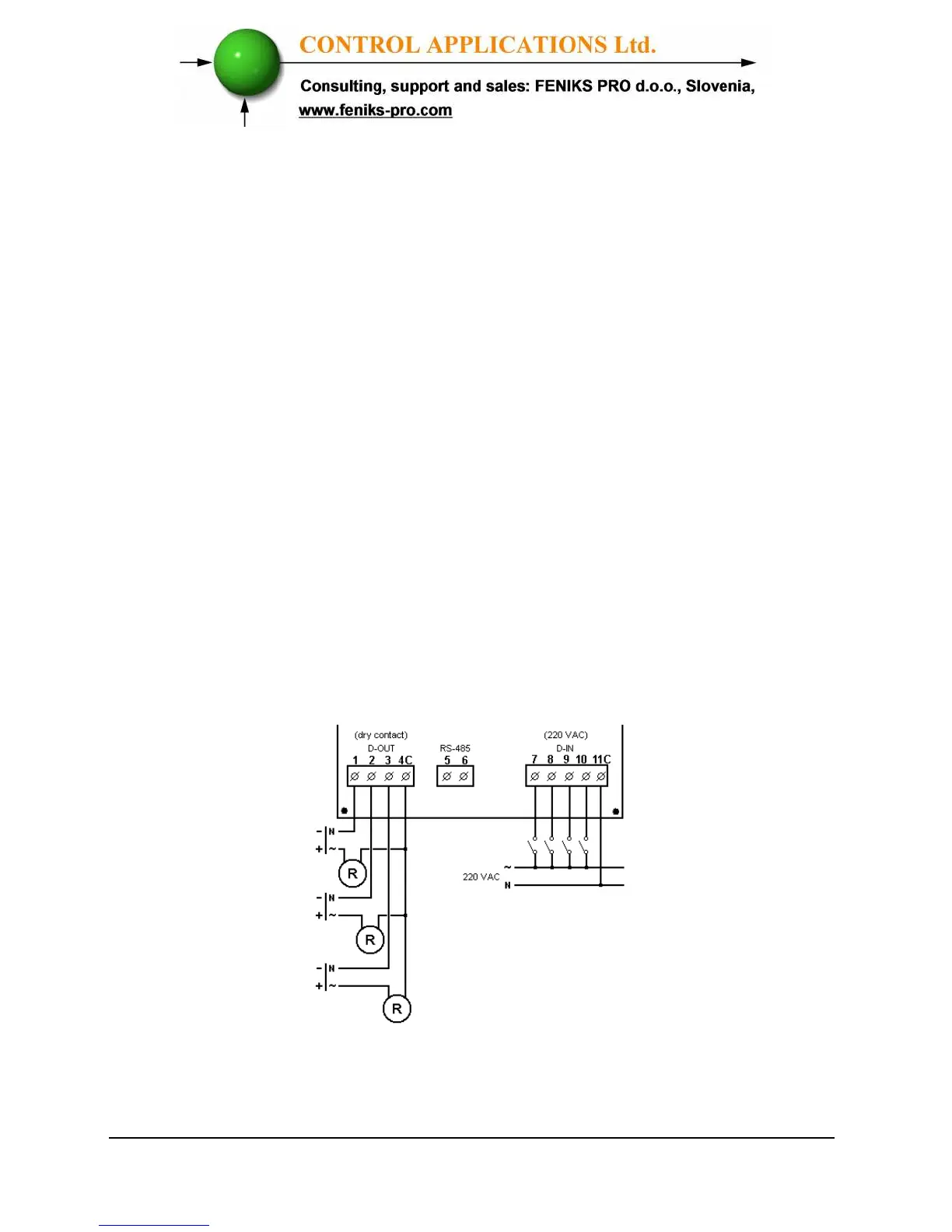

Figure 2.9 Digital In \ Digital Out wiring example
