4.8 Delta/Star Electrical network definition
The ElNet GR/PQ can be installed in two types of electrical
networks: DELTA – a system without neutral line.
STAR – a system with neutral line.
In order to change the type of the electrical network definition in
the Elnet GR/PQ, see section 4.1 for instructions how to arrive at
the Technical Menu.
1 From Technical Menu scroll to "Set Connections" and Click
“ENTER”.
2 The Connection screen appears.

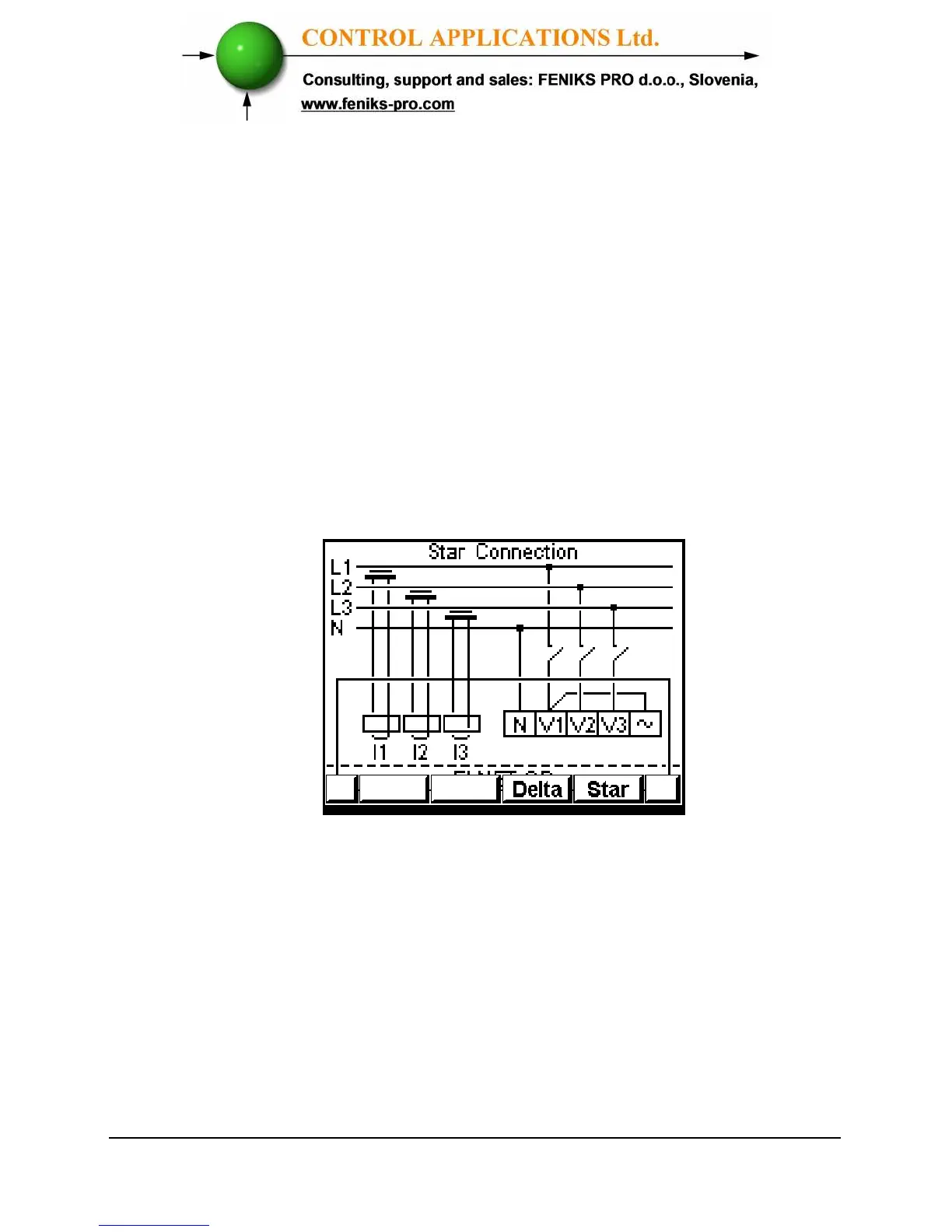

Figure 4.13 Delta/Star Connection
3 Use “F3”/ "F4" in order to change the connection type.
When you are using "DELTA" networks the currents
(line currents) and the voltages (between phases) are
not in the same phase therefore part of the
measurements are not applicable and part of the
display screens are not applicable.
