49
6 The Current & Voltage table screen appears.

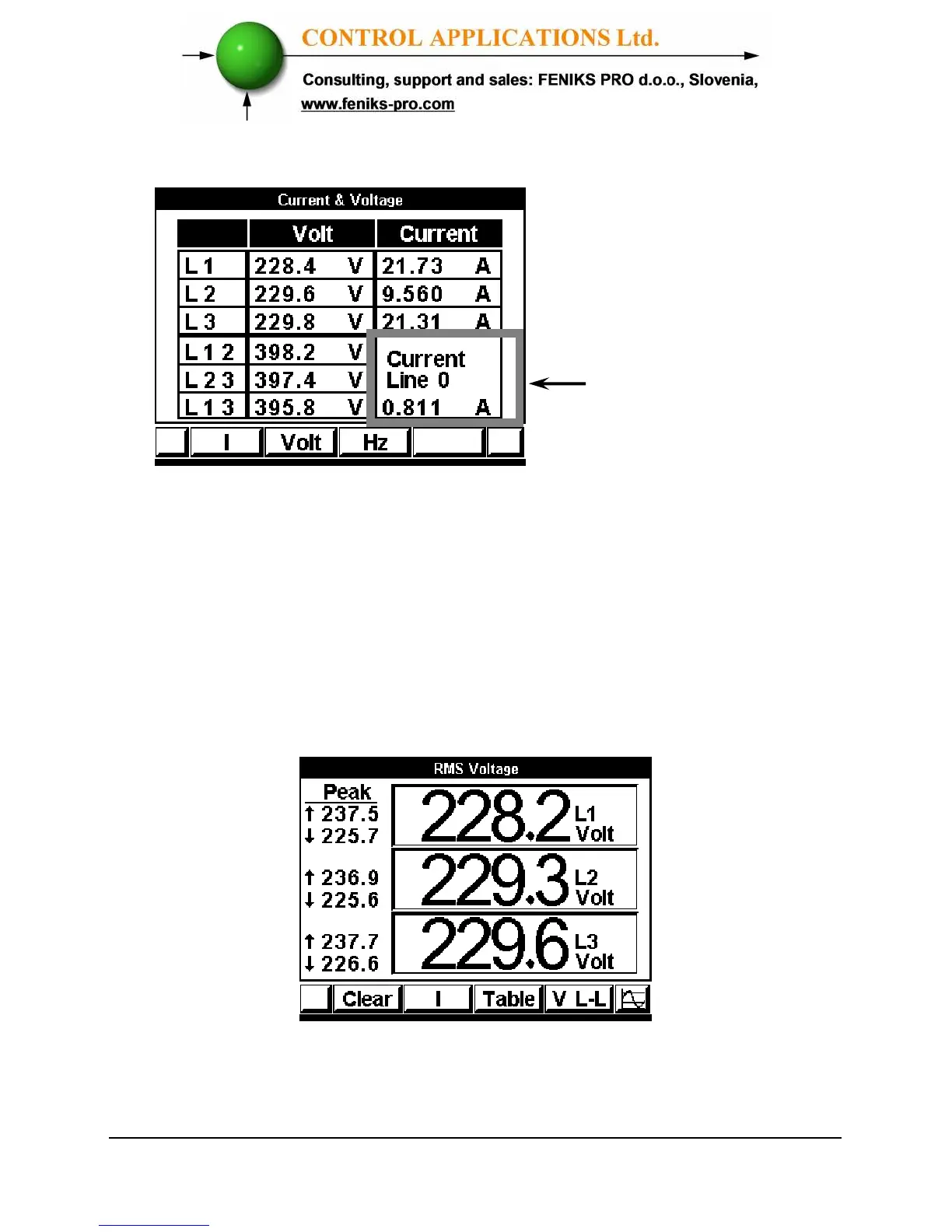

Figure 5.4. Combined Displays
5.4 Voltage for 3 Phases
To display Voltage for all 3 Phases and across Phases
1 From the Main Menu scroll to Current & Voltage.
2 Click “Enter” The Current & Voltage screen
appears.
3 Click “F2” - “VOLT”, The Voltage screen appears
Figure 5.5. Voltage Displays
Current in Neutral line
