ELNet GR/PQ - Current THD,TDD,KF

63
5.11.5 Current THD,TDD,KF
1 From Main Menu scroll to Power Quality Display
and Click “Enter”.
2 Scroll to THD, TDD, KF Current.
3 Click “Enter“, the Current, THD, TDD, KF Table
screens appears.

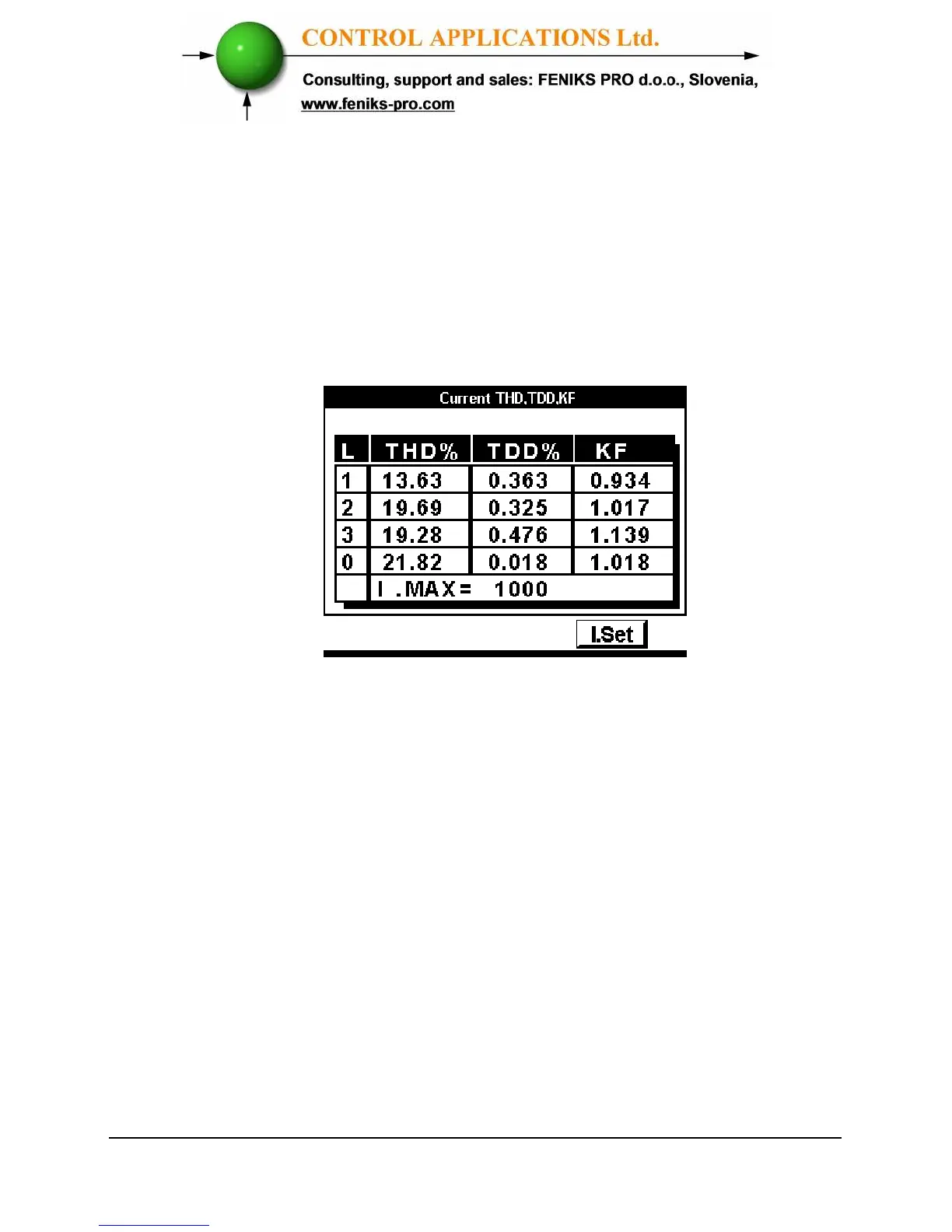

Figure 5.21. Current THD, TDD, KF
4 In order to enable the system to calculate properly the
TDD value, user should set the max line current value
by using “F4”.
