ELNet GR/PQ - Overall Power Factor

55
3 Click “F4” – “PF” The Power Factor for each Line
screen appears.

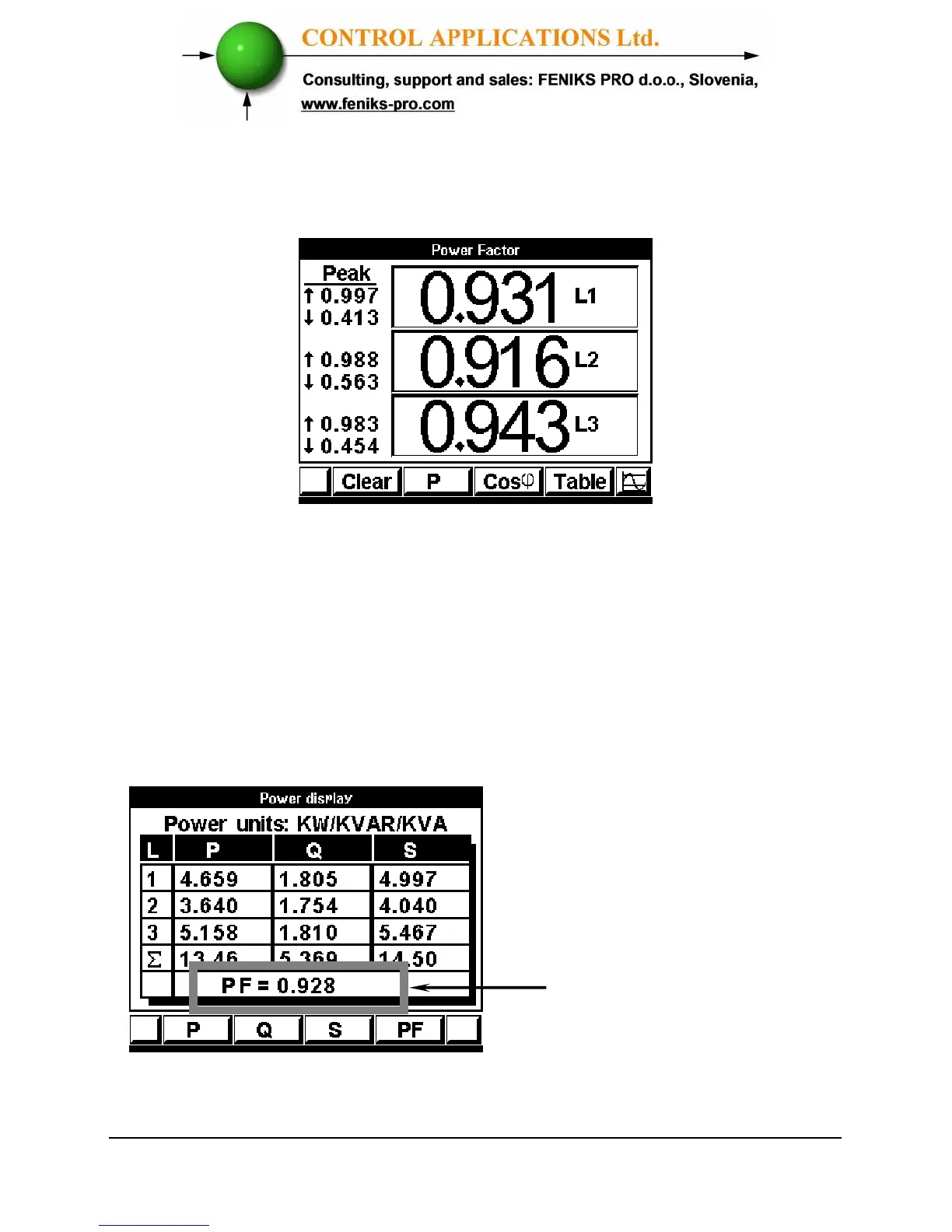

Figure 5.10. Power Factor for each line
5.9 Overall Power Factor
To display Overall Power Factor
1 From Main Menu scroll to Power Display
2 Click “Enter” and then click “F4”.
3 The Power Table screen appears.
Figure 5.11. Power Table
Overall Power Factor
