5.11.7 Long PQ event special record
Most of the power quality events as specified in the
EN50160 standard occur in a very short time periods
(less than a second). If a demand to make a special
(not according to EN50160) and long record (several
seconds) exists the following definitions must be
done:
1 Activate the EN50160 mode by repeating the steps
from chapter 5.11.6.
2 Scroll to Long Event Length.
3 Click "Enter", the Long Event Length screen
appears.

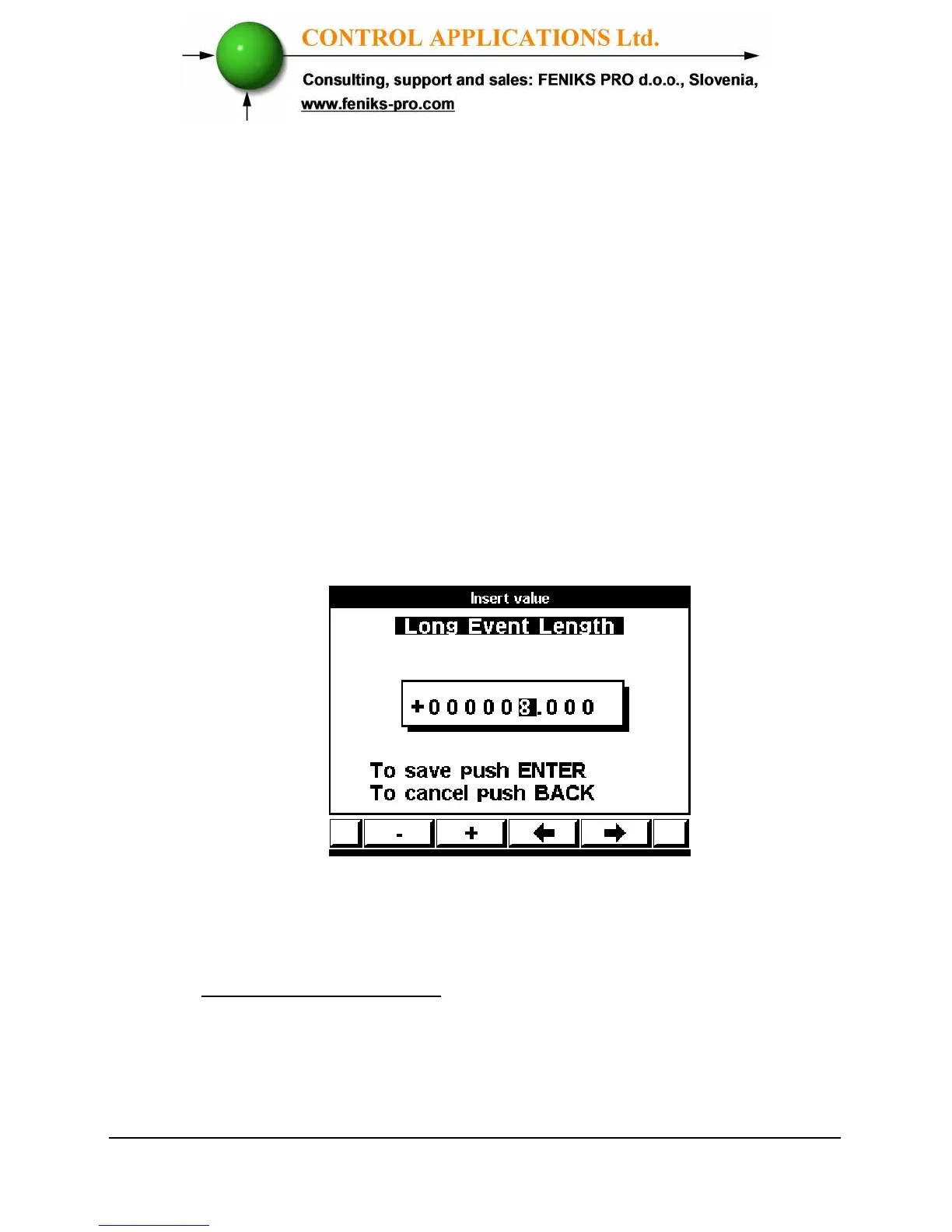

Figure 5.24. Long Event Length
4 In order to set the value in seconds (recommended is
no more than 8 seconds) use button “F3” or “F4” to
move the cursor left or right and Button “F1” or
“F2” to decrease or increase the value + or -.
