ELNet GR/PQ - Active Power for All 3 Phases (P)

50
Table 5-1 Voltage Readings
5.5 Active Power for all 3 Phases (P)
To display Active Power for all 3 phases.
1 From Main Menu scroll to Power Display.
2 Click "Enter” The Active Power screen appears.

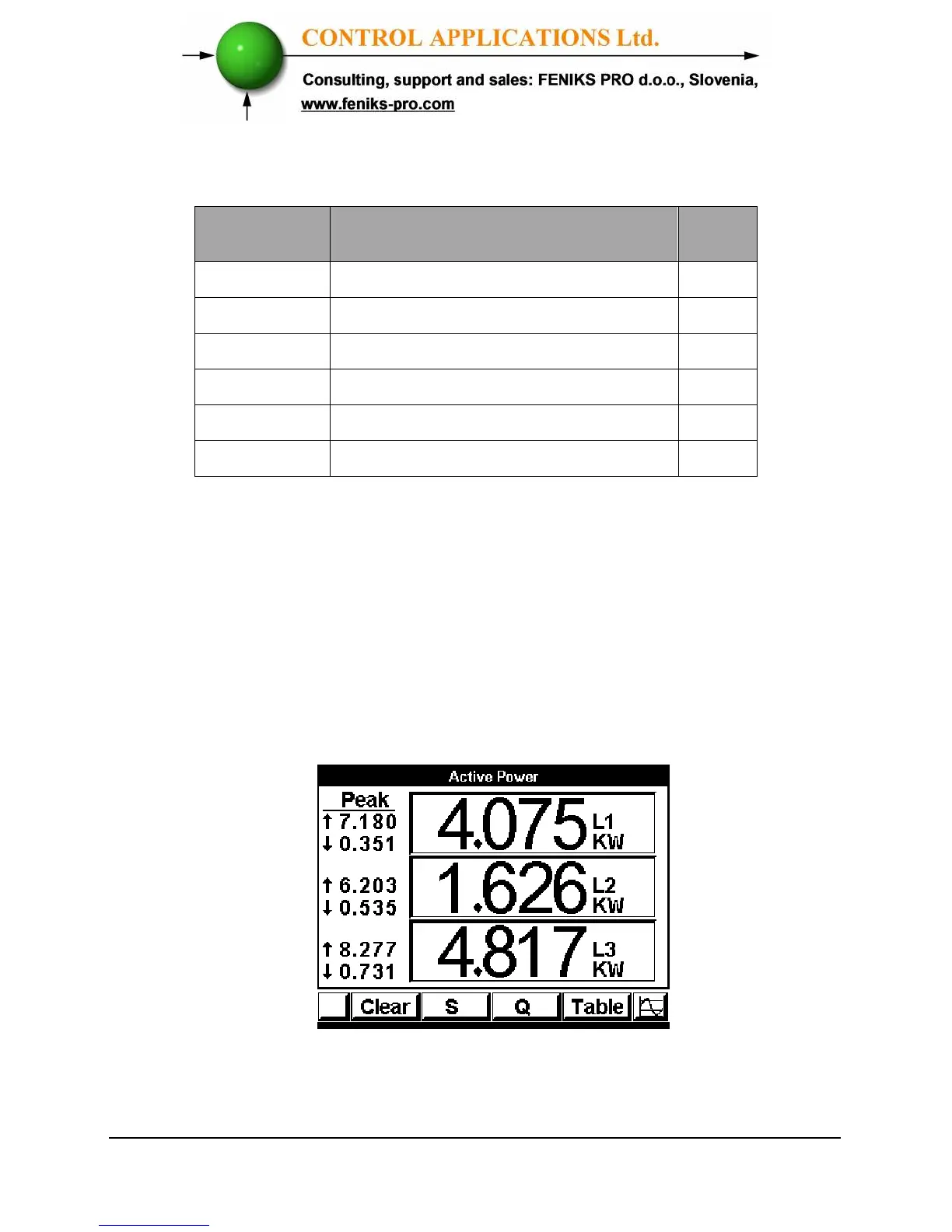

Figure 5.6. Active power
Parameter
Description Units
L1 Voltage from Line1 to Neutral Volts
L2 Voltage from Line2 to Neutral Volts
L3 Voltage from Line3 to Neutral Volts
L12 Voltage across Line1 and Line2
Volts
L23 Voltage across Line2 and Line3
Volts
L13 Voltage across Line1 and Line3
Volts
