5.6 Reactive Power for all 3 Phases (Q)
To display Reactive Power for all 3 phases
1 From Main Menu scroll to Power Display.
2 Click “Enter”, the Active Power screen appears
(Figure 5.5).
3 Click “F3”, the Reactive Power screen appears.

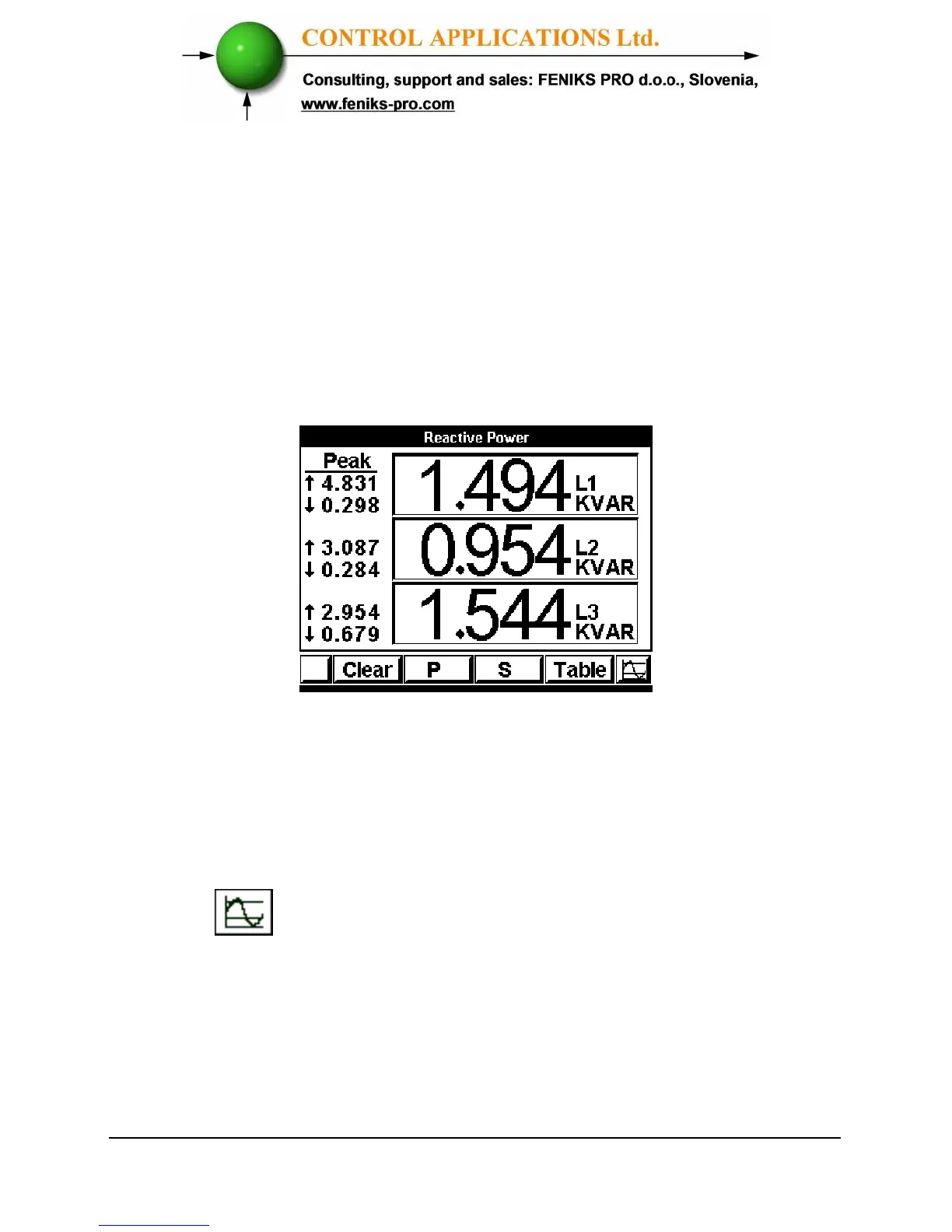

Figure 5.7. Reactive Power
Refer to section 5.4 for description of peaks.
The “CLEAR” button resets the Peak values.
4 In order to view the readings in online graphical
mode press on "Enter" button.
