49
DANGER
Mortal danger from electric shock
Exposed power contacts - High Voltage

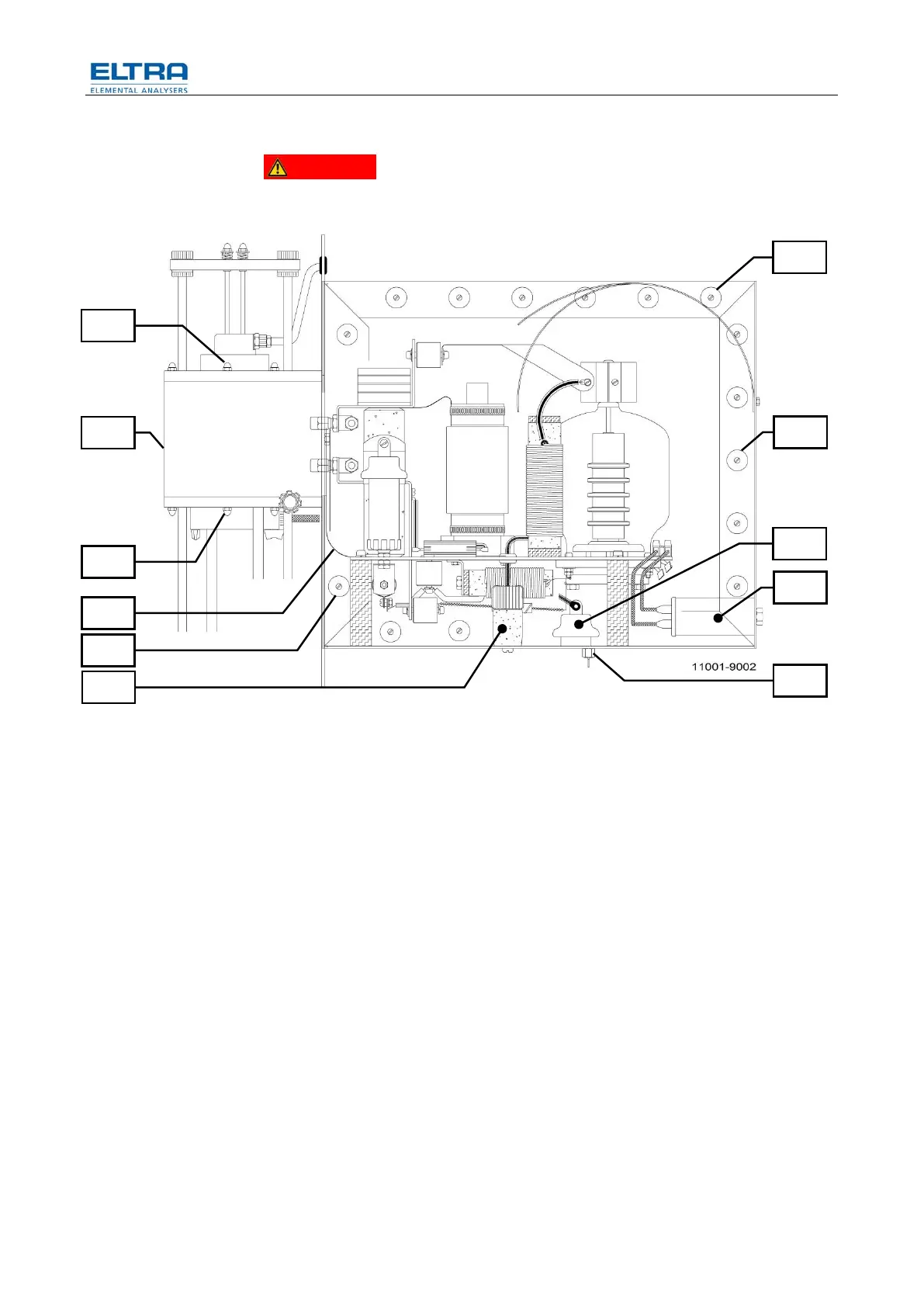

Fig. 20: Draft high frequency generator (1-4-4 + 1-4-5S)
The causes:
The screws (1) are not tightened properly, or not all 22 of them are
screwed in.
The cap nuts (2) are not tightened properly or not all 14 are in place.
The cover (3) does not seal tightly with the plates (4) and (5) or with the
contract straps behind it, on the front panel (6)
One or both filters (7) are not OK
The filter (11) can also be damaged in this way.
When the ground strip (12) is not connected after removal or replacement
of the oscillator the filters (7) will defect.
The capacitor (9) is out of order
The capacitor (10) is out of order. This is however less likely.
In case of failure of this capacitor, most probably the fuses blow.
3
2
2
12
9
10
7
11
1…
1…
1…
