Service
106
Pos: 9.12 /0 020 Über sc hrif ten /ELT RA 1.1 Über sc hri ften /11 I R-s our ce E LTR A @ 6\mod_1369640743211_9.docx @ 42201 @ 2222232444 @ 1
5.6 57BIR-source
Pos: 9.13 /0 010 ELTR A/ 0015 s ervic e_i nstr uc tio ns/C S-800 _Ser vice/ 0025 Ser vic e/039 525 Mo dul IR-source @ 7\mod_1382344471044_9.docx @ 49968 @ 2313333 @ 1

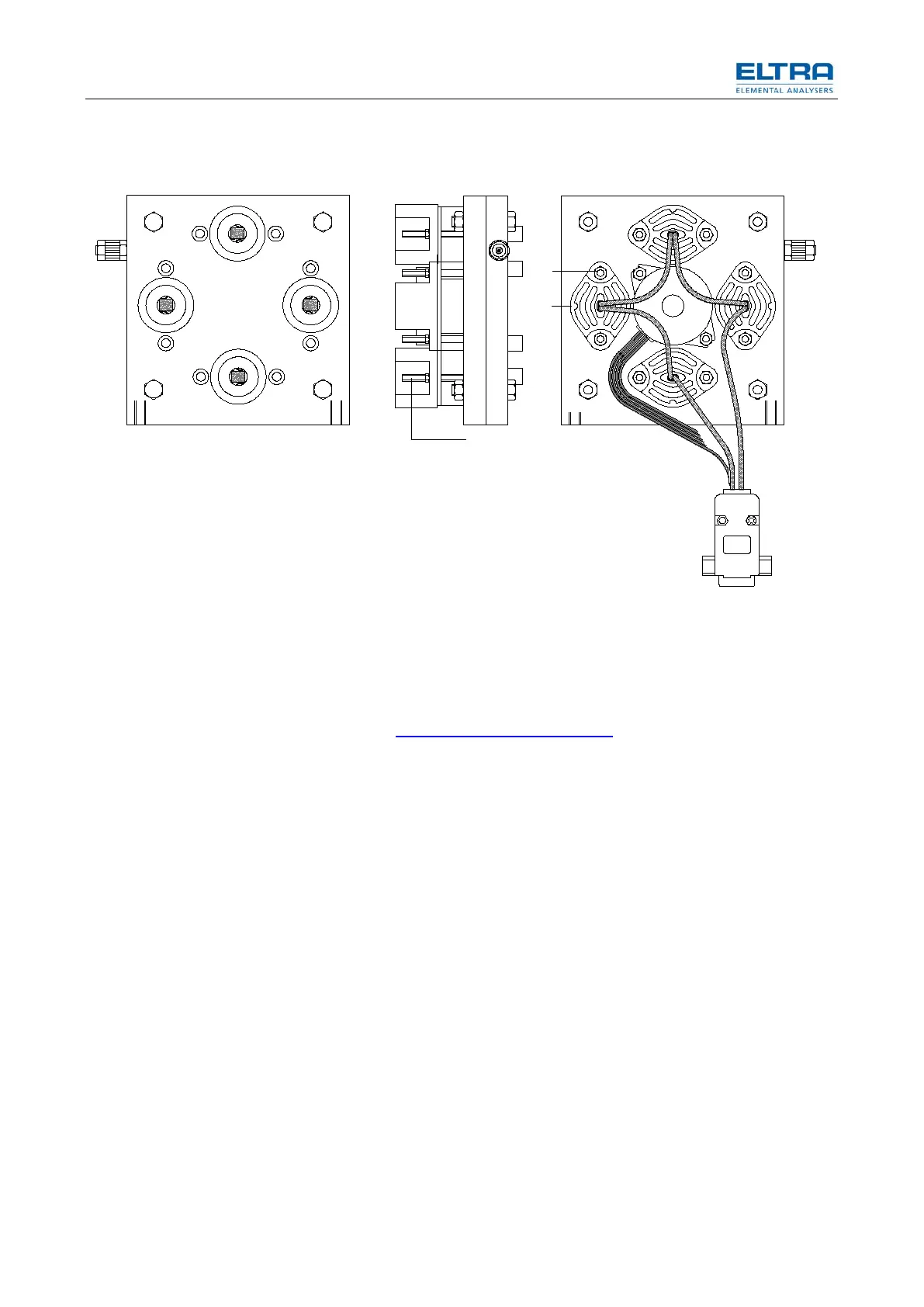

Fig. 37: Infrared source
– The IR sources (2) are fastened with the screws (3)
• To install or removing the IR-source (2), the complete chopper
motor assembly (1), together with the mounted paths and pre-amplifier,
should be removed from the infrared unit.
See chapter IR paths cleaning and replacing
– The chopper motor housing (1) does not need to be unscrewed. Either by
removing or installing the IR-source.
• In order to remove the IR-source, unscrew the nuts (4) with a (5.5 mm
wrench) and counter the screws (3) at the same time.
NOTICE
The position of the IR sources in their housing has to be as shown in the graphics
A and B.
