83
4.2.3
106B

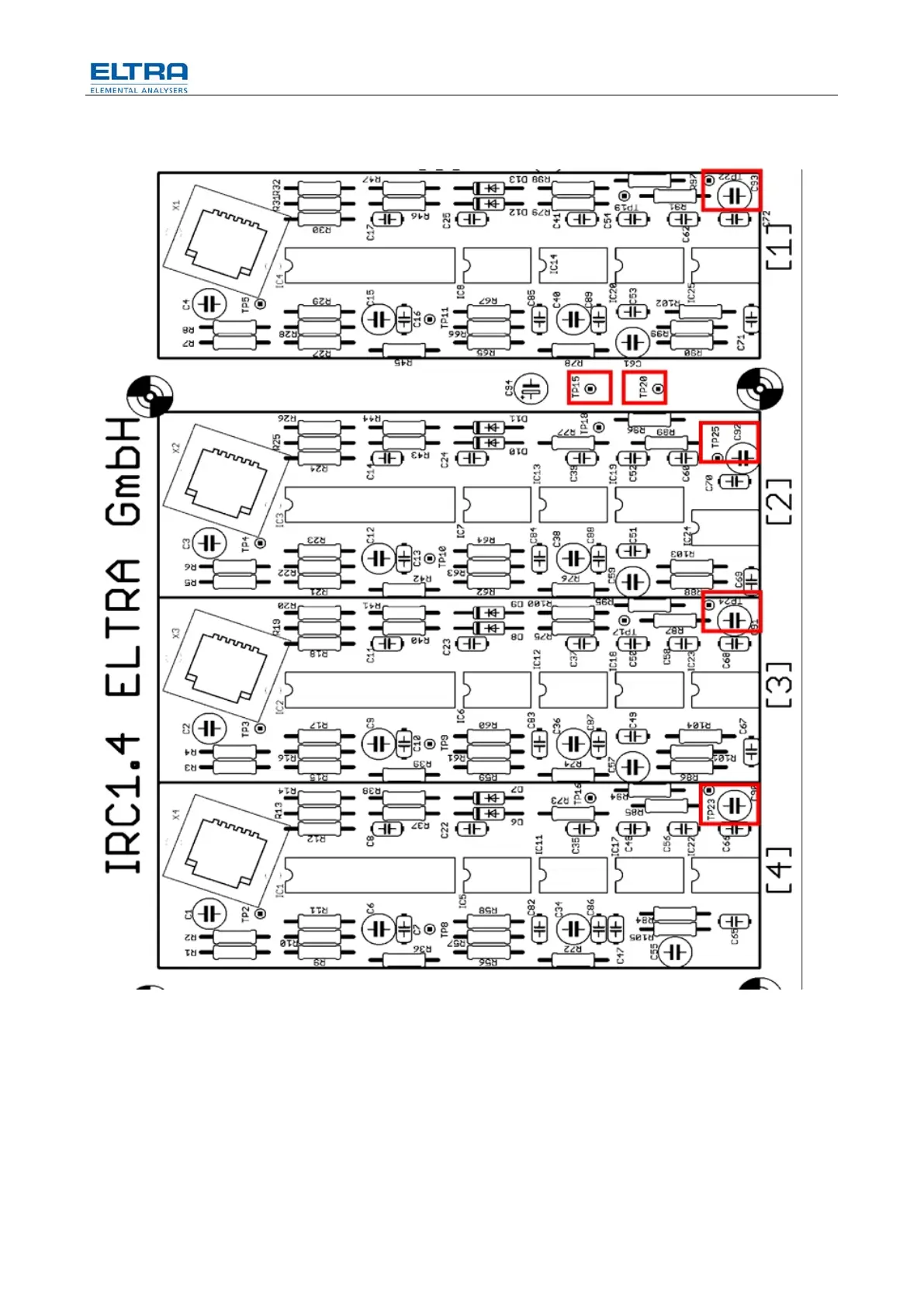

Test points IR
-
ranges
Fig.
30
:
Test points I
R
-
ranges
4.2.3.1
Supply
voltages
for IR signal pro
cessing circuit
TP 15:
+5V refer
ence
TP 20:
Analog G
ND
4.2.3.2
Outputs (base line
s about 8VDC. For
golden paths adjus
t 6VDC)
TP 22:
Output sect
ion [1]
TP 25:
Output sect
ion [2]
TP 24:
Output sect
ion [3]
82
