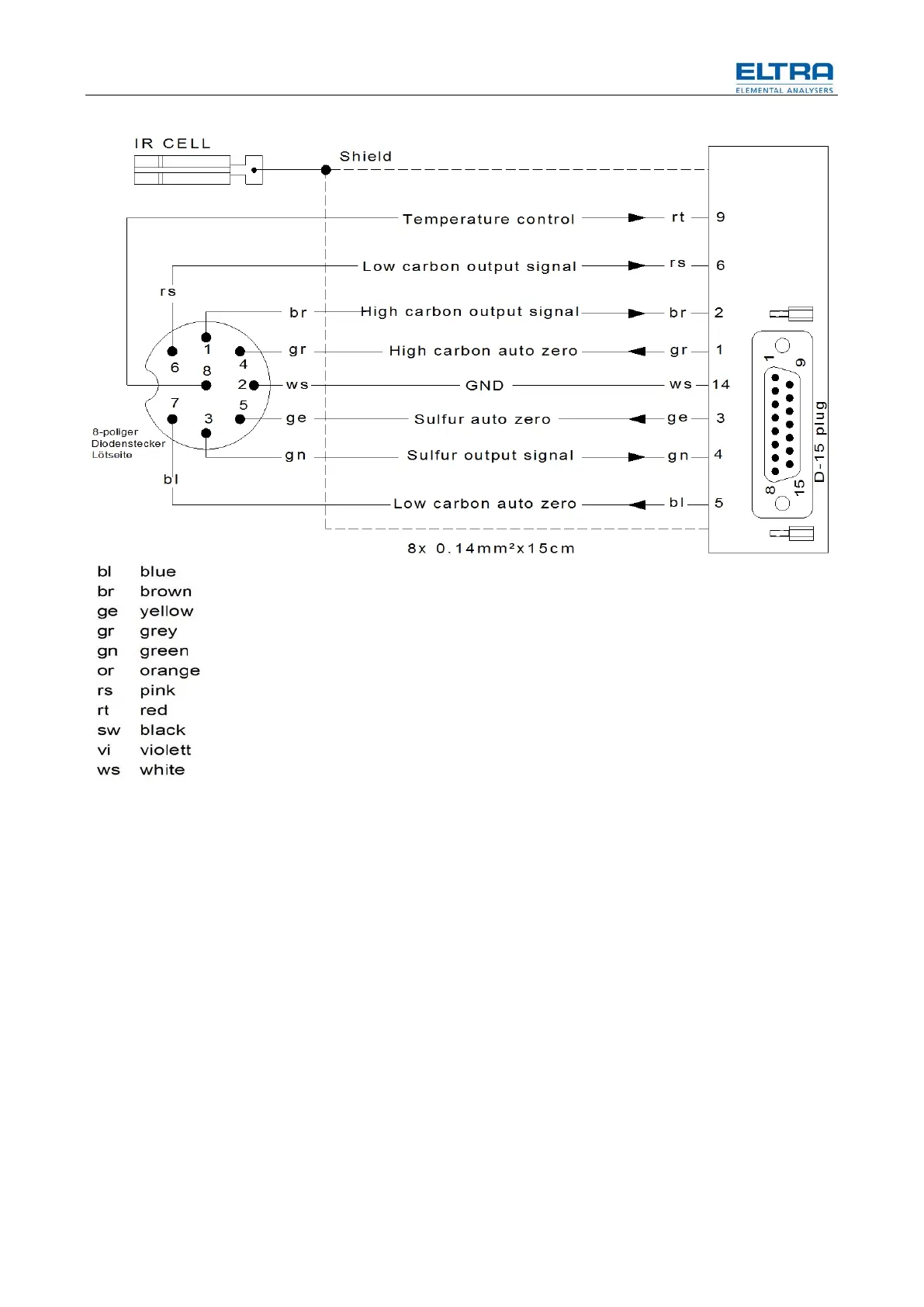

Fig. 11: Draft connector pin assignmen
2.4 11BFrom S/N 1080 xxxx to 1556xxxxx
The CS-800 is equipped with the four IR-cell racks. All electronic boards as well as
the chopper motor are different to those of the previous 3-range IR-cell.
NOTICE
The software version changed to the four IR-ranges!
The gas saving mode is available and selectable in the PC software PLOTCS.
When an analysis has not been carried out for a period of time, the analyzer will
automatically switch to “Gas Conservation Mode“. This effectively means the
carrier gas flow rate is reduced to a minimum, only < allowing a small amount of
oxygen to circulate through the IR-cell etc. The period of time before the Gas
Conservation is activated, can be modified via the PC Software. It is also possible
to have carrier gas flow only during combustion.
