ELTRA CS-800 User Manual

37

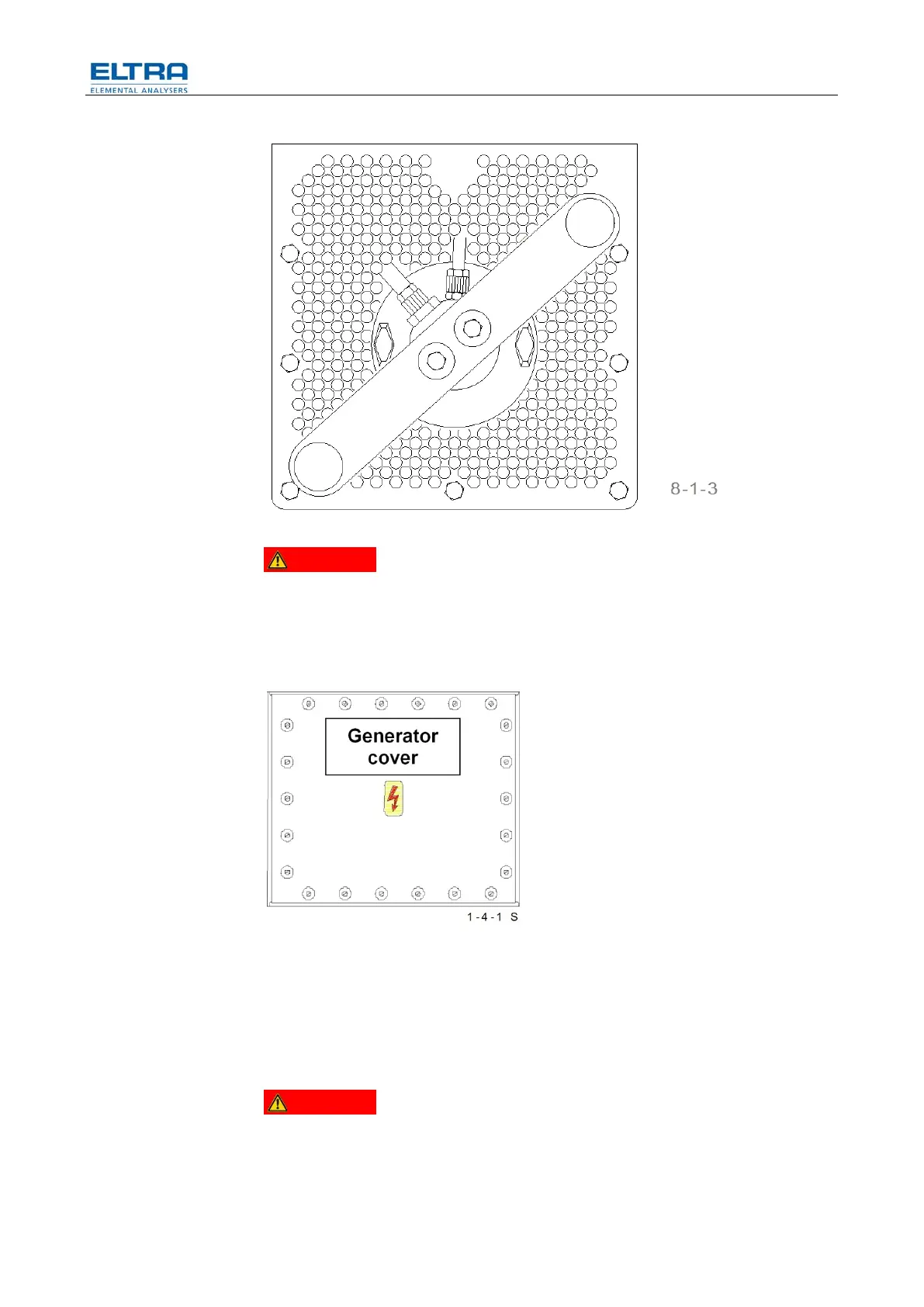

Fig. 15: Air vent holes of the furnace
DANGER
Mortal danger from electric shock
Exposed power contacts - High Voltage
If the light from the filament is not visible, then remove the cover from the generator
section, in order to see the tube.
Fig. 16: Generator Cover
3.4.7.3 If the filament of the generator tube doesn’t glow
Check the voltage of the filament, on the transformer, there should be 10 V AC on
the secondary. If not, then measure 220 V AC on the primary, leads 2-3.
NOTICE
Set the power switch to pos. 1 before removing the tube, although it would be best
to completely turn off the device and unplug the power cord.
DANGER
Mortal danger from electric shock
Exposed power contacts - High Voltage
Before touching any components or wiring, make sure the capacitors are
discharged.
